GLT500 0-200M Submersible RS485 4-20mA Analog Water Level Sensor
♦GLT500 series submersible level sensors provide continuous liquid level measurement by sensing the hydrostatic pressure produced by the height of liquid above the sensor.
The GLT500 has a slim 27-mm diameter housing and a ported bullet nose cap for protection of the sensor diaphragm,and standard IP68 proof. The shielded cable with atmospheric vent tube. 316 stainless steel non-fouling protective housing, and providing a 4-20 mA and others output signal such as RS485, 0-5V and so on.
♦ Function
The PU cable can measure diesel fuel, and the PTFE cable can measure gasoline.
| Measurement Range | 0...1…200mH2O | |
| Pressure type | Gauge Absolute |
|
| accuracy | ±0.25%F.S, ±0.5%F.S | |
| Stability | 0.2%F.S | |
| Material | Probe:stainless steel Housing:304/316L /Titanium alloy | |
| Signal output | 4~20mA 0/1~5VDC 0~10VDC 0.5-4.5VDC RS485 80mv | |
| Power supply | 12~36VDC 5VDC | |
| protection | IP68 | |
Compensation temperature |
-10~70℃ |
Detailed Image

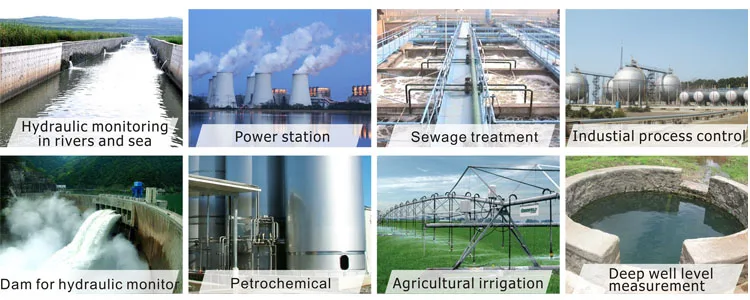

Application
Accessories you may need

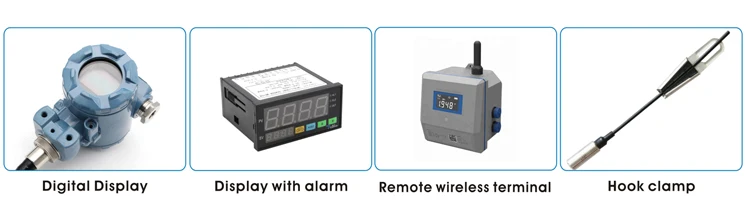

Accessories include a remote wireless terminal , 2800 explosion proof display,GPY118 display controller and a hook clamp for cable fixing.

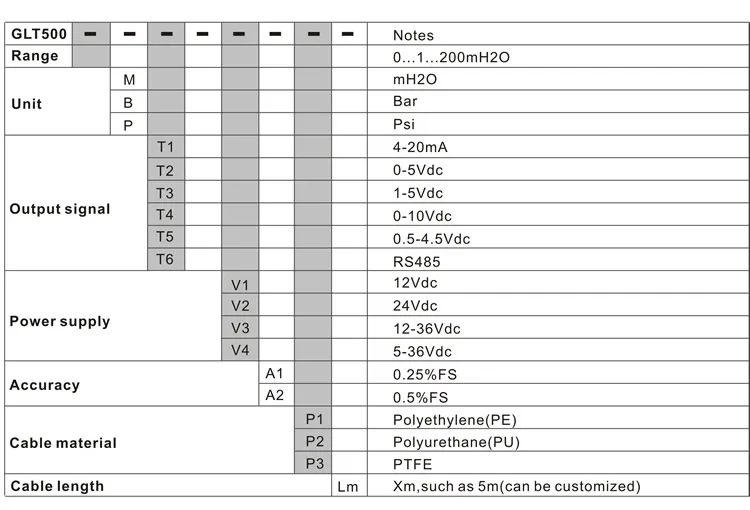

Ordering Guide

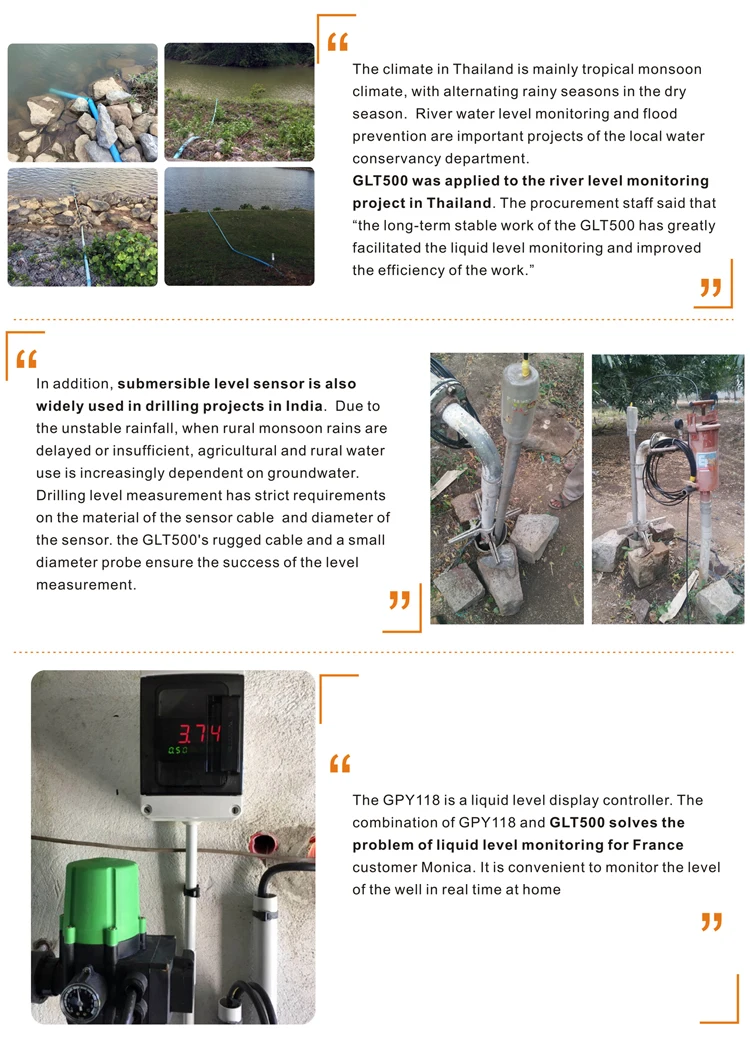

Successful Case
♦ Multiple Packaging Protection: Professional packaging material and rigorous packaging operation
♦ Multiple Transportation way: Express(Fedex, DHL, TNT, EMS, UPS etc.), air and shipping for your choose
Service standards: we are committed to providing a high quality,and responsive services to all clients
The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
Excellent package: each unit has individual box and all boxes are packed in standard packages.
OEM available
YOUR EARLY ENQUIRE WOULD BE HIGHLY APPRECIATED
