Introduction of water level meter
Why do you choose GLT500A?
1.Sensor probe diameter only 14mm, It can be used for measurement of narrow pipe space.
2.The anti-corrosion electrode of GLT500A can effectively prevent the electrode from oxidizing and rusting, and maintain the long-term sensitivity.
3.30-500M measuring range is optional.
4.Easy to use.It with sound and light alram to remind you recording the correct level value.
Application:
♦water conservancy project,
♦hydrology, geography, environmental protection
♦other areas of industry and agriculture fields
♦other liquid level measurement
How to use ?

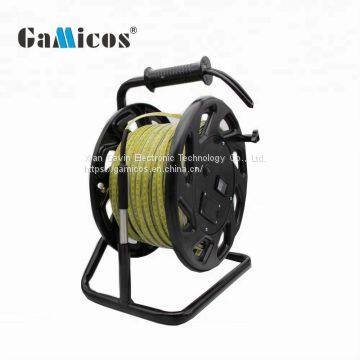

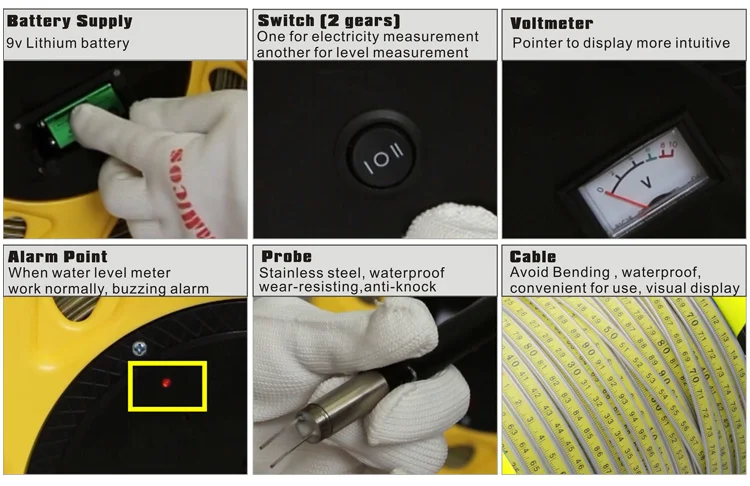

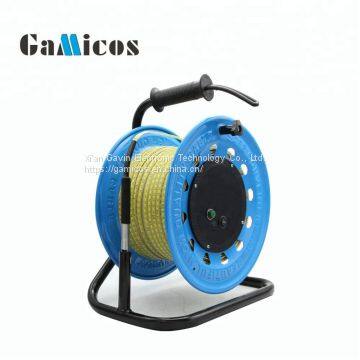

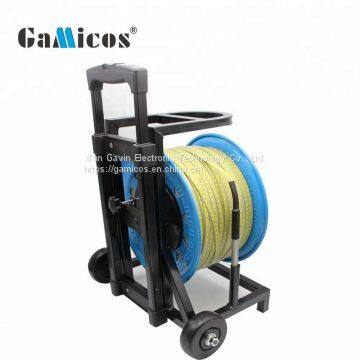

The water level meter is made of the probe, steel ruler and reel .
♦Put the probe to the water slowly, when the probe touch the surface of water,the electric potentialwill be happened.
♦After dealing by circuit board.The sound or light will be indicated,then you could check the height between thesurface of the water to the ground, easilyoperating
Specification

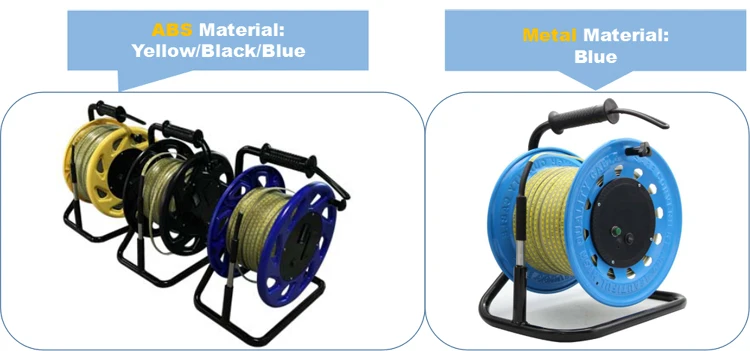

| shell material | ABS,Metallica |

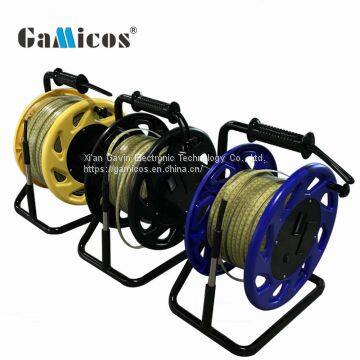

| Shell color | blue, yellow, black |
| Measurement range | 30m,50m,100m,200m,300m,400m,500m |
| battery power | 9V lithium battery |
| Instrument for temperature | -20℃~+60℃ |
| The response time for output | ≤1ms |
| Measurement error | ≤±0.5mm |
| Adaptation range of water quality | 10μω~1000μω |
| Measurement signal | LED, buzzer |
| construction of cable |
conductor: Multi-strand tinning copper wires twisted core wire:Special PP mixed insulation ecderon:Special PUR or PE mixed ecderon color :natural color |
| rated voltage | 300V |
| Testing Voltage | 2000V |
| insulation resistance | >200MΩ×km |
Application
Package&Shipping
As the clients requirement
Standard export package: each unit has individual box and all boxes are packed in standard packages
Service standards: we are committed to providing a high quality,and responsive services to all clients
The fastest reply: detailed informations, specific model and price of products will be provided quickly after receiving your inquiry.
Quality assurance: good quality is assured by advanced manufacturing technology. And all products will be checked by our quality-control manager.
Excellent package: each unit has individual box and all boxes are packed in standard packages.
OEM available

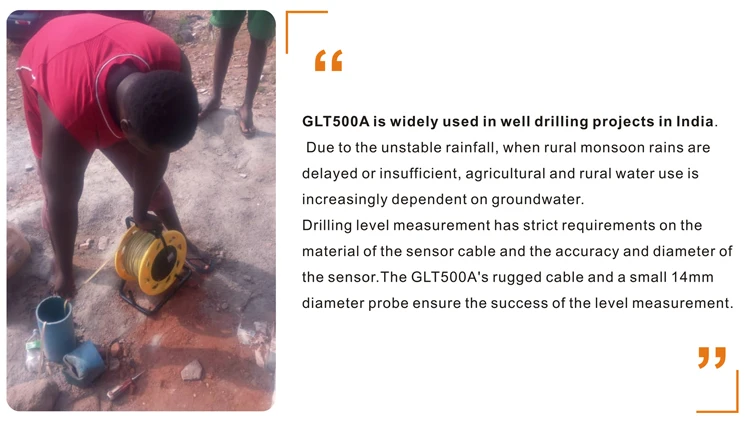

Successful Case

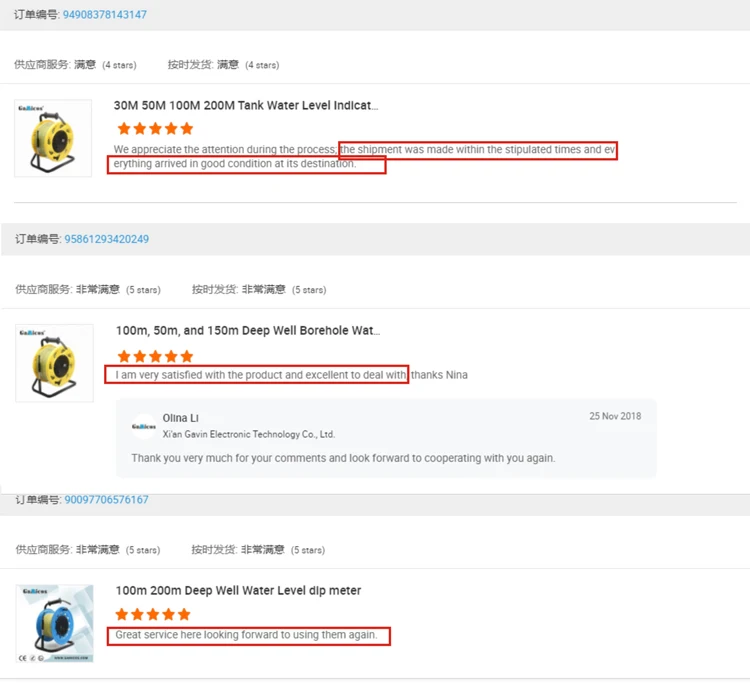

Customer Feedback
