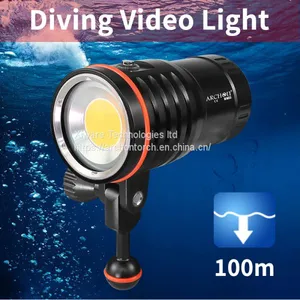

Archon WM66 Diving Video Light
Model：WM66 Diving Video Light

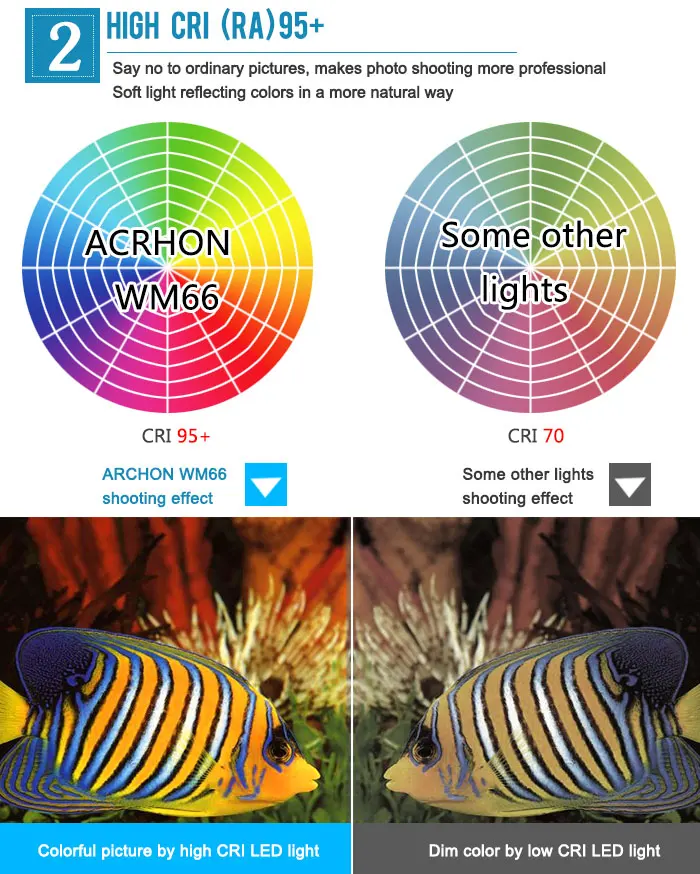

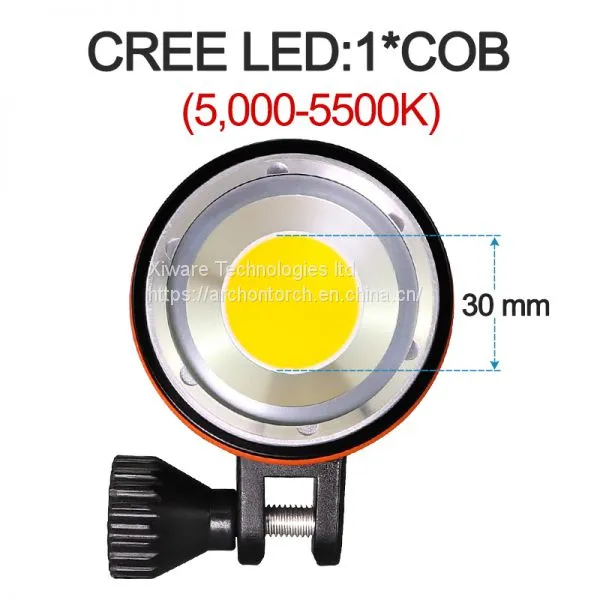

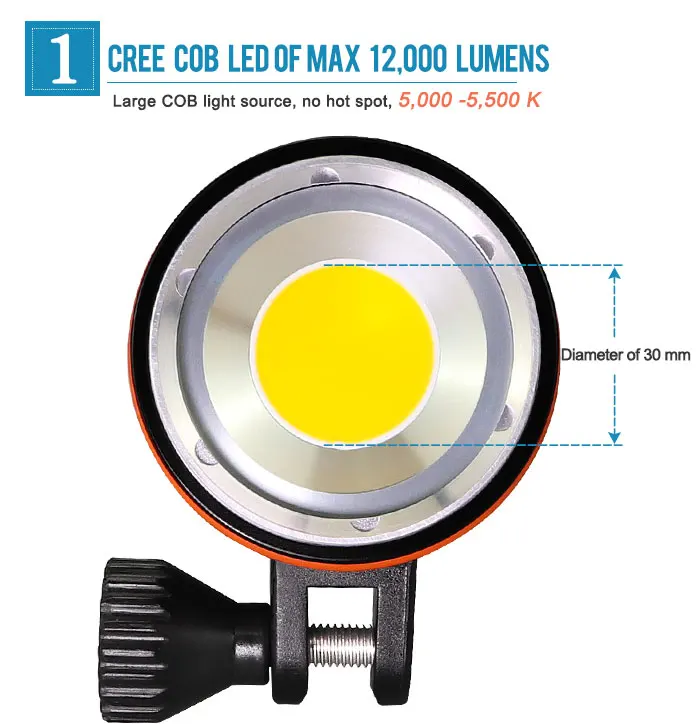

Bulb：1*CREE Warm White CO BLED(CCT 5000-5500K，CRI 95)
Max brightness level：12000 lumens
Output levels：high>med
Runtime：high 55min，med120min
Lens：6mm toughened glass
Body material：durable aircraft-grade aluminum

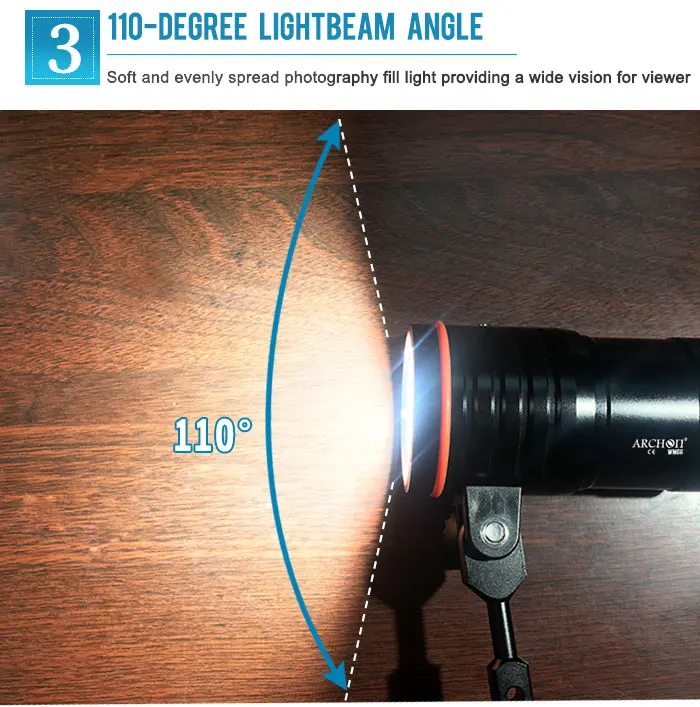

Angle of light beam：110°

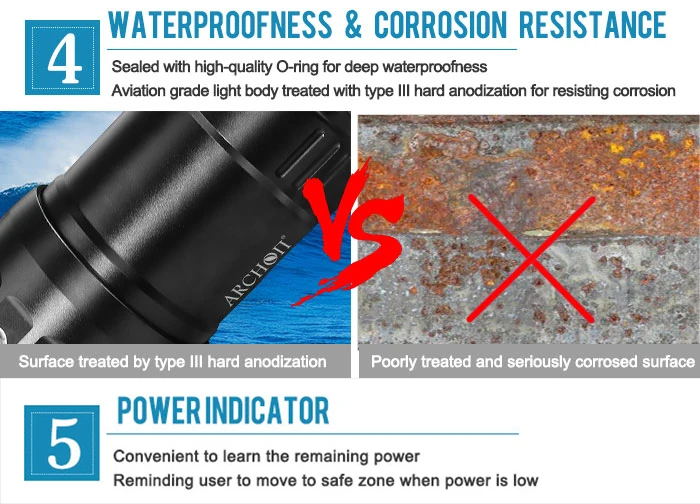

Surface treatment：premium type III hard-anodizing
Color：Black

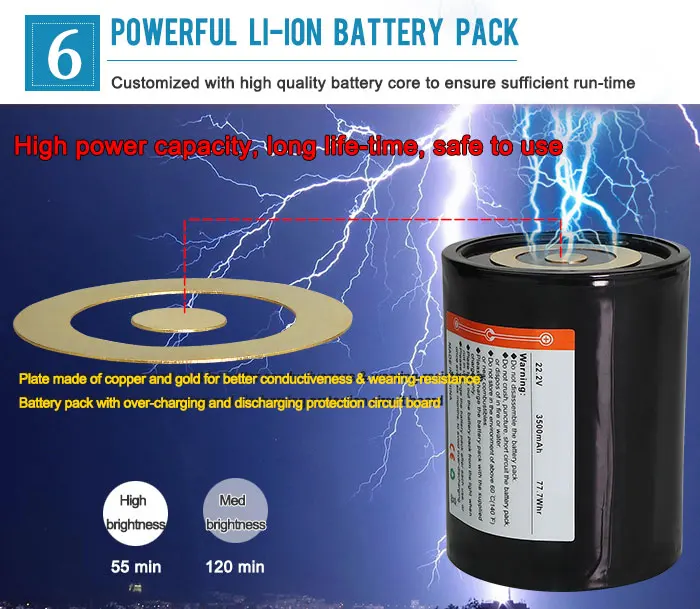

Battery：a customized Li-ion Battery Pack
With battery over-discharging protection
Operation voltage：25.2V to 16.8V
Waterproof：up to 100 Meters
Dimensions：139mm(length)*70.2mm(dia. Of light head)*64.8mm(dia. Of light body)
Weight in air：approx.776g.(with battery pack)
Weight in water：approx.363g.(with battery pack)
POWER INDICATOR：
Ring-shaped power indicator surrounding the switch lights up in green， or red， when the power capacity is above 30%，or between 30%and 10%.It flashes in red for the power capacity
between 10%and 5%，and switches off automatically when power capacity is below 5%， to
prevent over-discharging.
LOW BATTERY WARNING：
The light flashes 3 times when the power capacity reaches 10-5%； it repeats after 5 seconds， and then switches to lower brightness. The light switches off automatically when the power capacity is less than 5%，to prevent over-discharging.
BATTERY INSTALLATION：
1.Hold the light with its head pointing upward， unscrew the light head
2.Remove the used battery pack from the battery compartment， if there is any； and put in the fully charged battery pack， with electrode side facing up
3.Screw light head down. Do not overtighten to break the O-ring
BATTERY CHARGING：
1.Please keep the charger away from the flammable or explosive material， and plug it in the power socket；the charger's indicator light is green when its other side is not connected with battery pack.
2.Plug the other side of charger in the port of the battery pack. The charger's indicator light is red
if the charging is in process； and it turns green after the charging is completed.
3.Please carryout charging under monitoring， and unplug the charger when it is finished.
MODES CHANGING

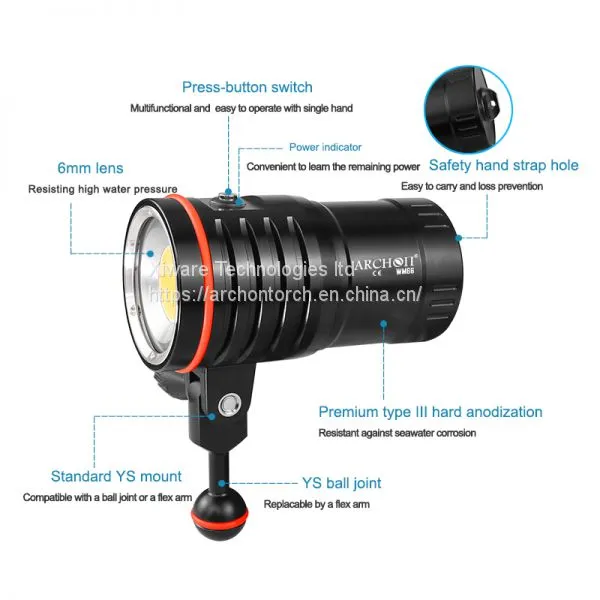

1.Long press the button switch and hold it for two seconds to turn on or off the light.
2.When the light is on， successively click the button switch to cycle through high and medium levels
3.After each pressing， the switch will bounce back to original position automatically
Professional 12000 Lumens ARCHON WM66 Diving Video Light underwater video flashlight
Model |
WM66 Diving Video Light |
CREE LED |
1*COB (5,000-5,500) |
| Runtime | high 55 min , med 120 min |
| Output levels | high , med |
| Reflector | no hotspot design, no reflector |
| Body material | durable aircraft-grade aluminum |
| Angle of light beam | 110° |
| Surface treatment | premium type III hard-anodizing |
| Color | black |
| Battery |
a 18650 Li-ion battery pack with battery over-discharging protection |
| Operation voltage | 25.2V to 16.8V |
| Waterproof | 100 Meters underwater |
| Dimensions | 139 mm (length) * 70.2 mm (dia. of light head) * 64.8 mm (dia. of light body) |
Weight in air |
approx. 776 g. (with battery pack) |
Underwater weight |
approx. 363 g. (with battery pack) |
