ARCHON D35VPII & W41VPII Diving Video & Spot Light Scuba Diving Torch LED Flashlight

ARCHON D35VPII & W41VPII Diving Video & Spot Light Scuba Diving Torch LED Flashlight thumbnail-1
ARCHON D35VPII & W41VPII Diving Video & Spot Light Scuba Diving Torch LED Flashlight thumbnail-2
ARCHON D35VPII & W41VPII Diving Video & Spot Light Scuba Diving Torch LED Flashlight thumbnail-3
ARCHON D35VPII & W41VPII Diving Video & Spot Light Scuba Diving Torch LED Flashlight thumbnail-4
ARCHON D35VPII & W41VPII Diving Video & Spot Light Scuba Diving Torch LED Flashlight thumbnail-5
ARCHON D35VPII & W41VPII Diving Video & Spot Light Scuba Diving Torch LED Flashlight photo-1
ARCHON D35VPII & W41VPII Diving Video & Spot Light Scuba Diving Torch LED Flashlight photo-2
ARCHON D35VPII & W41VPII Diving Video & Spot Light Scuba Diving Torch LED Flashlight photo-3
ARCHON D35VPII & W41VPII Diving Video & Spot Light Scuba Diving Torch LED Flashlight photo-4
ARCHON D35VPII & W41VPII Diving Video & Spot Light Scuba Diving Torch LED Flashlight photo-5
Negotiable MOQ: 5 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
ARCHON
Place of Origin:
China
Model Number:
D35VPII & W41VPII
Contact Supplier Request Quote Chat Now
Xiware Technologies Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
YANTIAN SHENZHEN CHINA
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ARCHON
Place of Origin China
Model Number D35VPII & W41VPII
Certification CE, EMC, FCC, ROHS
Usage Industrial
Power Source Rechargeable Battery
Battery Type Other, 18650 Li-ion batteries
Lamp Body Material Aluminum Alloy
IP Rating IP68
Lighting Period (h) 3
Warranty(Year) 3
LED Light Source White (Video light):CREE XM-L2 U2 LED *4 (max 4200 Lumens); White (Spot light):Cree XP-G2 *2 (Max 860Lumens) Red CREE XP-E LED*2 (max 200 Lumens,620nm) UV LED*2 (max 6W,365nm)
Flashlight Type Diving Flashlight

ARCHON W41VPII Underwater Diving Video light Dive Video Torch LED Flashlight  4000 lumen Diving Spot Torch


 Model: W41VP(4200lumens multifunction underwater video and photography Light)

Description: Multifunction diving video light and phtography light

OPERATING MODES:
Switch 1: White(Video light):high>medium>OFF
Switch 2: White (Spot light) :Red>UV>OFF
The two switches can be operated separately or simultaneously
LIGHTS SOURCE:

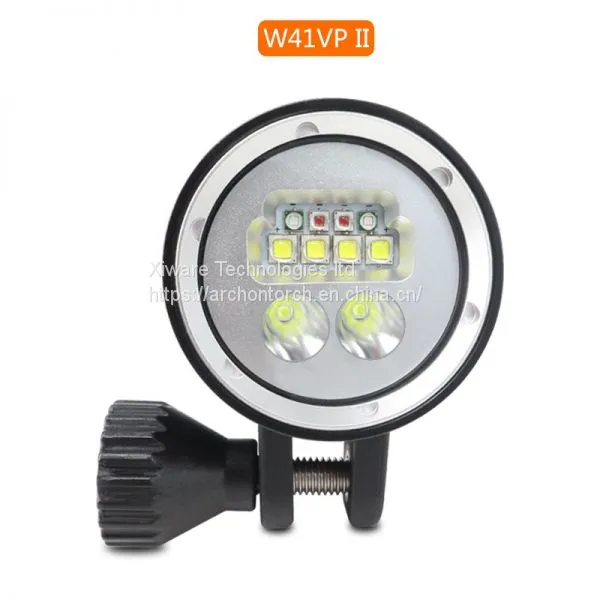

Bulb: White (Video light):CREE XM-L2 U2 LED *4 (max 4200 Lumens);
 White (Spot light):Cree XP-G2 *2 (Max 860Lumens)
Red CREE XP-E LED*2 (max 200 Lumens,620nm)
UV LED*2 (max 6W,365nm)
Color temperature:
White (Video light): 5000-5500k;
 White (Spot light):6500K
Reflector: Glossy aluminium reflector ( spot light only)
Lens: 4mm Polycarbonate Board;
Angle of light beam:110 degree (video light ),10 degree ( spot light)
BUILD:
Body material: Durable aircraft-grade aluminum;
Maximum operating depth: 100 meters deep
Surface treatment: Premium Type Ill hard-anodizing.
Color: Black
Dimensions:129.5mm (length)*54.5mm (dia. Of head),48mm(dia.of lamp body)
Impact resistance: 1.5M.
Waterproof:Underwater 100Meters
Underwater Weight: 260 grams (with battery)
Weight in air: Ca.357g (without battery);Ca.513g(with battery)
OPERATION VOLTAGE:4.2V to 2.8V.
BATTERY:
Battery: 18650 Li- ion battery *3
LOW BATTERY WARRANTY:
The light flash 3 times if the power capacity is less than 10%;it repeat after 5 seconds,and then switches to lower brightness .The light switches off when the power capacity is less than 5%.


ARCHON W41VPII Underwater Dive Diving LED 4000 lumen Spot Video Flashlight TorchARCHON W41VPII Underwater Dive Diving LED 4000 lumen Spot Video Flashlight TorchARCHON W41VPII Underwater Dive Diving LED 4000 lumen Spot Video Flashlight TorchARCHON W41VPII Underwater Dive Diving LED 4000 lumen Spot Video Flashlight TorchARCHON W41VPII Underwater Dive Diving LED 4000 lumen Spot Video Flashlight TorchARCHON W41VPII Underwater Dive Diving LED 4000 lumen Spot Video Flashlight TorchARCHON W41VPII Underwater Dive Diving LED 4000 lumen Spot Video Flashlight TorchARCHON W41VPII Underwater Dive Diving LED 4000 lumen Spot Video Flashlight TorchARCHON W41VPII Underwater Dive Diving LED 4000 lumen Spot Video Flashlight TorchARCHON W41VPII Underwater Dive Diving LED 4000 lumen Spot Video Flashlight TorchARCHON W41VPII Underwater Dive Diving LED 4000 lumen Spot Video Flashlight TorchARCHON W41VPII Underwater Dive Diving LED 4000 lumen Spot Video Flashlight Torch

Operation Instruction
1. Successively push the switch 1 ON - OFF to cycle through White (video light) high,low,strobe,and off. (After each push the switch will slide back to the original position automatically)
2. Successivly push the switch 2 ON - OFF to cycle through White (spot light),red,UV and off.
3. Both switches can be turned on or off simultaneously or seperately.(If the switch gets stuck,please add the washing liquid in the switch slot,push switch back and forth till it moves smoothly.Please rinse it with the clearn water afterwards.
SAFETY FEATURES:
Battery over-discharging protection
Polarity reversing protection.
Gas release valve

SCUBA DIVING APPLICATION

Check closely for cuts, scratches, or an otherwise damaged O-ring or mating lens surface as this can cause the light to flood under pressure. Remove any salt deposits, sand, dirt, or other foreign matter from the O-ring sealing surfaces.

KEEP THE THREADS, O-RING GROOVE LUBRICATED WITH SILICONE GREASE.

CAUTION

If the light is not to be used for some time, remove the batteries to prevent possible leakage or corrosion. Please remove the batteries during transportation to prevent it from misoperation.

If the switch gets stuck, please put some washing-up liquid in the slot of the switch and push the switch back and forward several times till it move smoothly again, then clean the light in the fresh water.

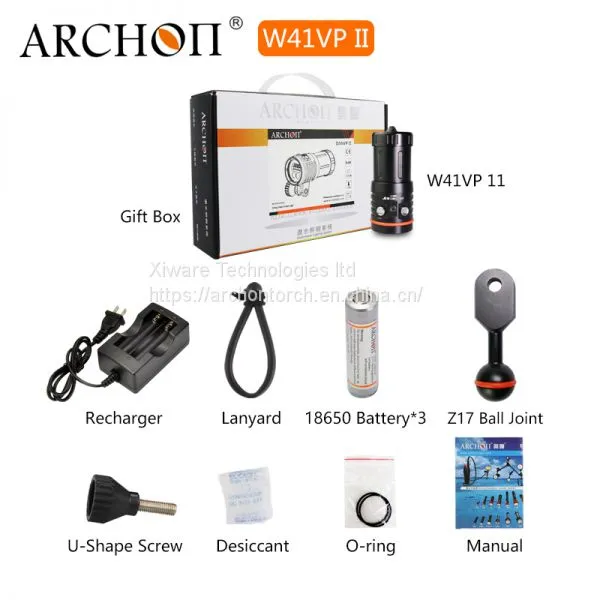

The Packaging including:

  1. Archon W41VR underwater photography light

  2. High capacity high discharge rate Li - ion battery

  3. Home charger

  4. Premium Quality EVA Carry Case

  5. User Manual

  6. O -ring Set
