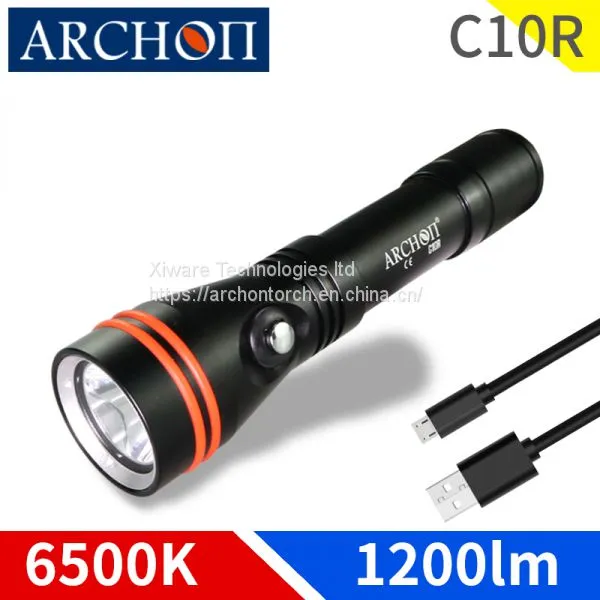

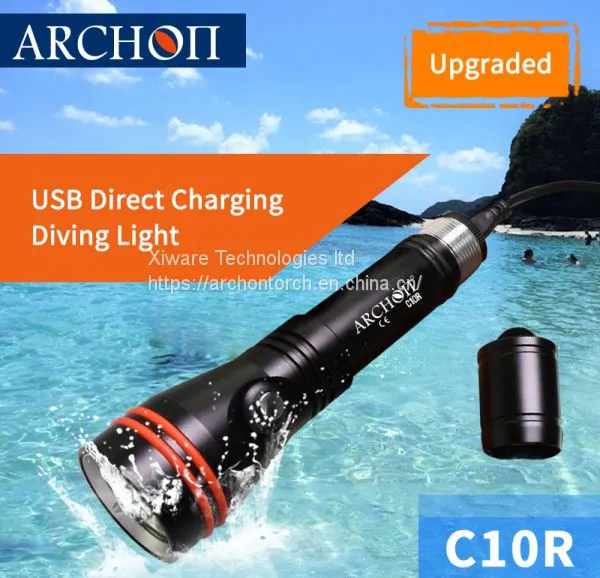

ARCHON C10R Underwater Diving spot light Scuba Diving Torch LED Flashlight 1200 lumen
Model：C10R Diving Light

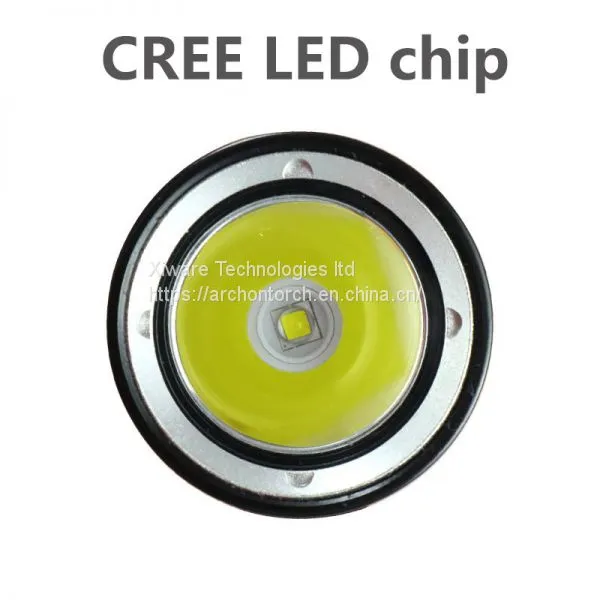

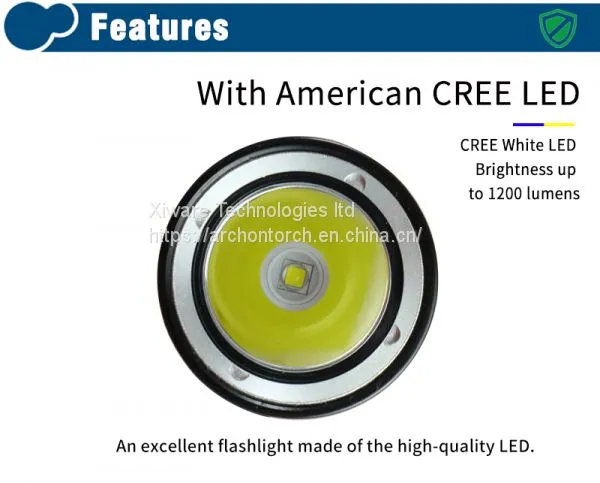

Bulb：CREE White LED(CCT6500K)
Max brightness level ：1200 lumens
Output levels：high>low>SOS
Runtime：high 90min，low 150min，SOS 90min

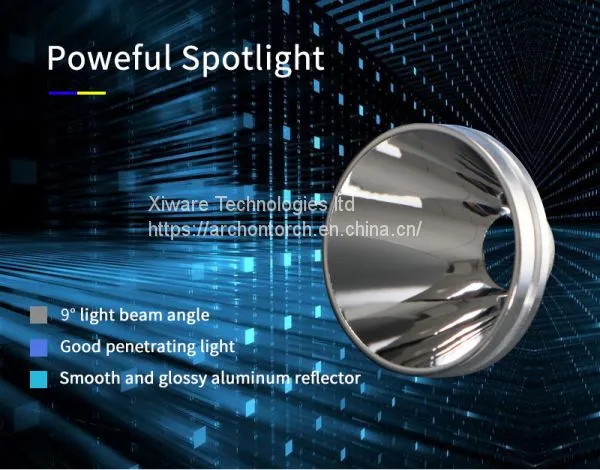

Reflector：glossy aluminum reflector
Lens：3mm toughened glass
Body material：durable aircraft-grade aluminum
Angle of Light beam：9°hotspot
Surface treatment：premium type III hard-anodizing
Color：Black
Battery：18650 Li-ion battery with BMS*1
With battery over-discharging protection， polarity reversing protection
Operation voltage：4.2V to 3.0V

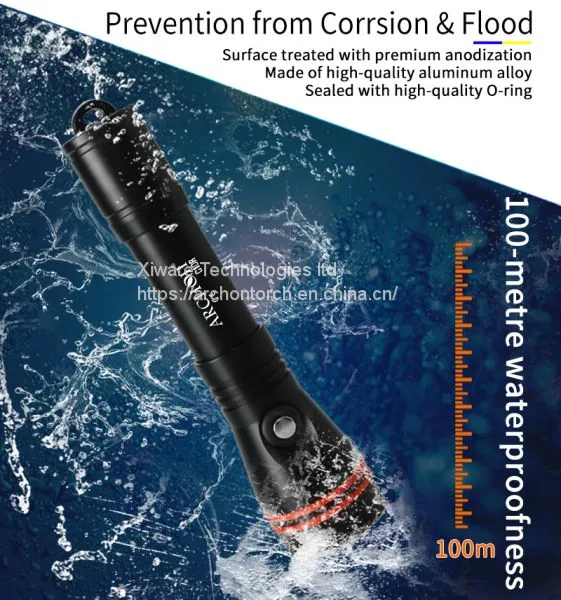

Waterproof：up to 100 Meters
Dimensions：167mm(length]*24.5mm[dia. Of light body)*39mm[dia. Of Light head]
Net weight：approx.172g.[without battery]
Gross weight：approx.218g.[with battery]
Underwater weight：approx.120g.(with battery)

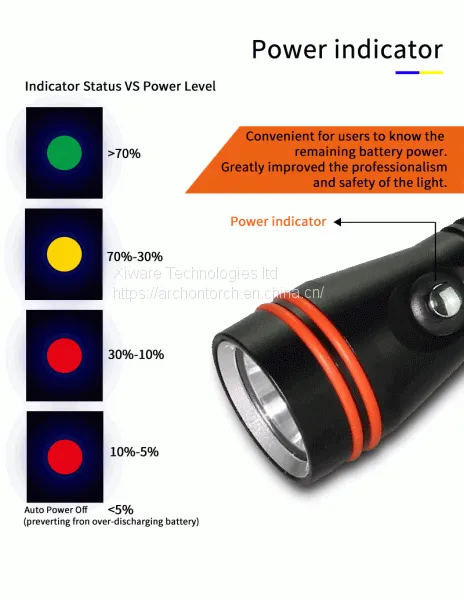

POWER INDICATOR：
Ring-shaped power indicator surrounding the switch Lights up in green，or yellow，or red， when the power capacity is above 70%，or between 70-30%，or between 30-10%.It flashes in red if the power capacity is between 10-5%，and turns off automatically if the power capacity is below 5%to prevent over-discharging the battery.
BATTERY CHARGING
1.Please always charge in well ventilated area，and do not charge the battery near the flammable or explosive material.

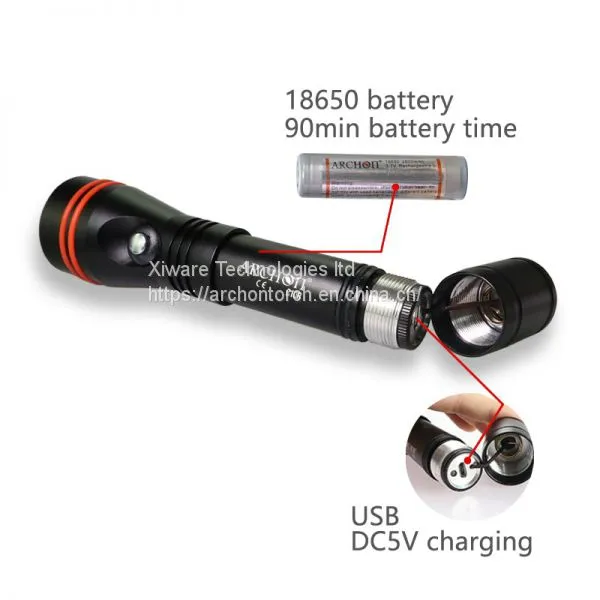

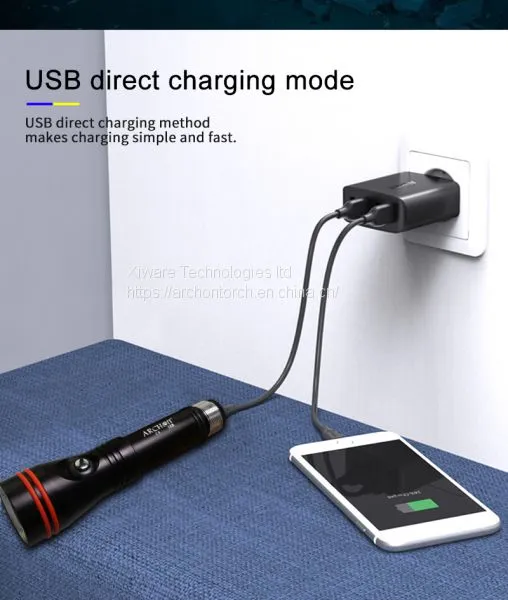

2.When the light is off，unscrew the rear cap，use the USB wire to connect the charging port at the end of the light body and the USB power socket. The battery charge indicator light at the end of the Light body is red if the charging is in process；and it turns green after the
charging is completed.
3.Please carryout charging under monitoring. Please unplug the USB wire， and screw the rear cap when the charging is finished.
MODES CHANGING

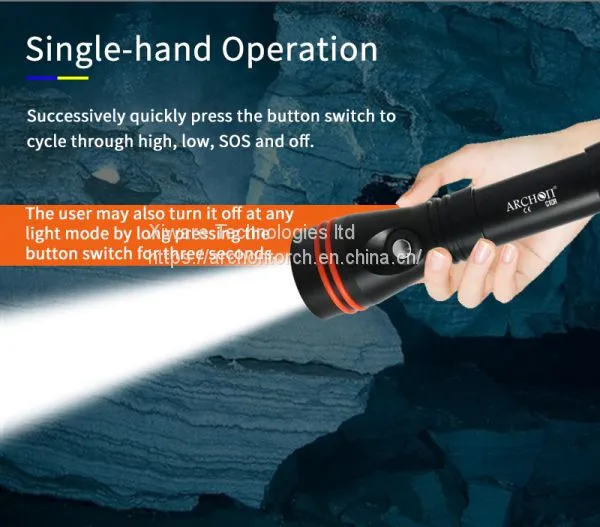

Successively quickly press the button switch to cycle through high，low，SOS，and off. And the user may also turn if off at any Light mode by long pressing the button switch for three seconds.(After each press， the button switch will bounce back automatically.)
CAUTION：
1.Please never attempt to repair or modify the Light yourself
2.Please handle illuminants with care， to avoid breakage. Illuminants can break or splinter
when banging against the device. Splinters can cause eye and skin injuries
3.Please check the light regularly for sharp edges， scratches or damages to the surface or
O-ring，as this can cause the light to flood under pressure. PLEASE LUBRICATE THE O-
RING，AND REPLACE IT TIMELY.(Please avoid applying lubricant to circuit board or battery
compartment cross section，which may affect the conduction )
4.Please rinse the product surface thoroughly after each use， dry the Light both inside and
outside， and store it in a cool and dry place
5.Please do not lay the light or battery in a fire or expose it to direct heat. Do not wet or hit
the light or battery. Please charge the battery after each use，or once every three months，
to avoid over-discharging
6.Please never leave the light unattended when it is on.
7.Please keep the device out of the reach of children or pets
8.Please never shine the light to human or pet's eye.
9.It is recommended to use Archon 18650 battery with re/discharge protection circuit or
BMS[Battery Management System] for this light.
10.In case of accidental flooding， please remove the battery by unscrewing the rear cap and
the USB charging cap at the end of the Light body， and dry the Light and battery compartment
as soon as possible， to prevent the secondary damage
