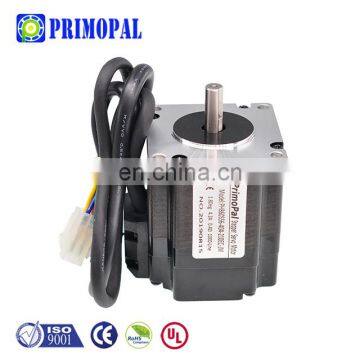

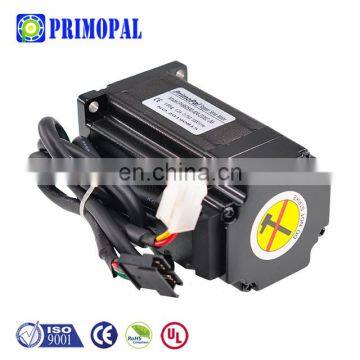

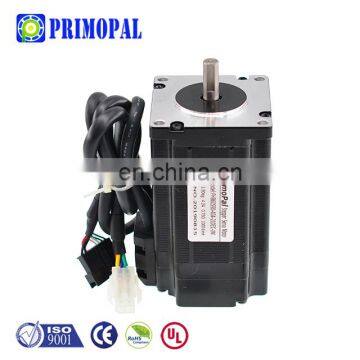

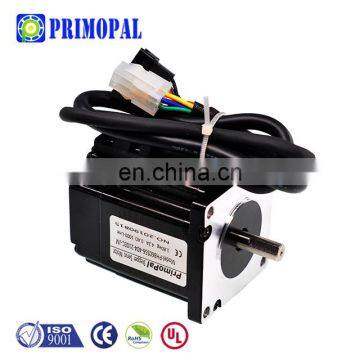

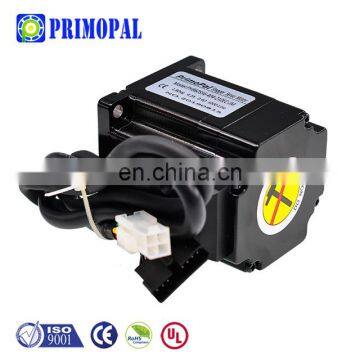

1.8 degree 4.2A 45mm holding torque 0.9mm nema 24 close loop hybrid stepper servo motor rotary encoder optical cnc kit
USD $22 - $35
/ Piece
1 Piece(Min.Order)
- 200000 Piece / Pieces per Month
- Shanghai Ningbo Shenzhen
- T/T Credit Card
You May Like
-
4nm 6nm mini nema 17 23 34 hybrid stepper motor with CNC hollow shaft waterproof closed loop
-
NEMA 23 linear stepper motor
-
0.36 degree high quality nema 16 stepper motor for 3d printer
-
1.8degree NEMA 34 Stepper Motor for robot and 3d printer
-
1.8 degree 2 phase 86mm Bipolar nema 34 stepper motor
-
Bipolar nema 42 stepper motor with RoHS Certification
Product Details
| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PHSM60S Series | Type | Hybrid | |
| Phase | 2 | Certification | CE, ISO, ROHS, UL | |
| Current / Phase | Variable, can be custom |
Product Description
PrimoPal’s PHSM series hybrid servo motors offer an alternative for applications requiring high performance and high reliability when the servo system is the only choice, while it remains cost-effective. The internal encoder is used to close the position, velocity and current loops in real time, just like the servo system. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system. The PHSM series hybrid servo motors are currently available from NEMA 8 to NEMA 34 with holding torque from 0.4Nm to 12.0 Nm. All these hybrid servo motors are integrated with 2-channel and 1,000-line optical incremental encoders. Moreover, custom winding, motor length, shaft, encoder resolution and other mechanical modifications are also available.
| Step Angle | 1.8° |
| Dielectric Strength | 500 VAC for one minute |
| Insulation Class | Class B |
| Temperature Rise | 80 °C Max.(rated current, 2 phase on) |
