Home > Electrical & Electronics > Electric Motor > Stepper Motor > 1.8degree NEMA 34 Stepper Motor for Robot and 3d Printer

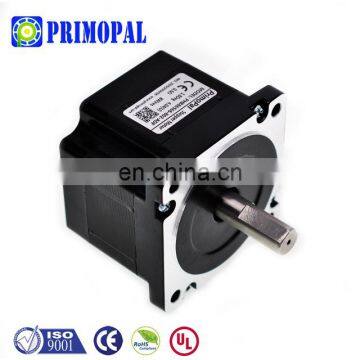

1.8degree NEMA 34 Stepper Motor for Robot and 3d Printer
US$ 12 - 20
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
PrimoPal
Place of Origin:
Shanghai, China
Model Number:
PHB86K Series
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1.8 Degree 2 Phase 86mm Bipolar Nema 34 Stepper MotorUS$ 12 - 25MOQ: 1 Piece -
Bipolar Nema 42 Stepper Motor With RoHS CertificationUS$ 30 - 60MOQ: 1 Piece
-
Nema14 34mm Stepper Motor With Gearbox for CNC Medical EquipmentUS$ 15 - 15MOQ: 1 Piece
-
34mm Stepper Gear Motor for CNC Medical EquipmentUS$ 15 - 15MOQ: 1 Piece
-
Nema14 Stepper Gear Motor for 3d PrinterUS$ 15 - 15MOQ: 1 Piece
Brand Name
PrimoPal
Place of Origin
Shanghai, China
Model Number
PHB86K Series
Type
Hybrid
Phase
2
Certification
CE, ISO, ROHS, UL
Current / Phase
Variable, can be custom
Brief Introduction
PHB86K series hybrid stepper motors are supplied by one of the China's top stepper motor suppliers (PrimoPal Motor). These NEMA 34 round stepper motor with 1.8° step angle (200 steps/revolution) are made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet. The body length of PrimoPal's NEMA 34 round stepper motors ranges from 63mm to 122mm, and the holding torque could be as high as 630N.cm (890oz-in). These high-performance and high-reliability NEMA 34 stepper motors are terminated with four, six or eight flying ended lead wires, and could be easily connected to the constant current or chopper drive controllers.
General Specs
| Step Angle | 1.8° |
| Step Angle Accuracy | ±5% (full step, no load) |
| Resistance Accuracy | ±10% |
| Inductance Accuracy | ±20% |
| Temperature Rise | 80 °C Max.(rated current, 2 phase on) |
| Ambient Temperature | -10 °C ~ +50 °C |
| Insulation Resistance | 100 MΩ Min., 500VDC |
| Dielectric Strength | 1500 VAC for one minute |
| Shaft Radial Play | 0.02 Max. (450 g-load) |
| Shaft Axial Play | 0.08 Max. (450 g-load) |
Electrical Specs
| Model | Current | Resistance | Inductance | Holding Torque | Bi/Unipolar | Detent Torque | Rotor Inertia | Weight | Length |
| A/Ø | Ω/Ø | mH/Ø | N.cm | # of Leads | N.cm | Kg.cm2 | kg | mm | |
| PHB86K63-801 | 3.0 | 0.95 | 7.2 | 250 | Bi-P (8) | 4.5 | 0.64 | 1.6 | 63 |
| 1.5 | 3.8 | 28.8 | 250 | Bi-S (8) | |||||
| 2.1 | 1.9 | 7.2 | 180 | Uni (8) | |||||
| PHB86K63-802 | 3.8 | 0.6 | 4.5 | 250 | Bi-P (8) | 4.5 | 0.64 | 1.6 | 63 |
| 1.9 | 2.4 | 18.0 | 250 | Bi-S (8) | |||||
| 2.7 | 1.2 | 4.5 | 180 | Uni (8) | |||||
| PHB86K63-803 | 5.6 | 0.34 | 2.0 | 250 | Bi-P (8) | 4.5 | 0.64 | 1.6 | 63 |
| 2.8 | 1.36 | 8.0 | 250 | Bi-S (8) | |||||
| 4.0 | 0.68 | 2.0 | 180 | Uni (8) | |||||
| PHB86K63-804 | 7.0 | 0.23 | 1.5 | 250 | Bi-P (8) | 4.5 | 0.64 | 1.6 | 63 |
| 3.5 | 0.9 | 6.0 | 250 | Bi-S (8) | |||||
| 5.0 | 0.45 | 1.5 | 180 | Uni (8) | |||||
| PHB86K92-801 | 3.0 | 1.4 | 15 | 450 | Bi-P (8) | 6.5 | 1.30 | 2.6 | 92 |
| 1.5 | 5.4 | 60 | 450 | Bi-S (8) | |||||
| 2.1 | 2.7 | 15 | 320 | Uni (8) | |||||
| PHB86K92-802 | 3.8 | 0.85 | 9.0 | 450 | Bi-P (8) | 6.5 | 1.30 | 2.6 | 92 |
| 1.9 | 3.4 | 36.0 | 450 | Bi-S (8) | |||||
| 2.7 | 1.7 | 9.0 | 320 | Uni (8) | |||||
| PHB86K92-803 | 5.6 | 0.45 | 3.8 | 450 | Bi-P (8) | 6.5 | 1.30 | 2.6 | 92 |
| 2.8 | 1.8 | 15.2 | 450 | Bi-S (8) | |||||
| 4.0 | 0.9 | 3.8 | 320 | Uni (8) | |||||
| PHB86K92-804 | 7.0 | 0.3 | 2.8 | 450 | Bi-P (8) | 6.5 | 1.30 | 2.6 | 92 |
| 3.5 | 1.2 | 11.2 | 450 | Bi-S (8) | |||||
| 5.0 | 0.6 | 2.8 | 320 | Uni (8) | |||||
| PHB86K122-802 | 3.8 | 1.25 | 12.5 | 630 | Bi-P (8) | 10.5 | 1.90 | 3.8 | 122 |
| 1.9 | 5.0 | 50 | 630 | Bi-S (8) | |||||
| 2.7 | 2.5 | 12.5 | 450 | Uni (8) | |||||
| PHB86K122-803 | 5.6 | 0.55 | 5.6 | 630 | Bi-P (8) | 10.5 | 1.90 | 3.8 | 122 |
| 2.8 | 2.2 | 22.4 | 630 | Bi-S (8) | |||||
| 4.0 | 1.1 | 5.6 | 450 | Uni (8) | |||||
| PHB86K122-804 | 7.0 | 0.4 | 3.6 | 630 | Bi-P (8) | 10.5 | 1.90 | 3.8 | 122 |
| 3.5 | 1.6 | 14.4 | 630 | Bi-S (8) | |||||
| 5.0 | 0.8 | 3.6 | 450 | Uni (8) |
Note: We also could manufacture the custom stepper motors, according to the customer's requirements.

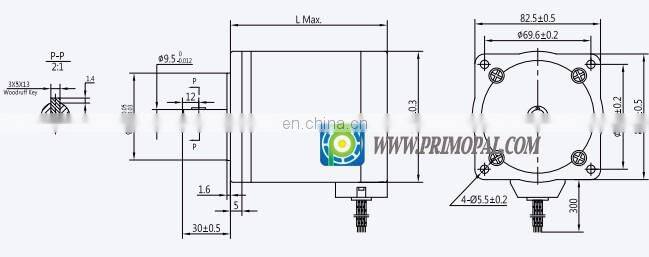

Outline Drawing
Terms of Trade
| Terms of Price | FOB, CIF, CFR, EXW, FCA, DDU, DDP, etc. |
| Terms of Payment | By 30%T/T in advance, 70%T/T against B/L Copy. |
| Warranty | Twelve-month limited warranty once the items are delivered to the buyer. |
| Lead Time | Usually within 2 weeks for trial orders, within 3 weeks for bulk orders. |
| Package | Carton or Plywood pallet. |
| Delivery Destination | We could ship items to any countries and regions all over the world. |
| Place of Loading | Shanghai, Ningbo, Shenzhen, etc. |
| Shipment Carrier | Items are usually shipped via FedEx/DHL/TNT/UPS/EMS for trial orders and via vessel for bulk orders. |
| Delivery Time | Usually within 5 days if shipment by express and 10~30 days if shipment by vessel. |
