0.36 degree high quality nema 16 stepper motor for 3d printer
- 200000 Piece / Pieces per Month
- Shanghai Ningbo Shenzhen
- T/T Credit Card
- 1.8degree NEMA 34 Stepper Motor for robot and 3d printer
- 1.8 degree 2 phase 86mm Bipolar nema 34 stepper motor
- Bipolar nema 42 stepper motor with RoHS Certification
- Nema14 34mm stepper motor with gearbox for CNC Medical Equipment
- 34mm stepper gear motor for CNC Medical Equipment
- Nema14 stepper gear motor for 3d printer
Product Details
Brand Name: | PrimoPal | Place of Origin: | Shanghai, China | Model Number: | PHB39G Series |
Type: | Hybrid | Phase: | 5 | Certification: | CE, ISO, ROHS |
Current / Phase: | Variable, can be custom |
Product Description

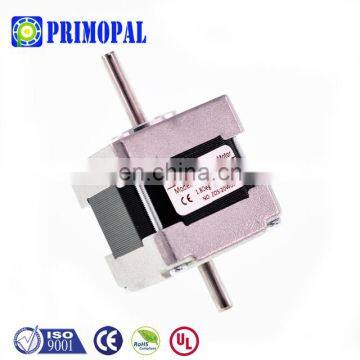

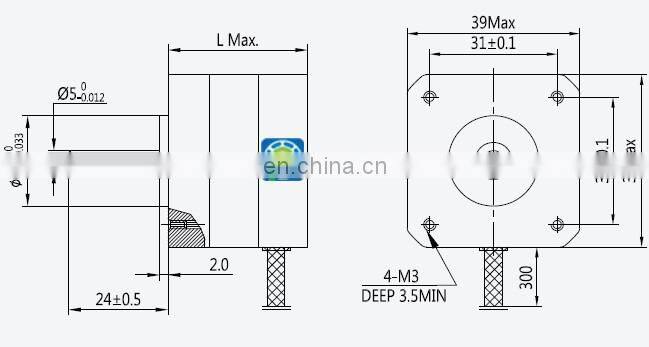

PHB39G series hybrid stepper motors are supplied by one of the China's top stepper motor suppliers (PrimoPal Motor). These NEMA 16 square stepper motor with 0.36° step angle (1,000 steps/revolution) are made of high-quality cold rolled steel sheet and anti-high temperature permanent magnet. The body length of PrimoPal's NEMA 16 stepper motors ranges from 31mm to 40 mm, and the holding torque could be as high as 13.5N.cm (19.1oz-in). These high-performance and high-reliability NEMA 16 stepper motors are terminated with five flying ended lead wires, and could be easily connected to the constant current or chopper drive controllers.
Step Angle | 0.36° |
Step Angle Accuracy | ±5% (full step, no load) |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Temperature Rise | 80 °C Max.(rated current, 2 phase on) |
Ambient Temperature | -20 °C ~ +50 °C |
Insulation Resistance | 100 MΩ Min., 500VDC |
Dielectric Strength | 500 VAC for one minute |
Shaft Radial Play | 0.02 Max. (450 g-load) |
Shaft Axial Play | 0.08 Max. (450 g-load) |
Note: We also could manufacture the custom stepper motors, according to the customer's requirements.
