Home > Products > Hybrid Stepper Products > 1.8 Degree 1000cpr 4.2~8Nm High Quality Low Price Accur Bipolar Square Electr for Cnc Kit Closed Loop Stepper Motor
1.8 Degree 1000cpr 4.2~8Nm High Quality Low Price Accur Bipolar Square Electr for Cnc Kit Closed Loop Stepper Motor
US$ 35 - 70
/ Piece
1 Piece(Min. Order)
- Shanghai Ningbo Shenzhen
- T/T Credit Card
You May Like
-
1.8 Degree 1000cpr High Torque Strong Supplier Bulk for 3d Printer China 12nm Nema 34 Close Loop Stepper Motor
-
1000cpr 1.8degree 2 Phase Nema11 Silent Torque Bipolar Cnc Kit Close Loop Square Stepper Servo Motor
-
1000cpr 1.8degree 2 Phase Silent Rotary Optical Encoder Nema11 Hybrid Stepper Servo Motor
-
1000cpr 2phase Nema17 1.8degree 3d Printer Wire Cut Machine Close Loop Driver for Stepper Servo Motor With Absolut Encoder
-
1000cpr 1.8degree 2 Phase Nema11 Silent Torque Bipolar Cnc Kit Close Loop Square Stepper Servo Motor
-
3A 56mm Holding Torque 1.1 nm Nema 23 Low Price Close Loop Hybrid Stepper Motor Rotary Encoder Optical for 3D Printer
Product Details
| Brand Name | PrimoPal | Place of Origin | Shanghai, China | |
| Model Number | PHSM86S Series | Type | Hybrid | |
| Phase | 2 | Certification | CE, ISO, ROHS, UL | |
| Current / Phase | Variable, can be custom |
Product Description
PrimoPal’s PHSM series hybrid servo motors offer an alternative for applications requiring high performance and high reliability when the servo system is the only choice, while it remains cost-effective. The internal encoder is used to close the position, velocity and current loops in real time, just like the servo system. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system. The PHSM series hybrid servo motors are currently available from NEMA 8 to NEMA 34 with holding torque from 0.4Nm to 12.0 Nm. All these hybrid servo motors are integrated with 2-channel and 1,000-line optical incremental encoders. Moreover, custom winding, motor length, shaft, encoder resolution and other mechanical modifications are also available.

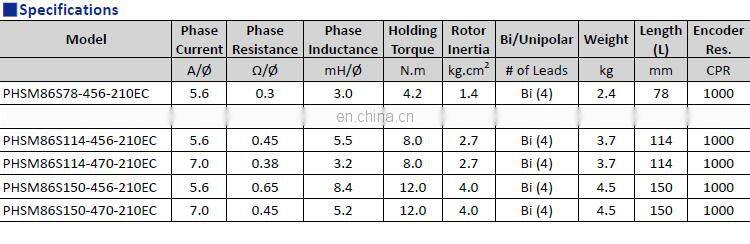

| Step Angle | 1.8° |
| Dielectric Strength | 500 VAC for one minute |
| Insulation Class | Class B |
| Temperature Rise | 80 °C Max.(rated current, 2 phase on) |
