T-Port L Port-Y-Port Three-way, Four-way and Multi-way Ball Valves

T-Port L Port-Y-Port three-way, four-way and multi-way ball valves

Contact: Email: zipopvf@163.com Wechat: zipo2019; QQ: 2191417589; Mobile: 18081659672 Please inform us of the accurate nominal size, pressure class, medium, temperature, material, actuator and other parameters, before consulting or purchasing the product. Thanks!

There are 3 types of three way ball valves: T-type, L-type and Y-type. T-type can make three orthogonal pipelines connect with each other and cut off the third port, which divides or converge the medium flow. L-type can only connect two mutually orthogonal pipelines, and can not keep the third pipeline interconnected at the same time, but only play a role of distribution. The Y-type flow ports are angle: 120 °, with flat flow port, small fluid resistance and strong flow capacity, which will not make the medium stay in the flow port, so as to achieve a good and smooth switching of each pipeline.

According to different working conditions, the ball and valve seat seal can adopt various advanced technologies such as soft seal, spray welding nickel base alloy (hardness > HRC60), supersonic tungsten cobalt alloy (hardness > HRC70) and special hardening materials, which are suitable for various harsh working conditions. The soft seal is suitable for working conditions below 280 ℃, the hard seal carbon steel is not more than 425 ℃, and the stainless steel is not more than 450 ℃.

Product features:

1. The three-way ball valve adopts integrated structure, the sealing type of four-sided valve seat, flange connection, high reliability and lightweight design

2. T-type three-way ball, long service life, large circulation capacity and small resistance

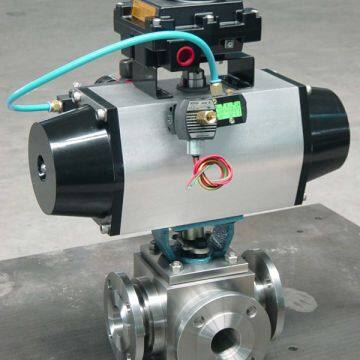

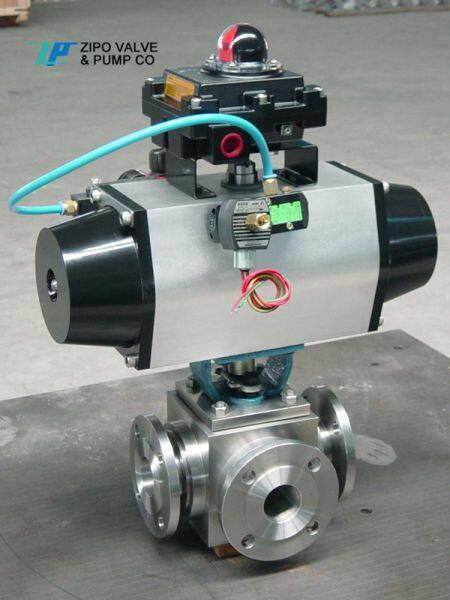

3. The ball valve can be either single acting or double acting type according to the acting type.

Manufacturer: ZIPO VALVE & PUMP CO., LTD
