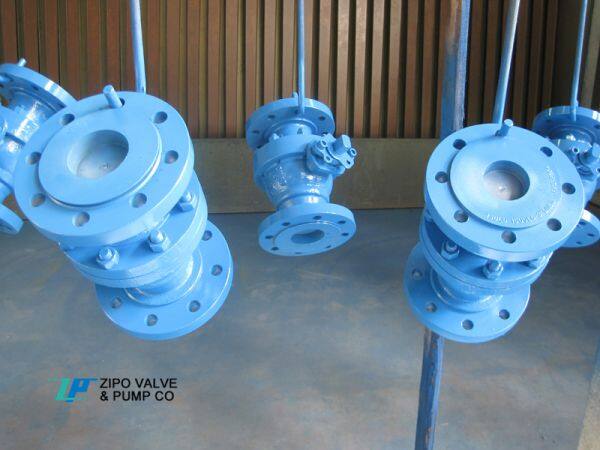

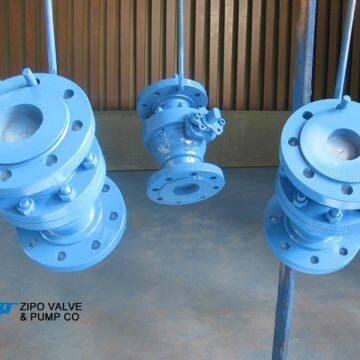

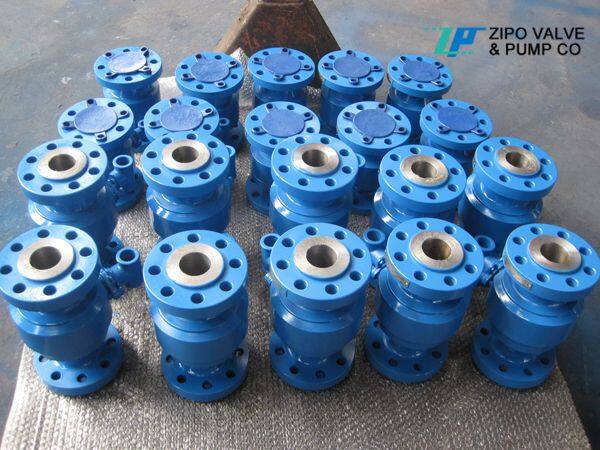

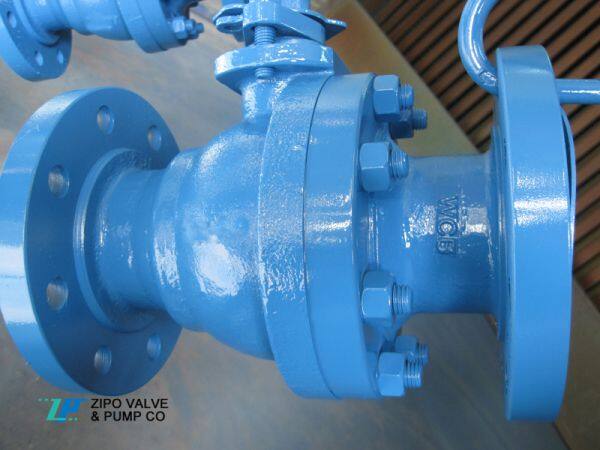

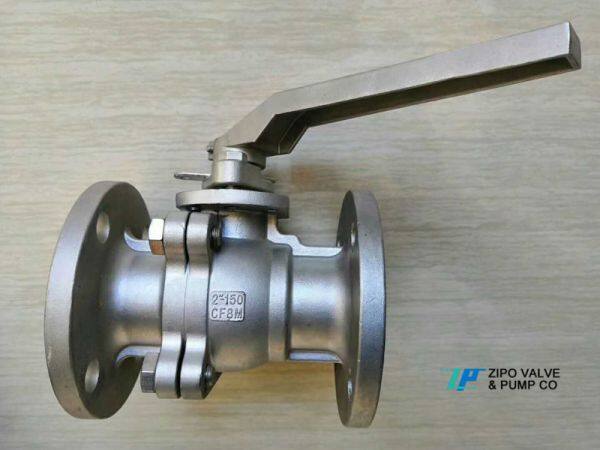

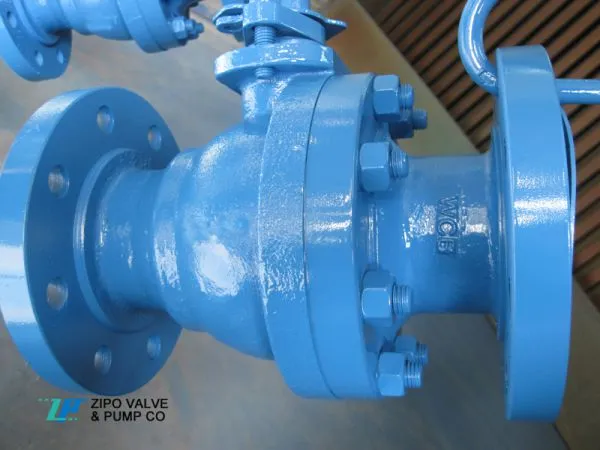

API6D Cast Steel Body Floating Ball Valve

API6D cast steel body floating ball valve

Contact: Email: zipopvf@163.com Wechat: zipo2019; QQ: 2191417589; Mobile: 18081659672

Valve body structure: two or three piece, split type, bolted connection, cast valve body structure

Valve seat structure: downstream seal of valve seat

Ball: solid floating ball, full bore / reduced bore

Seal: soft seal / metal seal / composite seal (primary metal seal + secondary soft seal), fireproof and anti-static, optional accessories: locking device

Common materials:

Valve body: carbon steel WCB / LCB / LCC stainless steel CF8 / CF8M / / CF3 / cf3m

Ball: carbon steel / stainless steel / alloy steel forging nickel plating / chromium plating / spray welding hard alloy;

Seat support ring: carbon steel / stainless steel / alloy steel forging nickel plating / chromium plating / spray welding hard alloy;

Valve seat: PTFE, RPTFE, Viton, nylon, Devlon, MOLON, PEEK / sealing surface spray welding, tungsten carbide, Stellite;

Stem: stainless steel / alloy steel / Inconel, etc

Product advantages: the valve body adopts forging to prevent casting defects, split bolt connection and easy maintenance.

Common models: Q41F, Q41H, Q41Y, Q61F, Q61H, Q61Y, Q11F, Q11H, Q11Y, Q941F，Q941H，Q941Y, Q961F, Q961H, Q961Y， Q911F，Q911H, Q911Y, Q641F，Q641H，Q641Y, Q661F, Q661H, Q661Y， Q611F，Q611H, Q611Y,

Size range: NPS1 / 2 "(DN15) ~ NPS8" (DN200)

Pressure range: Class 150Lb (PN16) ~ Class 2500lb (PN420)

Operation mode: Handle, worm gearbox, electric pneumatic, hydraulic, pneumatic gas over oil, etc.

Manufacturer: ZIPO VALVE & PUMP CO., LTD
