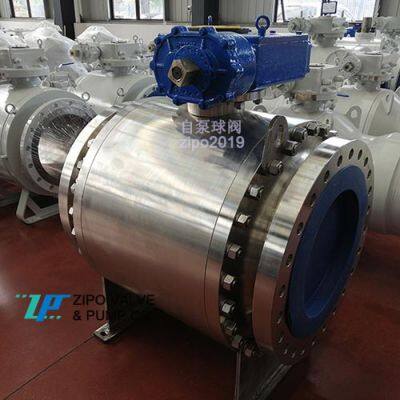

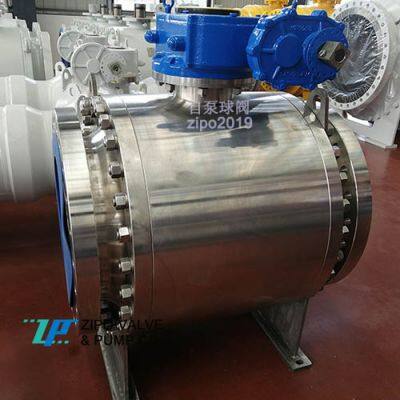

ZIPO corrosion-resistant duplex stainless steel offshore ball valve

ZIPO corrosion-resistant duplex stainless steel offshore ball valve

Contact: Email: zipopvf@163.com Wechat: zipo2019; QQ: 2191417589; Mobile: 18081659672

Please inform us of the accurate size, pressure class, connection ends, operation actuator, main material, medium and other parameters, before consulting or purchasing the product. Thanks!

The stainless steel ball valve can be closed tightly by 90 degree operation and small rotation torque. The completely equal inner cavity of the valve body provides a small resistance and straight passage for the medium. The main features of ball valve are compact structure, easy operation and maintenance. Stainless steel ball valve can be used to control the flow of air, water, steam, corrosive medium, mud, oil, liquid metal and radioactive medium. The ball valve body can be integral or combined. This kind of valve should be installed horizontally in the pipeline. Classification of stainless steel ball valve: pneumatic operated stainless steel ball valve, electric operated stainless steel ball valve, manual operated stainless steel ball valve. Stainless steel ball valve main material is 304/316/321/2205/F51/F53

Stainless steel ball valve material has corrosiveness, widely used in petroleum, chemical, power generation, paper, atomic energy, aviation, rocket and other industries

Advantages of stainless steel ball valve:

1. The resistance coefficient of the fluid is equal to that of the same length of pipe segment.

2. Simple structure, small volume and light weight.

3. It is compact and reliable. At present, the sealing surface material of ball valve is widely used in plastic/rubber/PTFE/Nylon/Viton/PPL, with good sealing performance. It has also been widely used in vacuum system.

4. It is easy to operate and fast to open and close. It only needs to rotate 90 ° from full open to full close, which is convenient for remote control.

5. It is convenient for maintenance, ball valve structure is simple, sealing ring is generally movable, and disassembly and replacement are more convenient.

6. When the valve is fully open or closed, the sealing surface of the ball and the valve seat is isolated from the medium. When the medium passes through, the valve sealing surface will not be eroded.

7. It has a wide range of applications, ranging from small diameter to large diameter from high vacuum to high pressure.

Parameter of stainless steel ball valve

1. Nominal pressure: 1.0-42.0MPa, ANSI class 150-2500;

2. Nominal diameter: DN6-1200, NPS 1 / 4~48;

3. Connection mode: flange (RF/RTJ), butt welding (BW), thread (NPT), socket welding (SW), etc;

4. Applicable temperature: - 196 ℃ ~ 540 ℃;

5. Driving mode: manual, worm gearbox, pneumatic, electric, hydraulic, pneumatic-hydraulic, electro-hydraulic;

6.Valve body materials: CF8 (304), CF3 (304L), CF8M (316), CF3M (316L), 2205, 2507,F51, F53, which can be respectively applied to water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other medium.

Manufacturer: ZIPO VALVE & PUMP CO., LTD
