Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > SEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture

SEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture

SEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture photo-1

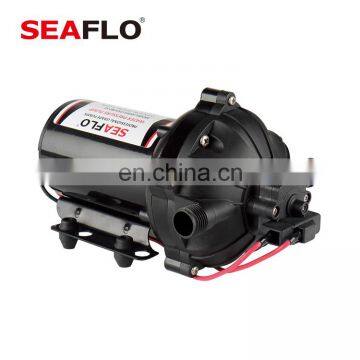

SEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture photo-2

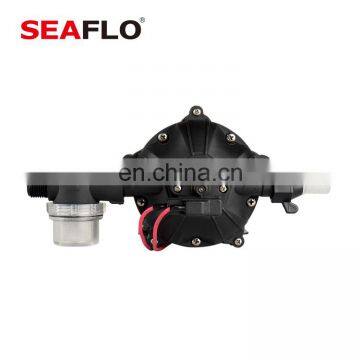

SEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture photo-3
SEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture photo-4
SEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture photo-5
SEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture photo-6
US$ 29.9 - 35 MOQ: 8 Pieces
Key Specifications
Get Latest Price
Brand Name:
SEAFLO
Model Number:
SFDP2-050-060-51
Application:
Fluid Transferring, Pressurized, Circulation
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Brand Name SEAFLO
Model Number SFDP2-050-060-51
Power Electric
Usage Water
Structure Diaphragm Pump
Pressure Low Pressure
SEAFLO Profile

SEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture

Product Description
Features & Benefits



1.Flow rate up to 5.0 GPM [19.0 LPM]
3.Automatically turn on and off
5.Quiet operation
7.On demand use

2.Can run dry without damage

4.Self priming & built-in check valve

6.Chemically resistant materials

8.Designed for spraying and fluid transfer



Product NameSEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture
Pump Type5 Chambers Positive Displacement Diaphragm Pump
Max Flow Rate5.0 GPM [19.0 LPM]
Max Pressure60 PSI [4.2 Bar]
Voltage24 VDC, and 12V, 115V, 230V are available
Max Amp17.0 A
Fuse25.5 A
Switch TypeOn Demand [Cut-off Switch], and none switch is available
Diaphragm MaterialSantoprene
Valve MaterialViton, and EPDM is available
Duty CycleContinuous
Self Priming6' [1.8 m] suction
Max Fluid Temp140 °F [60 °C]
Inlet & Outlet Port3/4" Quick Connect, and contact us for more ports
Lead13" [33 cm] 14 AWG lead with 2-Pin connector



The 51-Series is our Heavy-Duty water pump. It provides high volume water flow with reduced pump cycling, thanks to the large five-chamber diaphragm. These models are designed to run on water systems with no accumulator tank necessary, and up to five fixtures! It is also suited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. It provides up to 5.0 gallons per minute. The 51-Series pumps are self-priming, and can run dry without damage, performance reliable and low current. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when the faucet is opened and closed. They are easy to install service and winterize.



Product Show

SEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture

Dimensions



SEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture


Performance


SEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture


Motor Heat Rise



lacking

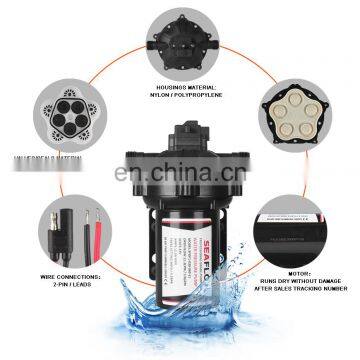

Product Details

SEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture

Standard Pump Configurations

ModelVoltage

Open Flow

GPM [LPM]

Cut off Pressure

PSI [BAR]

Max DrawDiaphragmValve
SFDP1-030-060-5112 V3.0 [11.5]60 [4.1]10.0 ASantopreneViton
SFDP2-030-060-5124 V3.0 [11.5]60 [4.1]5.5 ASantopreneViton
SFDP1-040-060-5112 V4.0 [15.0]60 [4.1]13.0 ASantopreneViton
SFDP2-040-060-5124 V4.0 [15.0]60 [4.1]

7.0 A

SantopreneViton
SFDP1-050-060-5112 V5.0 [19.0]60 [4.1]17.0 ASantopreneViton
SFDP2-050-060-5124 V5.0 [19.0]60 [4.1]9.0 ASantopreneViton



OEM/ODM service: Cut off pressure can be adjusted from 17 PSI [1.17 Bar] to 70 PSI [4.8 Bar]; Open flow can be adjusted from 0.8 GPM [3.0 LPM] to 5.3 GPM [20.0 LPM]. Material can be adjusted according to your requirement.



Application

SEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture

Packaging & Shipping

Package Infomation

 Unit Pump Weight6.09 lbs [2.76 kg]
Selling Unit Size (L x W x H)

11.18" x 6.26" x 5.51" [28.4 x 15.9 x 14.0 cm]

Selling Unit Weight6.66 lbs [3.02 kg]
Master Carton Qty6 pcs / carton
Master Carton Size (L x W x H)

19.69" x 11.81" x 11.20" [50.0 x 30.0 x 31.0 cm]

Master Carton Weight42.51 lbs [19.28 kg]



SEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture

Company Information

SEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For AgricultureSEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For AgricultureSEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture

More Products

SEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture



SEAFLO 24V DC/AC 19LPM 60PSI DC Surface Solar Panel Water Pump For Agriculture

FAQ

Q: What is your MOQ?
A: 100 pieces in general, but no MOQ requirement for sample testing.



Q: Do you accept OEM/ODM service?
A: Yes. We are also the OEM/ODM supplier for many famous companies, such as Volvo, Bunnings etc.



Q: How can I pay for my order?
A: Please send order details to us. We will issue an order on Alibaba Trade Assurance, and send you the payment link.



Q: What is your terms of payment?
A: Payment≤3000USD, 100% in advance. Payment≥3000USD, 30% T/T in advance, balance against the copy of B/L. If you have another question, pls feel free to contact us.



Q: What is the delivery time?
A: It depends on the order quantity. It usually takes 15-25 days upon receipt of your 30% deposit by T/T. Sample can be delivered within 7 days.



Q: Can I buy different products in one container?
A: Yes, you can mix different models of pumps in one container.



Q: What is your warranty?
A: 1 year, and within 24 hours reply will be provided to solve customers' problems.



Q: What is your port of loading?
A: Xiamen port.



Q: Do you have oversea agents?
A: We dont have oversea agents for Agriculture and Industrial. But for SEAFLO pumps applied in Marine & RV, we have agents in USA, UK, Denmark, Spain, Australia, Turkey, Yemen, Lebanon etc.



Q: Can I get more info?
A: Please visit or www.seafloin.en.china.cn for more information.
