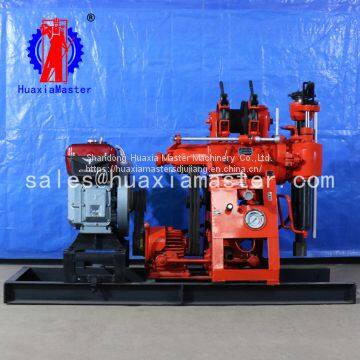

Hydraulic Core Drilling RigXY-100 Hydraulic Core Drilling Rig photo-2

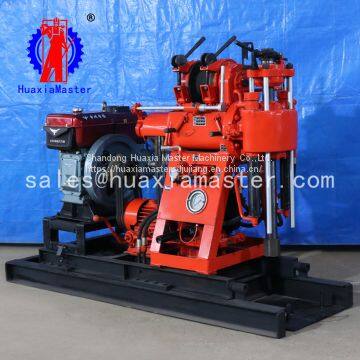

Hydraulic Core Drilling RigXY-100 Hydraulic Core Drilling Rig photo-3

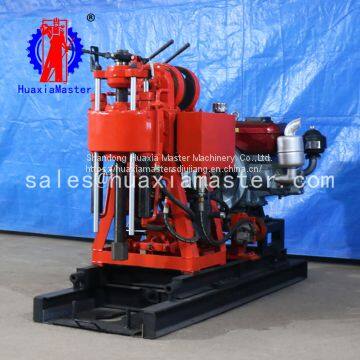

Hydraulic Core Drilling RigXY-100 Hydraulic Core Drilling Rig photo-4
US$ 1000 - 10000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HuaxiaMaster
Place of Origin:
China
Type:
Core Drilling Rig
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HuaxiaMaster
Place of Origin China
Type Core Drilling Rig
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Warranty 6 months
Weight 610kg
Dimension(L*W*H) 2.1*0.9*1.3m
Power Type Gasoline
Usage Ore
Condition New



XY-100 hydraulic core drilling rig


1. Applications of XY-100 hydraulic core drilling rig


XY-100 hydraulic core drilling rig is widely used for core drilling rig, geological exploration and prospecting, geothermal wells, blast-hole, irrigation projects, etc.


2. Specifications of XY-100 hydralic core drilling rig





Drilling depth



110




Maximum open hole caliber



220mm




End hole caliber



75mm




Drill rod caliber



50mm  /42mm




Drilling angle



90




Drilling rig weight (exclude diesel engine)



610kg




Unity machine dimensions



2.1*0.9*1.3m




Spindle




Spindle speed



130/300/480/730/830/1045 r/min




Spindle stroke



 450mm




Hoist




Max. lifting capacity with single rope



1600kg




Lifting speed with single rope



1.06/0.67/0.32 m/s




Wire  rope caliber



13mm




Wire  rope cubic measure



35mm




Hug floodgate caliber



254mm




Hug floodgate belt width



50mm




Distance between drill and hole



230mm




Mud pump




Type



Horizontal single-urn twin-action




Displacement (with diesel engine/electric motor)



170l/min




Max. pressure



1.5mpa




Work pressure



0.7mpa




Power




Diesel engine



S1100




Electric motor



Y160M-4  / 10KW








Product Tags: hydraulic core drill , core drill bit , 100m drilling rig
