Home > Products > Exploration Drilling Rig > Hydraulic Core Drilling RigXY-200 hydraulic core drilling machine
Hydraulic Core Drilling RigXY-200 hydraulic core drilling machine
- 1200 Bag / Bags per Month
- QINGDAO
- T/T L/C D/P D/A
- 7 days
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
- 1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
Brand Name: | HuaxiaMaster | Place of Origin: | China | Type: | Core Drilling Rig |
Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas | Warranty: | 6 months |
Power Type: | Gasoline | Condition: | New |
Product Description

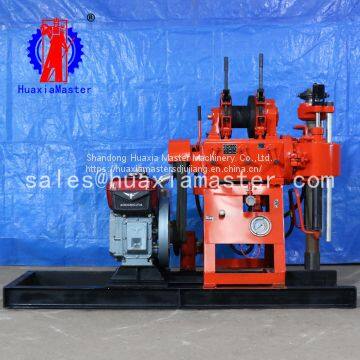

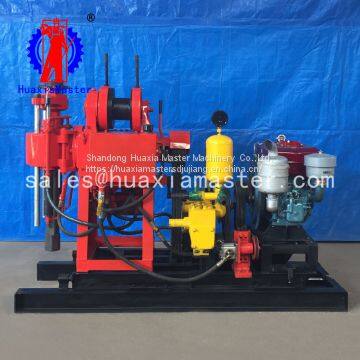

XY-200 hydraulic core drilling rig
1. Applications of XY-200 hydraulic core drilling rig
Geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.
2. Parameters of XY-200 hydraulic core drilling rig
Maximum opening diameter | 400mm |
Maximum borehole depth | 200m |
Diameter of the end hole | 75mm |
Borehole dip angle | 90-75° |
Machine overall size | 2.75*0.95*1.60m |
Drill pipe diameter | 50mm |
Weight of drill rig diameter of drill pipe (without power) | 760kg |
A vertical scroll of painting | |
Shaft rotation speed | 71/142/310/20r/min |
Vertical axis stroke | 450mm |
Windlass | |
Maximum lifting weight of single rope | 2008kb |
Drum lifting speed | 17/35/75/160 rm/s |
Wire rope diameter: | 13mm |
Wire rope capacity | 35mm |
Width of sluice | 70mm |
Mud pump | |
Type: horizontal single cylinder double action | flow:180L/min |
Maximum pressure | 1.5mpa |
Working pressure | 0.7mpa |
Inlet size | 50mm |
Outlet pipe diameter | 45mm |
Power | |
Diesel oil | 22hp |
Rated speed | 2200r/min |
Electric machinery | 15kw |
Rated speed | 1460r/min |
