Soil Sampling Drilling RigQTZ-1

Name: Soil Sampling Drilling RigQTZ-1
Brand: HuaxiaMaster
SKU: 162618991
Availability: InStock

US$ 1000 - 10000 MOQ: 1 Set

Key Specifications

Brand Name:

HuaxiaMaster

Place of Origin:

China

Type:

Core Drilling Rig

Shandong Huaxia Master Machinery Co.,Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

7 days

Brand Name HuaxiaMaster

Place of Origin China

Type Core Drilling Rig

Certification ISO9001

After-sales Service Provided Engineers available to service machinery overseas

Warranty 6 months

Power Type Gasoline

Usage Ore

Condition New

environment investigation.
Tailing pond investigation, archaeological investigation, physical chemistry and secondary halo sampling.

3. Technical parameters of QTZ-1 Gasoline engine portable soil sampling drilling rig

QTZ-1 Gasoline engine portable soil sampling drilling rig
Power	power	2.8hp
	fire mode	backflush pull rope
	oil consumption	0.5l/h
Impact times		1500r /min
Impact energy		20J-55J
Core depth		5m-10m
Host weight		23kg

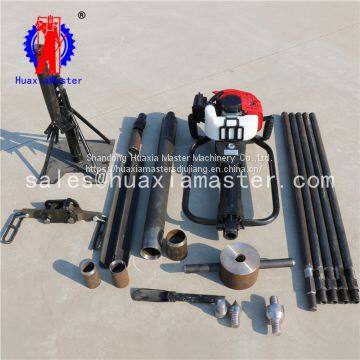

4.Configuration list of QTZ-1 Gasoline engine portable soil sampling drilling rig

Item	Parameter	Unit	Quantity
Gasoline engine portable soil sampling drilling rig	QTZ-1	platform	1
Side buckle impact take over	34*200mm	pc	1
Square collar	34*170mm	pc	4
Square buckle drill pipe	34*910mm	pc	5
Square buckle reducing nipple	54/34	pc	1
Collar	54*140mm	pc	1
Open tube	54*600mm	pc	1
Inner edge pipe boots	54*90mm	pc	1
Outer edge pipe boots	54*90mm	pc	1
Square buckle reducing nipple	73/34	pc	1
Collar	73*140mm	pc	1
Open tube	73*600mm	pc	1
Inner edge pipe boots	73*90mm	pc	1
Outer edge pipe boots	73*90mm	pc	1
Portable sounding hammer	10kg	pc	1
Square contact probe	34*98mm	pc	1
Square buckle and pull the counter cap		pc	1
Puller	Three force arm	platform	1
The ratio of oil	25:1	pc	1
Tool kit		set	1
