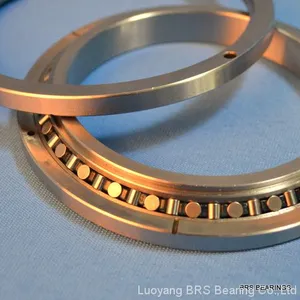

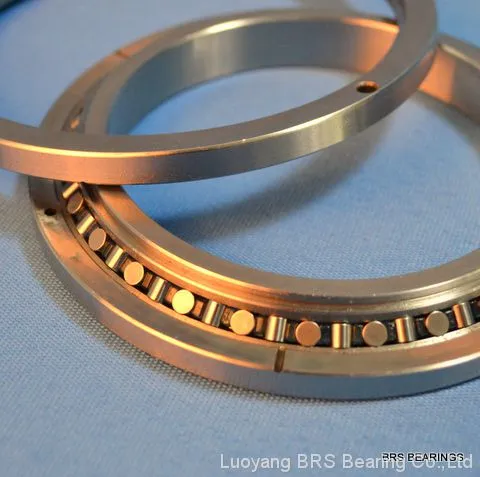

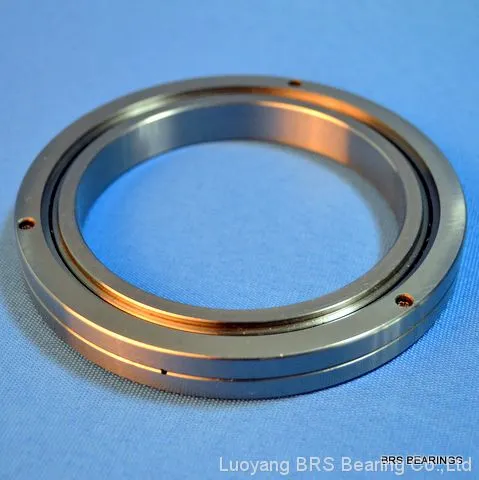

RB6013 Crossed Roller Bearings 60*90*13mm
US$ 10 - 500
MOQ: 5 Sets
Key Specifications
Get Latest Price
Brand Name:
RIGBRS
Place of Origin:
China
Model Number:
RB6013/CRB6013/NRXT6013
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
45 days
Related Products
-
RB8016 Crossed Roller Bearings 80*120*16mmUS$ 10 - 500MOQ: 5 Sets -
RB10020UU Crossed Roller Bearings 100*150*20mmUS$ 10 - 500MOQ: 5 Sets
-
RB11015UU Crossed Roller Bearings 110*145*15mmUS$ 10 - 500MOQ: 5 Sets
-
RB11020 Crossed Roller Bearings 110*160*20mmUS$ 10 - 500MOQ: 5 Sets
-
RB20030 Crossed Roller Bearing 200*280*30mmUS$ 10 - 500MOQ: 5 Sets
Brand Name
RIGBRS
Place of Origin
China
Model Number
RB6013/CRB6013/NRXT6013
Feature
Cross Roller
Seals Type
sealed both sides
Outside Diameter
36, 220
Bore Size
20, 160
Gear Options
Nongeared
RB6013 UU crossed roller bearings specifications
size: 60x90x13mm
structrue: single row crossed cylindrical roller bearings with separable outer ring and integrated inner ring.
sealing: sealed both sides
clearance: CC0/C0
precision: P5/P4
rotation part: inner ring rotation
load direction: axial/radial/moment loads
lubrication type: grease lubrication
RB6013UU cross roller ring has thin section(slim type), so it's suited for where space is limited, and inner ring running accuracy is required.
RB series crossed roller bearing provides high and stable running accuracy, suited for precision detecting instrument, robot joints, direct drive torque motor, high-precision turntable, etc.
RB crossed roller ring models
| Model No. | d (mm) | D (mm) | B (mm) | C (KN) | Co (KN) | kg |
| RB2008 | 20 | 36 | 8 | 3.23 | 3.1 | 0.04 |
| RB2508 | 25 | 41 | 8 | 3.63 | 3.83 | 0.05 |
| RB3010 | 30 | 55 | 10 | 7.35 | 8.36 | 0.12 |
| RB3510 | 35 | 60 | 10 | 7.64 | 9.12 | 0.13 |
| RB4010 | 40 | 65 | 10 | 8.33 | 10.6 | 0.16 |
| RB4510 | 45 | 70 | 10 | 8.62 | 11.3 | 0.17 |
| RB5013 | 50 | 80 | 13 | 16.7 | 20.9 | 0.27 |
| RB6013 | 60 | 90 | 13 | 18 | 24.3 | 0.3 |
| RB7013 | 70 | 100 | 13 | 19.4 | 27.7 | 0.35 |
| RB8016 | 80 | 120 | 16 | 30.1 | 42.1 | 0.7 |
| RB9016 | 90 | 130 | 16 | 31.4 | 45.3 | 0.75 |
| RB10016 | 100 | 140 | 16 | 31.7 | 48.6 | 0.83 |
| RB10020 | 100 | 150 | 20 | 33.1 | 50.9 | 1.45 |
| RB11012 | 110 | 135 | 12 | 12.5 | 24.1 | 0.4 |
| RB11015 | 110 | 145 | 15 | 23.7 | 41.5 | 0.75 |
| RB11020 | 110 | 160 | 20 | 34 | 54 | 1.56 |
| RB12016 | 120 | 150 | 16 | 24.2 | 43.2 | 0.72 |
| RB12025 | 120 | 180 | 25 | 66.9 | 100 | 2.62 |
| RB13015 | 130 | 160 | 15 | 25 | 46.7 | 0.72 |
| RB13025 | 130 | 190 | 25 | 69.5 | 107 | 2.82 |
| RB14016 | 140 | 175 | 16 | 25.9 | 50.1 | 1 |
| RB14025 | 140 | 200 | 25 | 74.8 | 121 | 2.96 |
| RB15013 | 150 | 180 | 13 | 27 | 53.5 | 0.68 |
| RB15025 | 150 | 210 | 25 | 76.8 | 128 | 3.16 |
| RB15030 | 150 | 230 | 30 | 100 | 156 | 5.3 |
| RB16025 | 160 | 220 | 25 | 81.7 | 135 | 3.14 |
