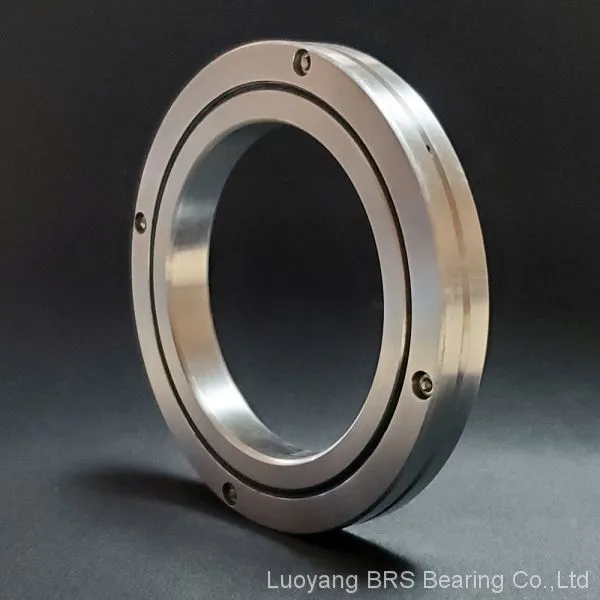

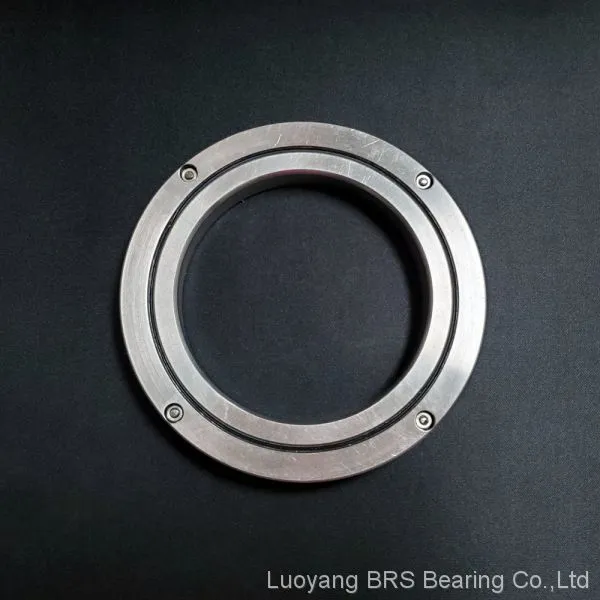

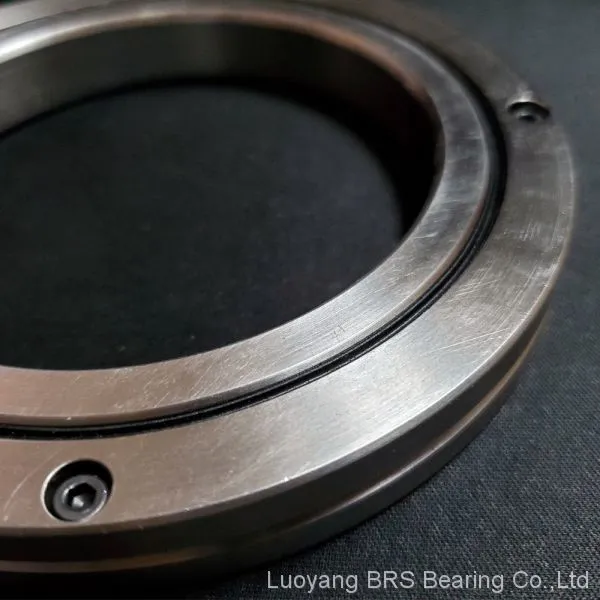

RB11015UU Crossed Roller Bearings 110*145*15mm
US$ 10 - 500
MOQ: 5 Sets
Key Specifications
Get Latest Price
Brand Name:
RIGBRS
Place of Origin:
China
Model Number:
RB11015/CRB11015/NRXT10020
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
45 days
Related Products
-
RB11020 Crossed Roller Bearings 110*160*20mmUS$ 10 - 500MOQ: 5 Sets -
RB20030 Crossed Roller Bearing 200*280*30mmUS$ 10 - 500MOQ: 5 Sets
-
RB20035 Crossed Roller Bearing 200*295*35mmUS$ 10 - 500MOQ: 5 Sets
-
RB19025 Crossed Roller Bearing 190*240*25mmUS$ 10 - 500MOQ: 5 Sets
-
RB12025 Crossed Roller Bearings 120*180*25mmUS$ 10 - 500MOQ: 5 Sets
Brand Name
RIGBRS
Place of Origin
China
Model Number
RB11015/CRB11015/NRXT10020
Feature
Cross Roller
Seals Type
sealed both sides
Outside Diameter
36, 220
Bore Size
20, 160
Gear Options
Nongeared
RB11015 UU crossed roller bearings specifications
size: 110*145*15mm
structrue: single row crossed cylindrical roller bearings with separable outer ring and integrated inner ring.
sealing: sealed both sides
clearance: CC0/C0
precision: P5/P4
rotation part: inner ring rotation
load direction: axial/radial/moment loads
lubrication type: grease lubrication
RB11015UU cross roller ring has thin section(slim type), so it's suited for where space is limited, and inner ring running accuracy is required.
RB series crossed roller bearing provides high and stable running accuracy, suited for precision detecting instrument, robot joints, direct drive torque motor, high-precision turntable, etc.
RB crossed roller ring models
| Model No. | d (mm) | D (mm) | B (mm) | C (KN) | Co (KN) | kg |
| RB2008 | 20 | 36 | 8 | 3.23 | 3.1 | 0.04 |
| RB2508 | 25 | 41 | 8 | 3.63 | 3.83 | 0.05 |
| RB3010 | 30 | 55 | 10 | 7.35 | 8.36 | 0.12 |
| RB3510 | 35 | 60 | 10 | 7.64 | 9.12 | 0.13 |
| RB4010 | 40 | 65 | 10 | 8.33 | 10.6 | 0.16 |
| RB4510 | 45 | 70 | 10 | 8.62 | 11.3 | 0.17 |
| RB5013 | 50 | 80 | 13 | 16.7 | 20.9 | 0.27 |
| RB6013 | 60 | 90 | 13 | 18 | 24.3 | 0.3 |
| RB7013 | 70 | 100 | 13 | 19.4 | 27.7 | 0.35 |
| RB8016 | 80 | 120 | 16 | 30.1 | 42.1 | 0.7 |
| RB9016 | 90 | 130 | 16 | 31.4 | 45.3 | 0.75 |
| RB10016 | 100 | 140 | 16 | 31.7 | 48.6 | 0.83 |
| RB10020 | 100 | 150 | 20 | 33.1 | 50.9 | 1.45 |
| RB11012 | 110 | 135 | 12 | 12.5 | 24.1 | 0.4 |
| RB11015 | 110 | 145 | 15 | 23.7 | 41.5 | 0.75 |
| RB11020 | 110 | 160 | 20 | 34 | 54 | 1.56 |
| RB12016 | 120 | 150 | 16 | 24.2 | 43.2 | 0.72 |
| RB12025 | 120 | 180 | 25 | 66.9 | 100 | 2.62 |
| RB13015 | 130 | 160 | 15 | 25 | 46.7 | 0.72 |
| RB13025 | 130 | 190 | 25 | 69.5 | 107 | 2.82 |
| RB14016 | 140 | 175 | 16 | 25.9 | 50.1 | 1 |
| RB14025 | 140 | 200 | 25 | 74.8 | 121 | 2.96 |
| RB15013 | 150 | 180 | 13 | 27 | 53.5 | 0.68 |
| RB15025 | 150 | 210 | 25 | 76.8 | 128 | 3.16 |
| RB15030 | 150 | 230 | 30 | 100 | 156 | 5.3 |
| RB16025 | 160 | 220 | 25 | 81.7 | 135 | 3.14 |
