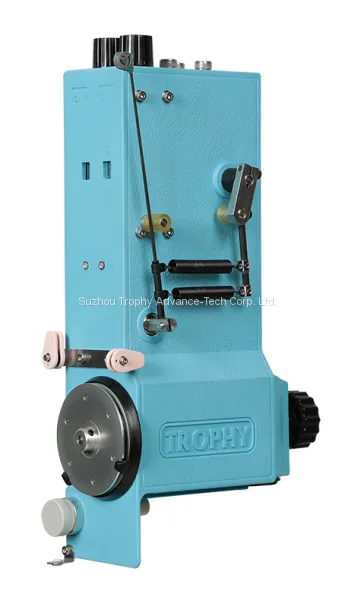

The DS series pulse servo tensioner features pulse motor as the source of torque control torque, its sensitive and quick response feedback control system, providing precise, stable and consistent tension for high speed quality winding.
selected models of this series come with real-time tension measurement and display, provides a clear and convenient way to observe the winding tension, aiding in better control of product quality.
Advantages:
- High speed operation under high torque conditions, Stable tension
- Wide selection of wire travel speed, maximum 12 m/s
- Clear LED status indicators
- Dual scale display, easy adjustment of main tension and second tension
- Dual spring tension control, wide tension range
- Built-in Adaptive Speed Control
- Built-in wire break detection and alarm output
DS-TK series
Part Number |
Tension Range |
Max. Wire Travel Speed |
Rated Current |
Suitable Wire Size |
DS-TK-C07-45S200 |
1-200g |
7m/s |
1.2A |
0.01-0.18mm |
DS-TK-C07-45J600 |
40-600g |
7m/s |
2.0A |
0.05-0.35mm |
DS-TK-C12-45S400 |
20-400g |
12m/s |
2.5A |
0.02-0.25mm |
DS-TK-C12-45J600 |
40-600g |
12m/s |
3.0A |
0.05-0.40mm |
