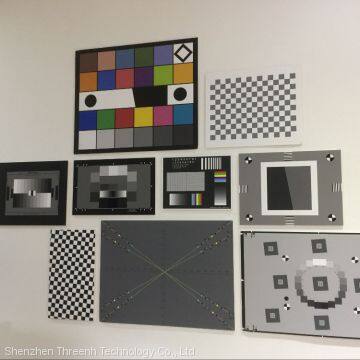

Sine Image ISO 12233 Standard SFR Plus Chart 3:2 Camera Lens Test Chart Customized Available

Shenzhen Sine Image Technology CO., LTD. (Sine Image) is owned by Five Su, invested with the core technology and built by the advantages of resources by 3NH and Tilo. With leading technology, products and best service, Sine Image is more professional and large-scale.

Business scope of Sine Image includes R&D, production and sales of camera, lens test charts, and test equipment; camera and lens test software, and image quality analysis software development; camera module focusing platform, auto-testing platform, and whole test solution offer; intelligent recognition, machine vision and gtrating etc technology research and development.

All Sine Image test charts (black and white & color) can be customized. We set up a complete product portfolio and customer portfolio. Every test chart is strictly tested by high standard then deliver out of warehouse, and we ensure the products have absolute consistency.

PRODUCT DETAILS

The SFRplus test chart can be used with the SFRplus module in Imatest 3.2 or later to measure MTF, lateral chromatic aberration, distortion, tonal response, and color accuracy. The SFRplus module features fully automated region-of-interest detection. The SFRplus chart offers significant advantages over commonly used charts such as the ISO 12233 chart, including 1) much less wasted area, 2) the ability to produce a map of sharpness over the sensor surface, 3) better measurement accuracy due to the lower contrast, and 4) full support for automated testing.

This chart is recommended for most standard testing setups and devices. Choose a size based on your sensor and setup limitations.

Options include:

Grid: 5x9 grids are recommended for for typical DSLR formats with aspect ratios of 3:2

Paper Size and Active Area Options

This chart is available in three sizes. It is recommended that the medium sized charts be used to test imaging systems with sensors up to 12 MP, the large charts be used for testing of sensors up to approximately 24 MP, and the extra-large charts be used for sensor sizes above 24 MP.

Paper Size (Including Margin)

• Active Area

  The active area of the chart includes white space above and below the top and bottom distortion bars. It is slightly larger than the printed area, which is bounded by the distortion bars on top and bottom. White space is included in active area because test images of the chart must include this white space in order to enable automated processing in SFRplus software.

  	5x9
  Medium	22
  Large	33
  X-Large	42

• Paper/ink type: Matte paper/ink can be used to reduce reflected light and allow for easier lighting setups

• Contrast levels: 4:1 contrast ratio for new ISO standard compliance

• Color chart: a 20 patch color chart.
