Description

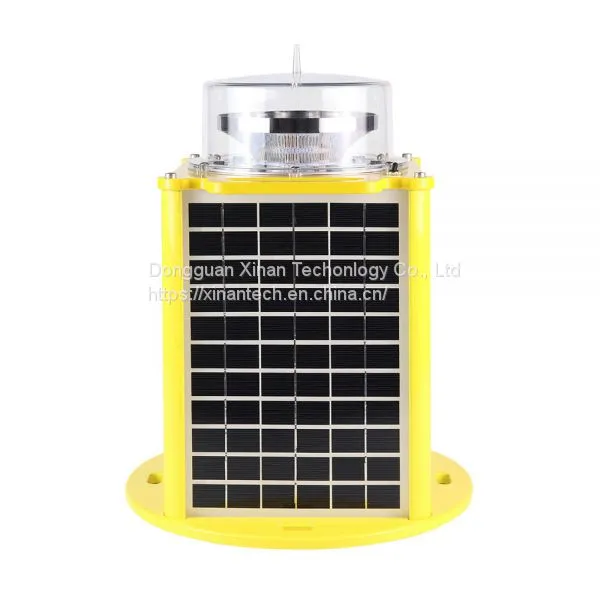

GS-LS/HT Portable LED marine lantern adopts low-light but high efficient solar panels integrated design, cooperate with solar lead-acid battery as power supply.
The battery adopts advance power management system, which can provide good protection when battery ’s voltage and temperature too high or too low, so it can improve the battery’s service life efficiently.
Control circuit adopts micro-power consumption, which reduce controlling circuit ’s power consumption.
Light source adopts dedicated LED chip, which has specific of high light intensity, low power consumption, long service life and so on.
Adopting the design of the portable design, which is convenient for carrying and transportation, especially suitable for the occasions of the temporary channel, the airport runway, the tower, etc.
Lampshade adopts glass material, which can corrosion resistance, anti-UV anti-shock.
Name |
Parameter |
Name |
Parameter |
Type |
GS-LS/HT |
Light Source Service Life |
＞100000 hours |
Power Supply |
Mono Crystalline Silicon Solar Panel |
Optional Emitting Color |
Red, White, Yellow, Green |
Battery Capacity |
12V24AH |
Battery Type |
Lead-Acid Battery |
Solar Panel Power |
8W×4 |
Battery Life |
2 Years |
Solar Panel Voltage |
16.5V |
Solar panel life |
＞20 Years |
Power Consumption |
≤ 20W |
Vertical Divergence |
≥ 8° |
Visual Range |
11-20NM |
Horizontal Out-put |
360° |
Light Source |
LED |
Overall Size(mm) |
325mm×325mm×366mm |
Storage Temperature |
-40℃～70℃ |
Installation Size |
270mm x M8 (4holes) |
Working Temperature |
-40℃～50℃ |
Anti-Wind Ability |
80m/s |
Weight |
15kg |
Working Mode |
350 Light Characteristics |
Continuous Working Time In Rainy Day |
> 15days ( work 10 hours a day) |
Optically Controlled Ambient Brightness |
300LUX ± 100LUX |
IP Standard |
IP67 |
Standard |
IALA |
Optional |
GPS sync |
