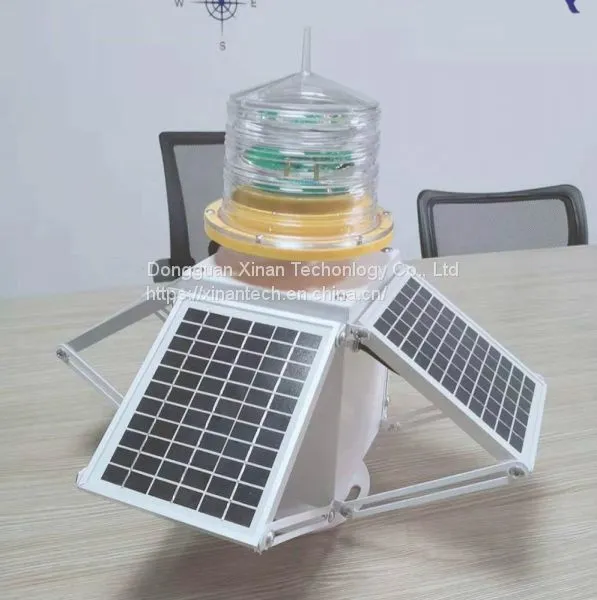

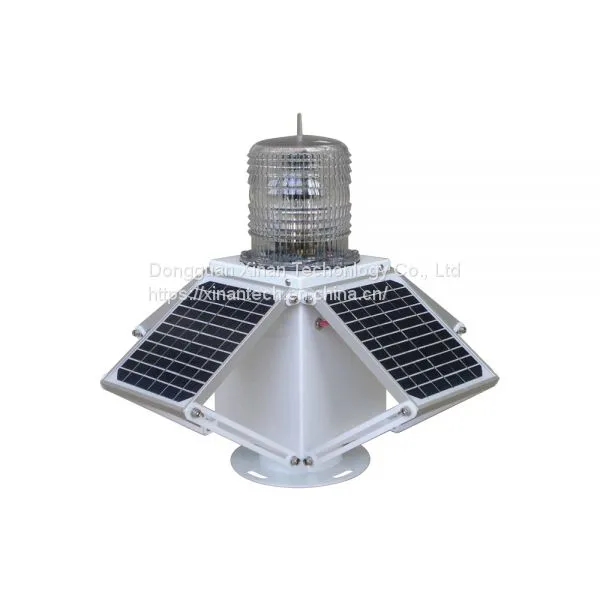

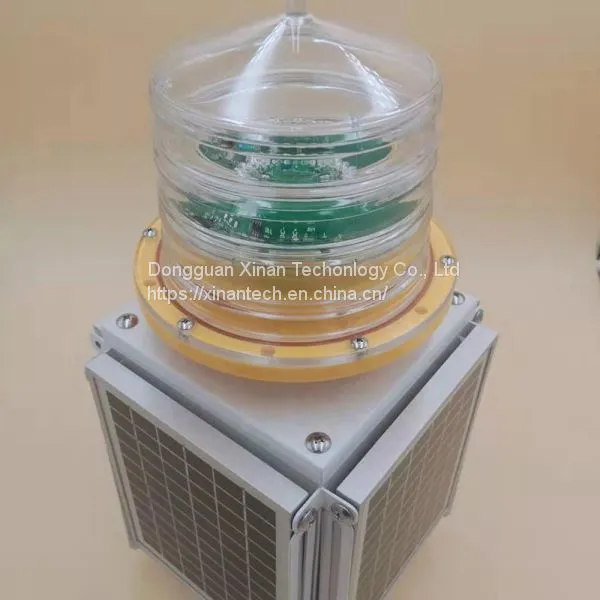

Help CenterAdjusted Solar Panel 6~10nm Solar Marine Navigation Led Light
Related Products
-
1~6nm Solar Marine Navigation Led LightUS$ 279 - 299MOQ: 2 Pieces -
1~5nm Solar Marine Navigation Led LightUS$ 199 - 399MOQ: 2 Pieces
-
High Quality Self Contain 350 Light Characteristics Solar Marine Light Waterway Warning LightUS$ 59 - 89MOQ: 2 Pieces
-
5nm Integrated Built in Replaceable Battery Waterway Signal Light/ Marine LightUS$ 239 - 299MOQ: 2 Pieces
-
Hot Selling Dock Dedicated Solar Integrated LED Marine Beacon LightUS$ 179 - 259MOQ: 2 Pieces
Description
GS-LS/B LED Solar Powered Marine Lanterns used advanced structure design, adopts 4 groups of solar panels which can angle adjustable and high efficiently, co-operate with solar dedicated battery as power supply.
Advanced power management system will be used to charge the power in a comprehensive protection in order to save the service life of battery, when it is under the condition of short-voltage or over-voltage or its temperature is too high or too low.
Management circuits adopt with low power dissipation control chip,which can reduce circuit power consumption, The light source adopts imported LED chip, which has the specific of high intensity, low power consumption, long service life and so on.
This product adopt with 316L stainless steel materials of the lacquer that bake.it is very convenient for installation and transportation.
Lampshade adopt with PC material, which can resist corrosion, anti-UV, anti-shock and so on.
Name |
Parameter |
Name |
Parameter |
Type |
GS-LS/B |
Light Source Life |
＞100000 hours |
Power Provider |
Mono-crystalline silicon solar panel |
Optional Emitting Light Colors |
Red, Amber Yellow, Green, Blue, White |
Battery Capacity |
12V14AH |
Battery Type |
Special battery |
Solar panel power |
6W x 4pcs |
Solar panel voltage |
16.5V |
Power Consumption |
≤2W |
Vertical Divergence |
＞8° |
Visual Range |
6~12 NM |
Horizontal Out-put |
360° |
Light Source |
LED |
Overall Size(mm) |
522×522×472 mm |
Working temperature |
-40℃~70℃ |
Installation Size(mm) |
Pitch circle 160 mm distributed 4M12 holes |
Storage temperature |
-40℃～70℃ |
Working mode optional |
350 lights Characteristics |
Sun Switch Illumination Threshold |
300LUX±100LUX |
Wind-speed Ability |
80m/s |
Continuous Burning Time in rainy days |
＞20 days (12 hours a day) |
IP Protection |
IP65 |
Weight |
8.5kg |
Remote monitoring |
Optional |
About us

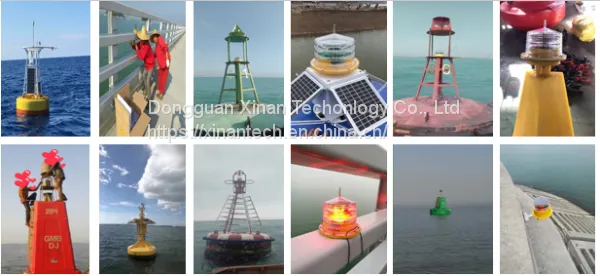

Dongguan Xinan Technology Co.,Ltd. is a high technology enterprise engaging in research, production, sales and after sale services for a wide range of Aviation Obstruction Light, LED Warning Light, Heliport Light, LED Marine Lanterns, Solar Garden/Street Light. We are a domestic market leader in the field of navigation lights and a supporter of green and safe emissions. Our products are widely used in domestic and overseas market in many fields,eg.Civil Airports, Helipads, Communication Towers, Factory, Power Plant Chimneys, Television Tower, Port, Bridges, and High-rise buildings, Buoy in sea, etc.
