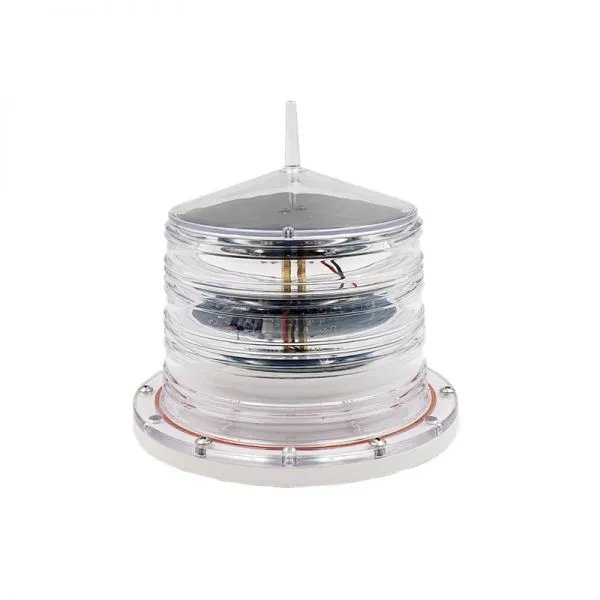

Help CenterAutomatically ON/OFF White Color Light Source and Base Solar LED Buoy Light
Related Products
-
Blue Base and Light Source 4nm Solar LED Beacon Light for DockUS$ 59 - 89MOQ: 2 Pieces -
Blue Base Same as Emitting Color 4nm Solar LED Marine Navigation LightUS$ 59 - 89MOQ: 2 Pieces
-
White Color Light Source Recognized With Base Solar LED Buoy Light for ShipUS$ 59 - 89MOQ: 2 Pieces
-
Execllent Waterproof Green Base to Light Source Solar Led Marine Signal LightUS$ 59 - 89MOQ: 2 Pieces
-
Most Popular Red Emitting Color and Base Self Contained 350light Characters Solar Marine Light for Ship/ferry/vesselUS$ 59 - 89MOQ: 2 Pieces
Description
GS-LS/E LED Marine lantern adopts solar panel whose photoelectric conversion efficiency is high to 25% integrated design, cooperate with solar dedicated lithium iron phosphate battery as power supply.
Control circuit adopts micro-power consumption single chip to control the chip,which can control battery’s charge and discharge statue; Meanwhile, it can reduce controlling circuit ’s power consumption.
Light source adopts high efficient LED chip, which has specific of high light intensity, low power consumption, long service life and so on.

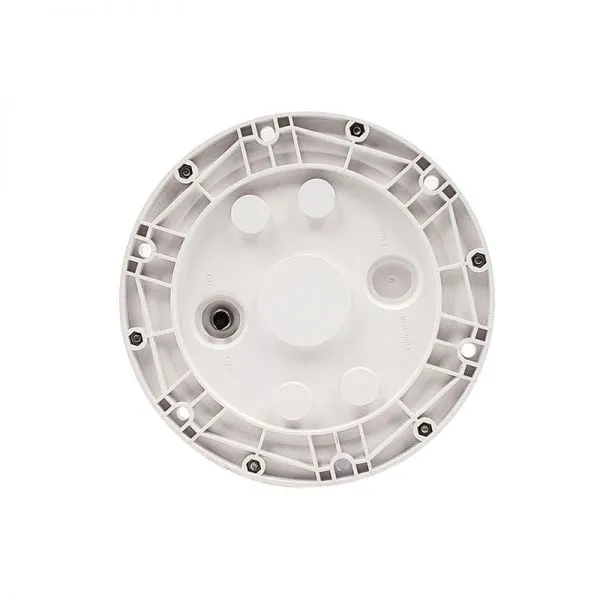

Lampshade adopts PC material, which can corrosion resistance, anti-UV anti-shock. The base adopts marine-grade dedicated plastic material, it can apply to seaways and chemical plant that have hostile and strong corrosive environment.
Name |
Parameter |
Name |
Parameter |
Type |
GS-LS/E |
Light Source Life |
＞100000 hours |
Power Provider |
Mono-crystalline silicon solar panel |
Optional Emitting Light Colors |
Red, Amber Yellow, Green, Blue, White |
Battery Capacity |
3.2V3.3AH |
Battery Type |
Replaceable lithium iron phosphate battery |
Battery lifespan |
＞5years |
Solar panel voltage |
5.5V |
Solar panel Power Consumption |
2W |
Solar panel lifespan |
＞20years |
Power Consumption |
≤2W |
Vertical Divergence |
＞10° |
Visual Range |
1~4 NM |
Horizontal Out-put |
360° |
LED Quantity |
20pcs |
Overall Size(mm) |
186mm(D)x190mm(H) |
Light Source |
LED |
Installation Size(mm) |
D170mm x M6 |
Working temperature |
-40℃~70℃ |
Wind-speed Ability |
80m/s |
Storage temperature |
-40℃～70℃ |
Working mode |
Flashing(20tims/min) |
Sun Switch Illumination Threshold |
300LUX±100LUX |
Steady Burning Intensity |
32.5cd |
Continuous Burning Time in rainy days |
＞20 days (12 hours a day) |
Flashing Intensity |
33cd |
Weight |
1.2kg |
IP Protection |
IP65 |
