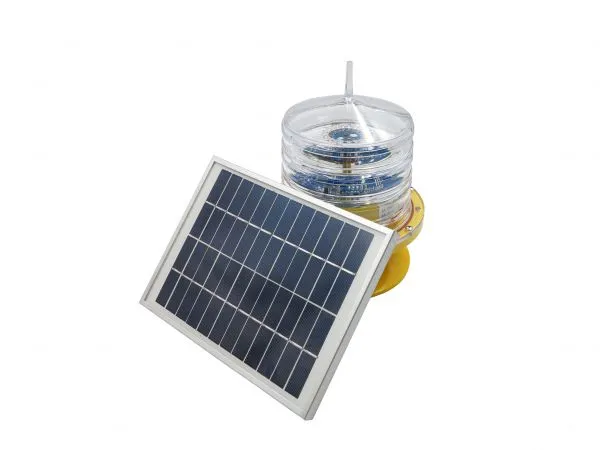

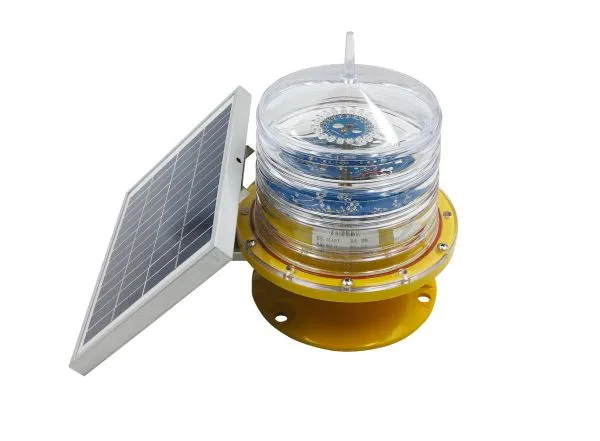

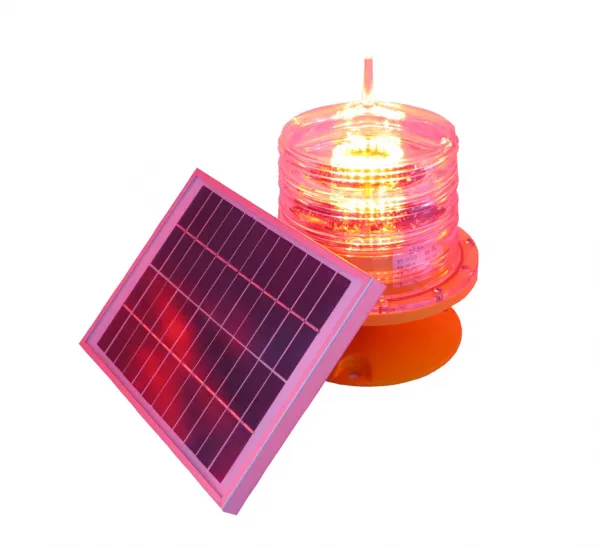

Help CenterHot Selling Dock Dedicated Solar Integrated LED Marine Beacon Light
Related Products
-
Gps Sync & Remote Monitoring Solar Marine Navigation Led LightUS$ 279 - 299MOQ: 2 Pieces -
Compact 3nm Optical Color Solar Marine Led LightUS$ 29 - 59MOQ: 2 Pieces
-
Hight Intensity Built in Remote Monitorining via APP Solar Marine LanternUS$ 1199 - 1399MOQ: 2 Pieces
-
5NM Marine Warning Light / Solar Marine LED Lanterns / Solar Beacon LanternsUS$ 139 - 199MOQ: 2 Pieces
-
IALA Red Emitting Color and Base 4nm Solar Marine Light for Ship/ferry/vesselUS$ 59 - 89MOQ: 2 Pieces
Description
GS-LS/EL LED Marine lantern adopts solar panel whose photoelectric conversion efficiency is high to 25%, integrated design, cooperate with solar dedicated battery as power supply.
Control circuit adopts micro-power consumption single chip morocco controlling chip, which can control battery’s charge and discharge statue; Meanwhile, it can reduce controlling circuit ’s power consumption.
Light source adopts high efficient LED chip, which has specific of high light intensity, low power consumption, long service life and so on.
Lampshade adopts PC material, which can corrosion resistance, anti-UV anti-shock. The base adopts marine-grade dedicated plastic material, it can apply to seaways and chemical plant that have hostile and strong corrosive environment.
Name |
Parameter |
Name |
Parameter |
Type |
GS-LS/EL |
Light Source Service Life |
>100000 hours |
Power Supply |
Class A high efficient solar panel |
Optional Emitting Color |
Red, yellow, Green, White, Blue |
Battery capacity |
6.4V6000mAH |
Battery Type |
Replaceable lithium iron phosphate battery |
Battery life |
5-8 years |
Solar panel life |
>30 years |
Solar panel power |
6 W |
Vertical Divergence |
>8° |
Power consumption |
≤0.1W |
Horizontal Out-put |
360° |
Visual range |
Adjustable from 1~5NM |
Overall Size |
322×232x246mm |
Light source |
LED |
Installation Size |
￠145mm * M10(3pcs) |
Storage temperature |
-55℃～85℃ |
Anti-wind Ability |
80m/s |
Working Temperature |
-50℃～85℃ |
light intensity |
Meet IALA standard |
Weight |
3.5kg |
Working mode |
Steady burning/Flash |
IP Standard |
IP67 |
Optically Controlled Ambient Brightness |
300±100LUX |
Optional function |
GPS sync flash |
