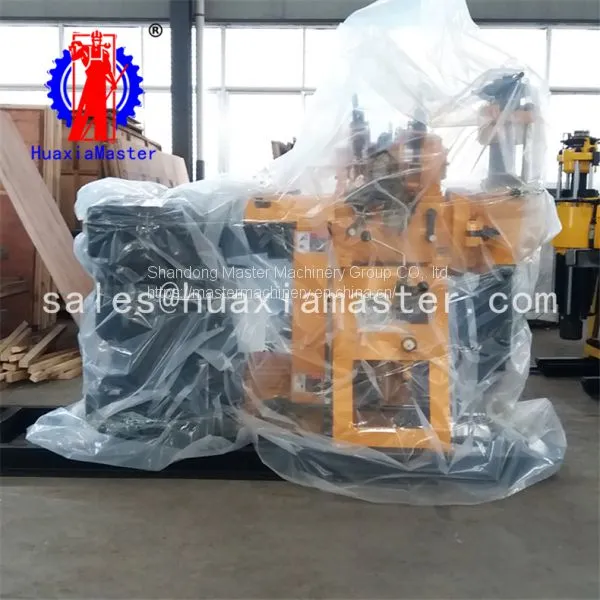

Help CenterHZ-130Y Small Hydraulic Water Well Drilling Machine
Related Products
-
HZ-130YY Diesel-powered Core Exploration Water Well Drilling RigUS$ 4000 - 6000MOQ: 1 Set -
XYX-130 Wheel Hydraulic Core Exploration Drilling MachineUS$ 4000 - 6000MOQ: 1 Set
-
XYD-130 Crawler Hydraulic Core Drilling Rig 130 Meters DepthUS$ 6000 - 7500MOQ: 1 Set
-
ZLJ1200 Grouting Reinforcement Drilling Rig Adopts Mechanical Drive Drilling RigUS$ 4000 - 6000MOQ: 1 Set
-
ZLJ650 The Slope Supporting Drilling Rig Reliable and Convenient to OperateUS$ 4000 - 6000MOQ: 1 Set
Keywords: small drilling machine,hydraulic press machine, water well drilling rig
1. The applications of HZ-130Y water well drilling rig
Field irrigation well, civil use water well, ground temperature central air conditioning and so on; geological survey and exploration, basic exploration for roads and high-rise buildings, inspection holes for various concrete structures, river embankments, subgrade grouting holes.
1. The features of HZ-130Y water well drilling rig
l The hoisting machine is equipped with a holding frame to form a double-sided supporting star wheel structure,can withstand strong impact.
l Four groups of bearings are positioned in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complex geological conditions such as the gravel layer and the pebble layer.
l This machine adopts the conical clutch of national patent technology, which has the prominent characteristics of large transmission torque, convenient operation and no maintenance.
l Using 53 ×59 six party active drill rod, strong rigidity, large torque transmission.
3. Specifications of HZ-130Y water well drilling rig
HZ-130Y drilling rig | |
Drilling depth |
130m |
Maximum open hole diameter |
220mm |
End hole diameter |
75mm |
Drilling pipe diameter |
50mm |
Drilling angle |
90°-75° |
Weight |
750kg |
Power |
Diesel engine 13.2kw |
Spindle | |
Spindle rotating speed |
142 285 570r/min |
Spindle stroke |
450mm |
Windlass | |
The maximum weight of a single rope |
1600kg |
Lifting speed of a single rope |
0.41 0.82 1.64m/s |
Drum diameter |
140mm |
Wire rope diameter |
13mm |
Drum capacity |
27m |
Mud pump | |
Model |
Horizontal single cylinder double action |
Displacement ( diesel and electric, respectively) |
95L/ MIN,77L/MIN |
Maximum pressure |
1.2mpa |
Working pressure |
0.7mpa |
Water inlet diameter |
30mm |
Water outlet diameter |
20mm |
Triangle belt diameter |
B1575mm |
