Home > Industrial Equipment & Components > Bearing > Slewing Bearing > CRBF108ATUU Crossed Roller Bearing 10*52*8mm Small Slewing Ring

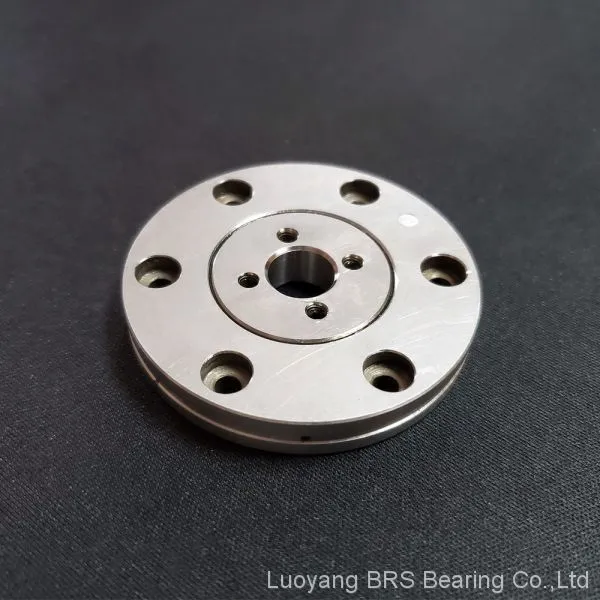

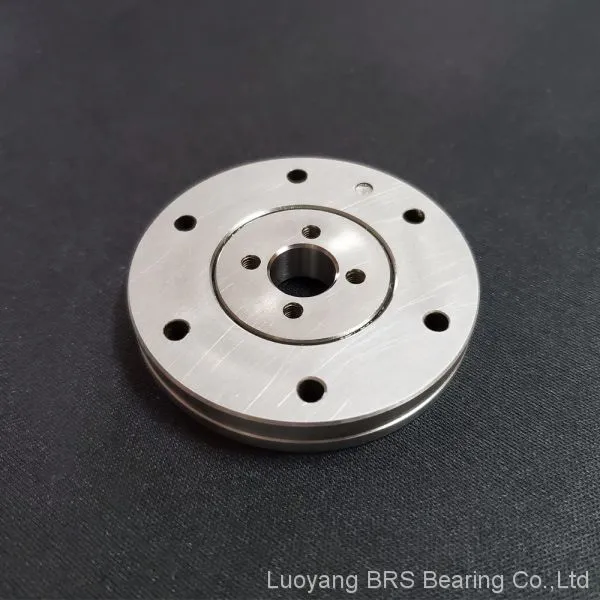

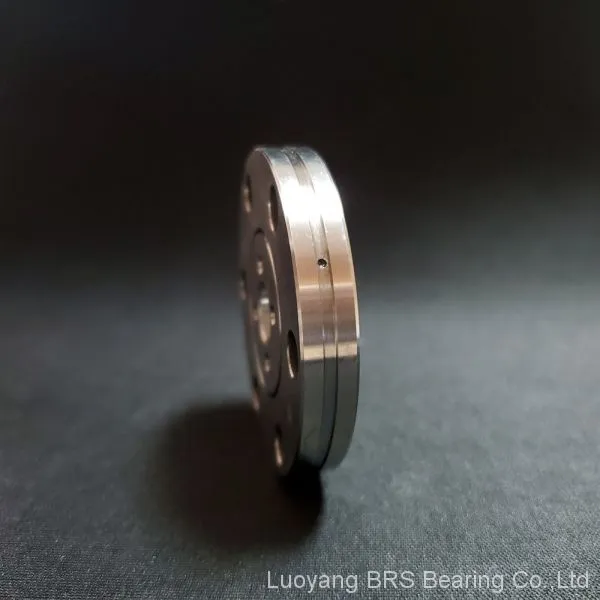

CRBF108ATUU Crossed Roller Bearing 10*52*8mm Small Slewing Ring
US$ 10 - 300
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
RIGBRS
Place of Origin:
China
Model Number:
CRBF108ATUU
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
30 days
Related Products
-
RA5008 Crossed Roller Bearings 55*66*8mmUS$ 10 - 500MOQ: 5 Sets -
RU66UUCC0 Crossed Roller Bearing 35*95*15mmUS$ 10 - 300MOQ: 10 Pieces
-
RU228X Crossed Roller Bearing 160*295*35mm Chinese SupplierUS$ 10 - 300MOQ: 10 Pieces
-
RU297UUG Crossed Roller Bearing 210*380*40mm Chinese SupplierUS$ 10 - 300MOQ: 10 Pieces
-
RB18025 Crossed Roller Bearing 180*240*25mmUS$ 10 - 500MOQ: 5 Sets
Brand Name
RIGBRS
Place of Origin
China
Model Number
CRBF108ATUU
Feature
Cross Roller
Seals Type
NBR
Outside Diameter
52,
Bore Size
10,
Gear Options
Nongeared
CRBF108ATUU crossed roller bearing
Model: CRBF108ATUU
Inner ring: 10mm
Outer ring: 52mm
Width: 8mm
Weight: 0.12kg
Structure: crossed cylindrical roller bearing
Materials: GCr15
Precision grade: P5/P4
Lubrication type: Grease lubrication
Lubrication hole: Yes
Load direction: axial, radial and tilting moment.
CRBF crossed roller bearing has solid one-piece inner/outer ring, has high loading capacity and rotation accuracy. Provide stable rotation torque, easy to install and romove, suited for both rotating inner and outer rings.
Application: waist joints of robots, rotary table, radar, precision measuring instruments, etc.
Surface treatment: surface blackening, phosphate treatment, zinc-plating,etc. to protect bearings from rust or corrosion.
| Model | Dimension (mm) | Mounting (mm) | Load Rating (kN) | Mass | ||||||
| Open Type | Sealed Type | d | D | B | rsmin | PCD1 | PCD2 | Cr | Cor | kg |
| CRBF 108 AT | CRBF 108 AT UU | 10 | 52 | 8 | 0.3 | 16 | 42 | 2.91 | 2.43 | 0.12 |
| CRBF 2012 AT | CRBF 2012AT UU | 20 | 70 | 12 | 0.3 | 28 | 57 | 7.6 | 8.37 | 0.31 |
| CRBF 2512 AT | CRBF 2512 AT UU | 25 | 80 | 12 | 0.6 | 35 | 67 | 8.61 | 10.6 | 0.4 |
| CRBF 3515 AT | CRBF 3515 AT UU | 35 | 95 | 15 | 0.6 | 45 | 83 | 17.3 | 20.9 | 0.66 |
| CRBF 5515 AT | CRBF 5515 AT UU | 55 | 120 | 15 | 0.6 | 65 | 105 | 20.1 | 27.7 | 0.96 |
| CRBF 8022 AT | CRBF 8022 AT UU | 80 | 165 | 22 | 0.6 | 97 | 148 | 51.1 | 72 | 2.63 |
| CRBF 8022 A | CRBF 8022 A UU | 80 | 165 | 22 | 0.6 | 97 | 148 | 51.1 | 72 | 2.6 |
| CRBF 8022 AD | CRBF 8022 AD UU | 80 | 165 | 22 | 0.6 | 97 | 148 | 51.1 | 72 | 2.6 |
