RU124G crossed roller bearing 80*165*22mm RIGBRS Bearing
- 1000 Piece / Pieces per Month
- Shanghai
- T/T L/C PayPal Other
- 30 days
You May Like
-
RU148G crossed roller bearing 90*210*25mm RIGBRS Bearing
-
RU228G crossed roller bearing 160*295*35mm slewing bearing
-
RU297X crossed roller bearing 210*380*40mm slewing bearing
-
CSF-50 harmonic speed reducer crossed roller bearing for CSG-50 harmonic drive units
-
SHF-14 harmonic reducer output bearing for SHG-14 harmonic drive units robot joints bearings
-
SHF-50 harmonic reducer output bearing high robust crossed roller bearing
Product Details
| Brand Name | RIGBRS | Place of Origin | China | |
| Model Number | RU124G UUCC0 P5 | Feature | Cross Roller | |
| Seals Type | NBR | Outside Diameter | 80, | |
| Bore Size | 165, | Gear Options | Nongeared |
Product Description

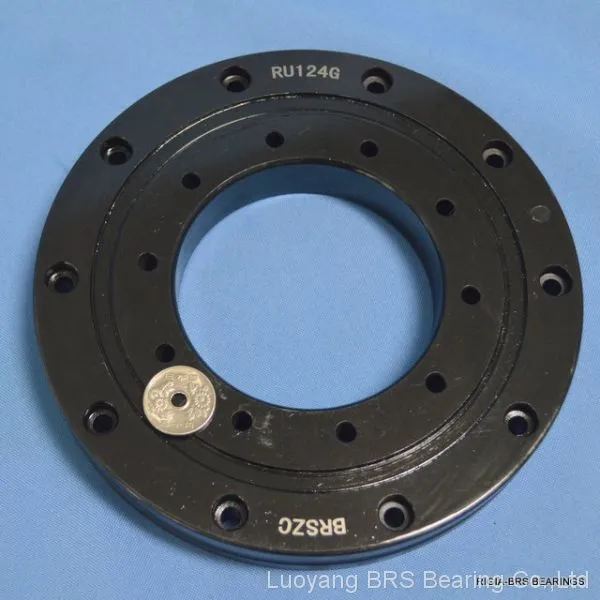

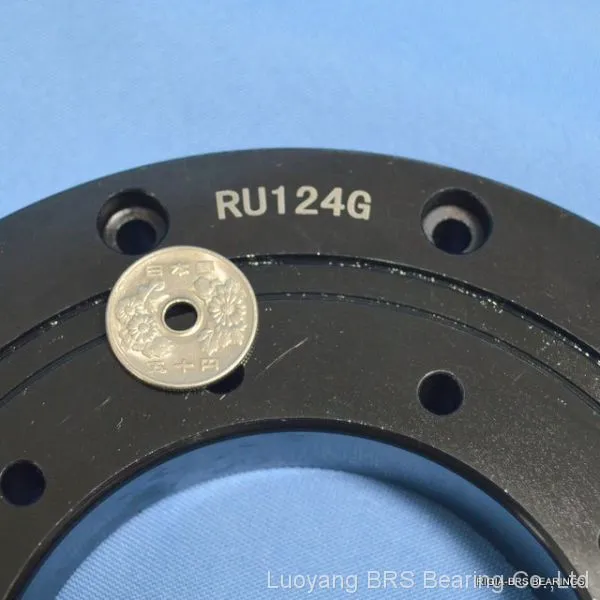

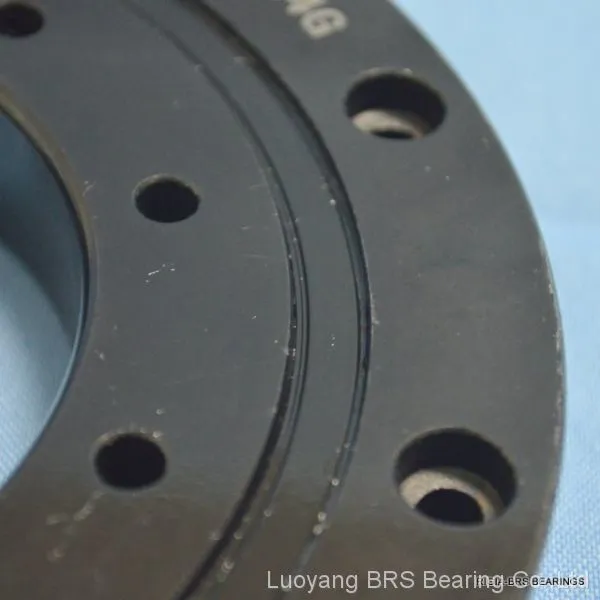

RU124G crossed roller bearing
Model: RU124 UUCC0 P5
Inner ring: 80mm
Outer ring: 165mm
Width: 22mm
Weight: 2.6kg
Structure: crossed cylindrical roller bearing
Materials: 42CrMo/50Mn/customized
Precision grade: P5/P4
Lubrication type: Grease lubrication
Lubrication hole: Yes
Load direction: axial, radial and tilting moment.
RU series crossed roller bearing has compact inner/outer ring, provide stable running accuracy and torque, suited for both rotating inner and outer rings.
Application: waist joints of robots, rotary table, radar, precision measuring instruments, etc.
Surface treatment: surface blackening, phosphate treatment, zinc-plating,etc. to protect bearings from rust or corrosion.
THK RU crossed roller bearing models
| THK P/N | d | D | B | PCD1 | PCD2 | rsmin | Cr (KN) | Cor (KN) | Mass(kg) |
| RU42 | 20 | 70 | 12 | 28 | 57 | 0.6 | 7.35 | 8.35 | 0.29 |
| RU66 | 35 | 95 | 15 | 45 | 83 | 0.6 | 17.5 | 22.3 | 0.62 |
| RU85 | 55 | 120 | 15 | 65 | 105 | 0.6 | 20.3 | 29.5 | 1 |
| RU124(G) | 80 | 165 | 22 | 97 | 148 | 1 | 33.1 | 50.9 | 2.6 |
| RU124X | 80 | 165 | 22 | 97 | 148 | 1 | 33.1 | 50.9 | 2.6 |
| RU148(G) | 90 | 210 | 25 | 112 | 187 | 1.5 | 49.1 | 76.8 | 4.9 |
| RU148X | 90 | 210 | 25 | 112 | 187 | 1.5 | 49.1 | 76.8 | 4.9 |
| RU178(G) | 115 | 240 | 28 | 139 | 217 | 1.5 | 80.3 | 135 | 6.8 |
| RU178X | 115 | 240 | 28 | 139 | 217 | 1.5 | 80.3 | 135 | 6.8 |
| RU228(G) | 160 | 295 | 35 | 184 | 270 | 2 | 104 | 173 | 11.4 |
| RU228X | 160 | 295 | 35 | 184 | 270 | 2 | 104 | 173 | 11.4 |
| RU297(G) | 210 | 380 | 40 | 240 | 350 | 2.5 | 156 | 281 | 21.3 |
| RU297X | 210 | 380 | 40 | 240 | 350 | 2.5 | 156 | 281 | 21.3 |
| RU445(G) | 350 | 540 | 45 | 385 | 505 | 2.5 | 222 | 473 | 35.4 |
| RU445X | 350 | 540 | 45 | 385 | 505 | 2.5 | 222 | 473 | 35.4 |
