Golden Laser | Industrial Professional Steel Tube Laser Cutting Machine P2060(A) Full Enclosed

Golden Laser tube/pipe laser cutting machine P2060A adopts most sophisticated fiber laser resonator N-light / IPG from USA, and imported fiber laser cutting head Raytools, combining self-design Gantry CNC machine and high strength welding body. After high temperature annealing and precision machining by large CNC milling machine, it has good rigidity and stability with imported high precision spare parts, like linear guide drive, high-speed servo motor. Aluminum beam, advanced heat treatment process, high strength, light weight, good rigidity.

Applicable Industry

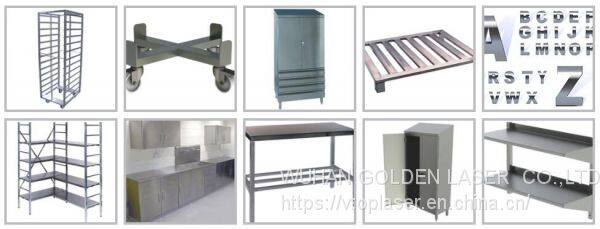

Metal furniture, medical device, fitness equipment, sports equipment, oil exploration, display shelf, agriculture machinery, bridge supporting, steel rail rack, steel structure,fire control and pipe processing etc.

Applicable material

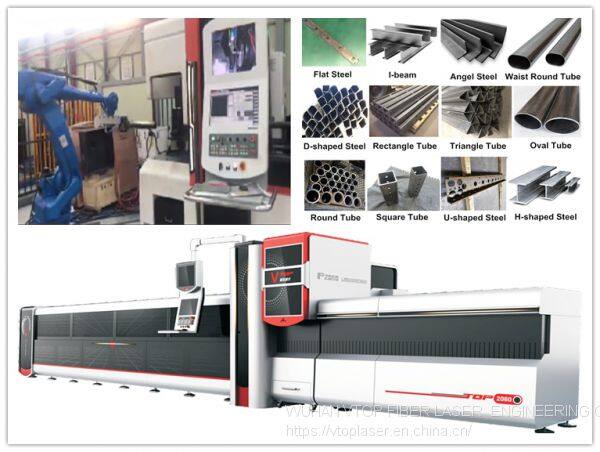

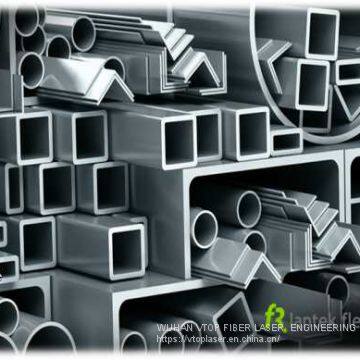

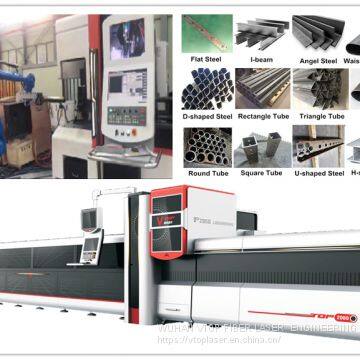

Specially for metal tube of round, square, rectangular, triangle, oval, waist tube and other shaped. The tube outer diameter can be 10-300mm, length 6m, 8m, 12m.

Main Features

Integrated main body makes the whole machine with good concentricity, verticality and precision

Dual motive chucks are compatible with a variety of pipe without adjusting jaws

Optimized claw holding pressure makes tube wall thickness within 1mm without deformation

Innovative one-way air control claw tightness helps extend cylinder life

Visual scale adjustable support lifting device saves feeding time, ensures concentricity, prevents pipe swinging

Integrated circuits, streamline laying provides easy maintenance and low failure rate

Automatic boundary, automatically find center, automatic compensation

Adjustable frequency perforation

High damping bed, good rigidity, high speed and acceleration

Automatic bundle loader for option which saves labor and loading time, achieve mass production purpose

The world’s leading fiber laser resonator and electronic components to ensure machine superior stability

Professional pipe laser cutting control system Germany PA and nesting software Spain Lantek

Technical Parameter

Model number: P2060A/P3080A

Tube length: 6000mm/8000mm/12000mm

Tube diameter: 20mm-200mm/20mm-300mm

Laser source: imported fiber laser resonator IPG/N-Light

Servo Motor: 4 servo motors for all axial movements

Laser source power: 1000W/1200W/1500W/2000W/2500W/3000W

Position accuracy: ±0.03mm

Repeat position accuracy: ±0.01mm

Maximum position speed: 100m/min

Rotating speed: 120r/min

Acceleration: 1g

Cutting speed: depend on material, laser source power

Electric power supply: AC380V 50/60Hz

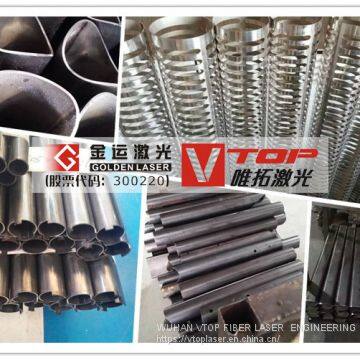

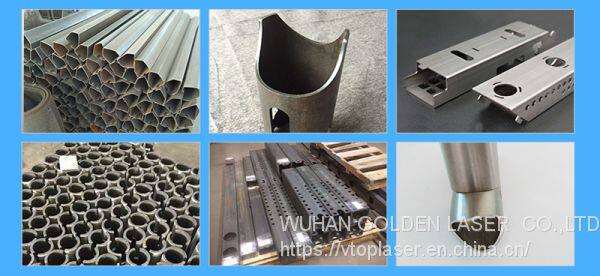

Sample demonstration
