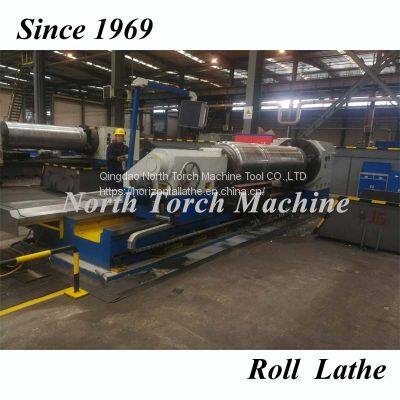

Professional Heavy Duty Horizontal CNC Lathe for 40T Mill Roll, Cylinder,shaft
US$ 20000 - 300000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
NTM or customized lathe is also available
Place of Origin:
China
Model Number:
CK84125*8000
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao,Tianjin, shanghai
Delivery Detail:
4 days
Related Products
-
Professional Steel Roll Turning Horizontal Lathe Machine CK84100US$ 1 - 999MOQ: 1 Unit -
High Quality Heavy Duty Horizontal Steel Roll Turning Lathe Machine CK84160US$ 1 - 999MOQ: 1 Unit
-
Professional Steel Roll Turning CNC Lathe With 2 Years Quality WarrantyUS$ 1 - 999MOQ: 1 Unit
-
High Quality Professional Heavy Duty Roll Turning CNC LatheUS$ 1 - 999MOQ: 1 Unit
-
Professional Heavy Duty Horizontal Roll Turning CNC Lathe for 40T Mill Roll, Cylinder.US$ 20000 - 300000MOQ: 1 Set
Brand Name
NTM or customized lathe is also available
Place of Origin
China
Model Number
CK84125*8000
Type
Other, Casting roll, steel roll, forged roll are all OK
Certification
CE, ISO9001, EAC, SGS, BV
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 year quality warranty
Weight
55 Ton
Condition
New
Voltage
440 V, 220V 380V per customer's local request
Torno, Heavy Duty Horizontal cnc Lathe Machine,Roll Turning Lathe
(Conventional & CNC control,both are Available)
For Turning Steel Roller,Shaft, Cylinders, Oil Pipe, Marine Propeller Shaft,Tire Mold, Railway Parts,Wheel Hub Turbine,Flange,etc
(Conventional & CNC control,both are Available)
For Turning Steel Roller,Shaft, Cylinders, Oil Pipe, Marine Propeller Shaft,Tire Mold, Railway Parts,Wheel Hub Turbine,Flange,etc
1. Outstanding Characteristics:
Our company was established in 1969 as amilitary enterprise at the beginning. With more than 50 years experience, we are specialized in re-designing and manufacturing customized lathe machines per your special demands and requests.

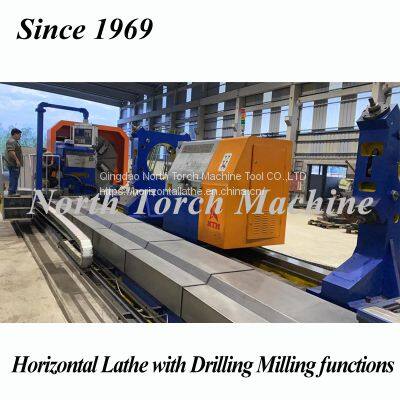

This series lathe machine can be designed into a CNC Grinding Lathe Machine with turning and Grinding functions. And can be also designed into CNC Milling Turning Lathe. It can help you save time and improve efficiency for the part which needs to be truned and Grinding like marine/vessel propeller shaft, Cylinders, etc.
1). Reasonable Structure and excellent performance.Special Design for Headstock that use Gear Rim to ensure a large Torque of lathe machine .
2.). High Rigidity, Stability and Precision Maintenance. All castings parts are do quenching heat treatment to ensure the high accuracy of lathe machine. All guide rails are ground by 18 meters large grinding machine.
3.) Permanent After-sale Service to ensure maximum customer's profitability.
4.) Engineers are available for free over-sea installation,commissioning and Training the operators at customer's factory.
5.) We have our own foundry for castings, which can guarantee a high quality lathe machine. Besides, we also have professional machining equipments like gantry CNC Grinding Machine, CNC Boring Milling Machine, etc and inspection equipments like ultrasonic fault detector,hardness test system,etc for CNC Lathe, Horizontal Lathe Manufacture.
Our company was established in 1969 as amilitary enterprise at the beginning. With more than 50 years experience, we are specialized in re-designing and manufacturing customized lathe machines per your special demands and requests.
This series lathe machine can be designed into a CNC Grinding Lathe Machine with turning and Grinding functions. And can be also designed into CNC Milling Turning Lathe. It can help you save time and improve efficiency for the part which needs to be truned and Grinding like marine/vessel propeller shaft, Cylinders, etc.
1). Reasonable Structure and excellent performance.Special Design for Headstock that use Gear Rim to ensure a large Torque of lathe machine .
2.). High Rigidity, Stability and Precision Maintenance. All castings parts are do quenching heat treatment to ensure the high accuracy of lathe machine. All guide rails are ground by 18 meters large grinding machine.
3.) Permanent After-sale Service to ensure maximum customer's profitability.
4.) Engineers are available for free over-sea installation,commissioning and Training the operators at customer's factory.
5.) We have our own foundry for castings, which can guarantee a high quality lathe machine. Besides, we also have professional machining equipments like gantry CNC Grinding Machine, CNC Boring Milling Machine, etc and inspection equipments like ultrasonic fault detector,hardness test system,etc for CNC Lathe, Horizontal Lathe Manufacture.
6.) The Main machine components are strictly inspected by the advanced CMM to ensure the excellent quality and high precision.
Machine is under Test before shipment by our Customer from Georgia. Inspoection Result is Perfect. Customer is satisfied with our lathe machine.
Our Principle : Maximize Customer's Profitability under the minimum invest cost.
Application: This series CNC horizontal lathe can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, but also the external/internal cylindrical / conical/ spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body. What's more, it can also realize the constant speed cutting line. It has both turning and Grinding functions that can finish machining the part one time, which saves clamping times and improve the working efficiency for customers.
Heavy Duty CNC Lathe with 3500 Swing Diameter and 6 meters long.
2. Technical Parameters
Rermarks:
1. The above 6 models of Heavy Duty Horizontal CNC Lathe Machine are the standard configurations, we can also design and manufacture customized lathe machines according to the user's workpiece features. So that when you inquire of our lathe machine, please kindly inform us the Length,Diameter,Width,Weight of work-piece, we can recommend the proper machine. Both Conventional or CNC Control are OK, please laso tell us which type you need when you inquire. Thanks
2. This series heavy duty horizontal CNC Lathe Machine have been exported to Georgia, Pakistan, South Africa, Norway, Thailand, Romania, Iran, Russia, Chile for machining Roll, Shaft, Cylinders, railway parts, automobile parts, mining and metallurgy, shipping building, wind power and other machinery industry.
3. Package and Shipment
Anti-rust Oil /Anti-Corrosive Oil for the whole machine. Wrapping protective film.
Wooden Box package, vacumm package is also available per customer's special request.
4. After-sale Service& Maintenance
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe. We can also extend the warranty period according to customer's special demands.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. And we warmly welcome you to visit our company for technonolgy discussion and business negociation. Thanks!
Machine is under Test before shipment by our Customer from Georgia. Inspoection Result is Perfect. Customer is satisfied with our lathe machine.
Our Principle : Maximize Customer's Profitability under the minimum invest cost.
Application: This series CNC horizontal lathe can utilize high-speed steel and carbide cutting tools to finish rough or finish turning process for not only the non-ferrous metals like various structure steels, casting steels and irons, but also the external/internal cylindrical / conical/ spherical surfaces, thread of non-metal materials and all kinds of the surface of curve rotary body. What's more, it can also realize the constant speed cutting line. It has both turning and Grinding functions that can finish machining the part one time, which saves clamping times and improve the working efficiency for customers.
Heavy Duty CNC Lathe with 3500 Swing Diameter and 6 meters long.
| Name | CK84100 | CK84125 | CK84160 | CK84200 | CK84250 | CK84300 | |
| Description | Unit | ||||||
| Max. Swing Over Bed | mm | 1000 | 1250 | 1600 | 2000 | 2500 | 3000 |
| Max. Swing Over the skateboard | mm | 650 | 800 | 1200 | 1650 | 1800 | 2800 |
| Max. Weight of Work-piece | T | 10 | 15 | 20 | 20 | 20 | 40 |
| Max. Length of Work-piece | mm | 3000-12000 | |||||
| Gears of Spindle Speed | / | Infinitely Variable Speed/step-less speed | |||||
| Range of Spindle Speed | r/Min | 10-300 | 10-200 | 10-160 | 4-80 | 4-80 | 1.6-63 |
| Chuck Diameter | mm | 800 | 1000 | 1250 | 1600 | 2000 | 2500 |
| X,Z-Axis Feed Range | mm/Min | 0-3000 | |||||
| Horizontal Stroke | mm | 500 | 625 | 800 | 1000 | 1250 | 1000 |
| Longitudinal Stroke | mm | 3000-12000 | |||||
| Main Driving Motor | Kw | 11 | 22 | 45 | 75 | 75 | 75 |
| Cutting Force (Carriage) | Kn | 4 | 6 | 20 | 40 | 40 | 60 |
| Sleeve Diameter of Tailstock | mm | 180 | 180 | 290 | 290 | 290 | 480 |
| Spindle Diameter of tailstock | mm | 125 | 125 | 160 | 160 | 160 | 240 |
Rermarks:
1. The above 6 models of Heavy Duty Horizontal CNC Lathe Machine are the standard configurations, we can also design and manufacture customized lathe machines according to the user's workpiece features. So that when you inquire of our lathe machine, please kindly inform us the Length,Diameter,Width,Weight of work-piece, we can recommend the proper machine. Both Conventional or CNC Control are OK, please laso tell us which type you need when you inquire. Thanks
2. This series heavy duty horizontal CNC Lathe Machine have been exported to Georgia, Pakistan, South Africa, Norway, Thailand, Romania, Iran, Russia, Chile for machining Roll, Shaft, Cylinders, railway parts, automobile parts, mining and metallurgy, shipping building, wind power and other machinery industry.
3. Package and Shipment
Anti-rust Oil /Anti-Corrosive Oil for the whole machine. Wrapping protective film.
Wooden Box package, vacumm package is also available per customer's special request.
4. After-sale Service& Maintenance
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe. We can also extend the warranty period according to customer's special demands.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. And we warmly welcome you to visit our company for technonolgy discussion and business negociation. Thanks!
