XY-100 Hydraulic Core Drilling Rig / Geological Exploration Drill

XY-100 Hydraulic Core Drilling Rig / Geological Exploration Drill photo-1
XY-100 Hydraulic Core Drilling Rig / Geological Exploration Drill photo-2

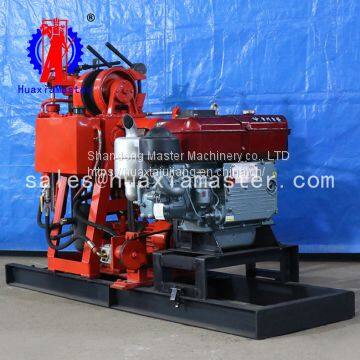

XY-100 Hydraulic Core Drilling Rig / Geological Exploration Drill photo-3

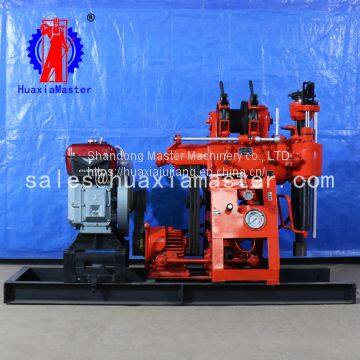

XY-100 Hydraulic Core Drilling Rig / Geological Exploration Drill photo-4
US$ 4500 - 4800 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
HuaxiaMaster
Place of Origin:
China
Model Number:
XY-100
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
10 days
Brand Name HuaxiaMaster
Place of Origin China
Model Number XY-100
Type Rotary Drilling Rig
Certification ISO 9001
After-sales Service Provided No overseas service provided
Warranty 6 Months
Weight 610kg
Dimension(L*W*H) 2.1*0.9*1.3m
Power Type Diesel
Voltage NO
Usage Water Well
Condition New
Power(W) 10KW

XY-100 hydraulic water well drilling rig

1.Applications of XY-100 hydraulic water well drilling rig

XY-100 water well drilling rig is widely used for water well drilling, geological exploration and prospecting, geothermal wells, blast-hole, irrigation projects, etc.

2.Specifications of XY-100 hydraulic water well drilling rig

Drilling depth

110

Maximum open hole caliber

220mm

End hole caliber

75mm

Drill rod caliber

50mm /42mm

Drilling angle

90

Drilling rig weight (exclude diesel engine)

610kg

Unity machine dimensions

2.1*0.9*1.3m

Spindle

Spindle speed

130/300/480/730/830/1045 r/min

Spindle stroke

 450mm

Hoist

Max. lifting capacity with single rope

1600kg

Lifting speed with single rope

1.06/0.67/0.32 m/s

Wirerope caliber

13mm

Wirerope cubic measure

35mm

Hug floodgate caliber

254mm

Hug floodgate belt width

50mm

Distance between drill and hole

230mm

Mud pump

Type

Horizontal single-urn twin-action

Displacement (with diesel engine/electric motor)

170l/min

Max. pressure

1.5mpa

Work pressure

0.7mpa

Power

Diesel engine

S1100

Electric motor

Y160M-4 / 10KW


Product Tags: small water well drilling rig , rotary drilling rig , borehole drill machine
