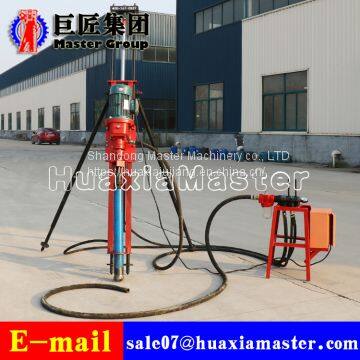

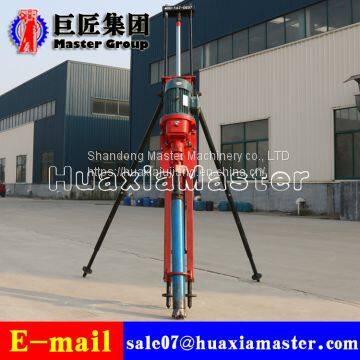

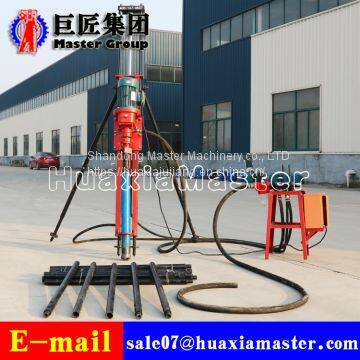

1.The range of application of KQZ-180D water well drilling rig
KQZ-180D pneumatic drilling machine is suitable for drilling and geothermal drilling. It has the advantages of large diameter, deep drilling, fast track, flexible movement and wide use.
2.The technical parameter of KQZ-180D water well drilling rig
Hole diameter | 100-219mm |
Drilling depth | 150m |
Drilling direction | ground to 45-90° |
Feed stroke | 1500mm |
Motor power | 7.5kw |
Rotary speed | 0-78rpm |
Wind pressure | 0.8-2.1mpa |
Air consumption | 13-21L/min |
Gross weight | 600kg |
Shandong Master Machinery Group Co.,Ltd.
sales manager:CocoYan
Mobile phone:18865479503
WeChat: YLD18865479503
QQ:3258704251
Service hotline:400-167-0537
TEL:0537-3860909
Website:
Send Inquiry to This Supplier
