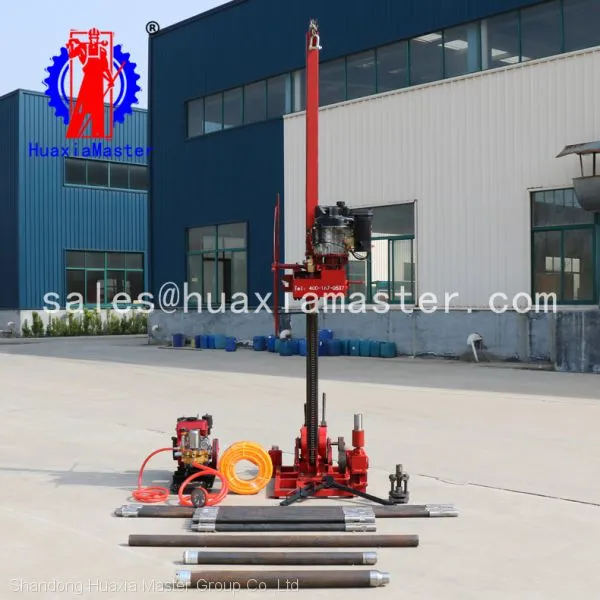

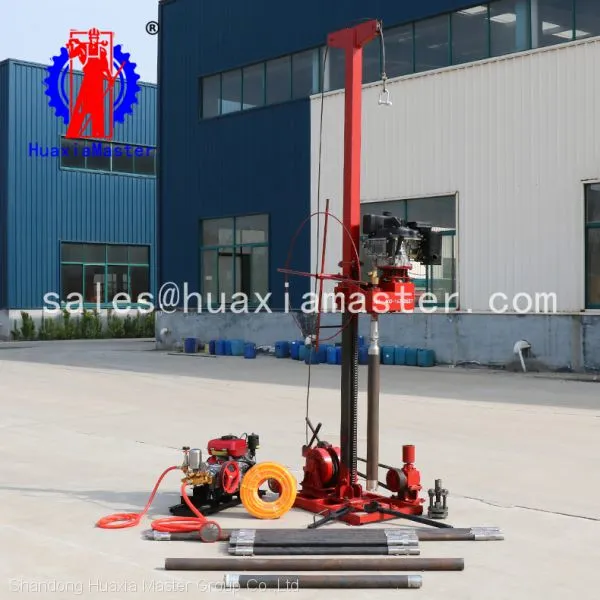

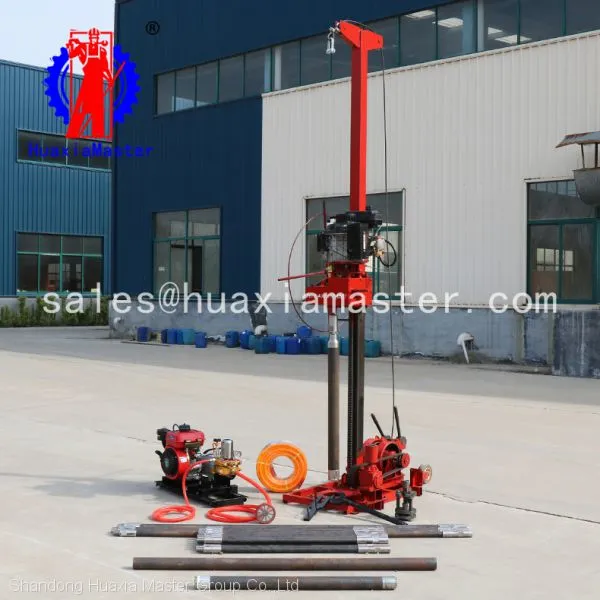

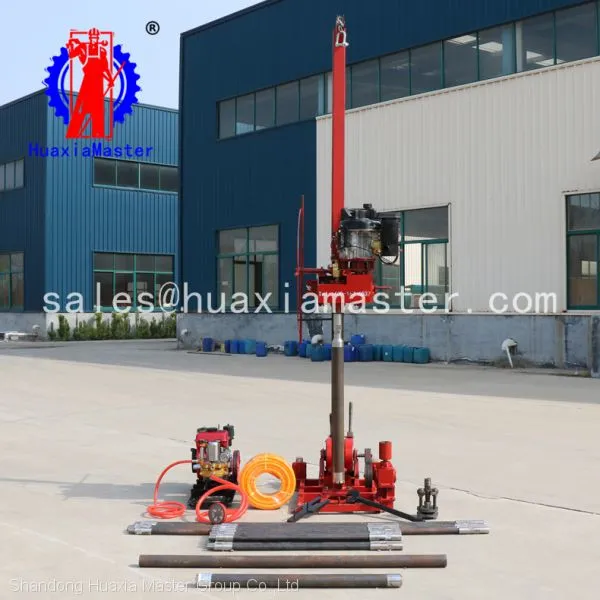

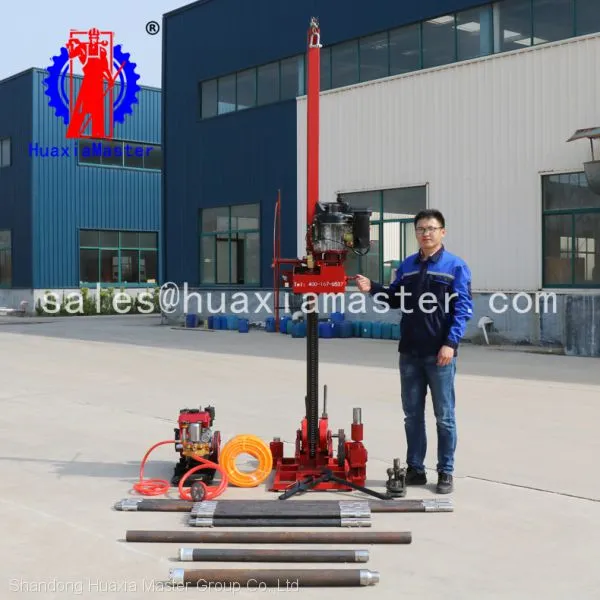

huaxiamaster QZ-3 diesel engine sampling drilling rig for sale
- T/T L/C D/P D/A Credit Card PayPal Other Cash Escrow
You May Like
-
huaxiamaster YQZ-30 hydraulic core drilling rig for sale
-
huaxiamaster YQZ-50A hydraulic core drilling rig for sale
-
huaxiamaster YQZ-50B hydraulic core drilling rig for sale
-
huaxiamaster HZ-130Y hydraulic core drilling rig for sale
-
huaxiamaster HZ-130YY hydraulic core drilling rig for sale
-
huaxiamaster XYX-130 wheeled hydraulic core drilling rig for sale
Product Description
QZ-3 QZ-3 diesel engine sampling drilling rig is equipped with a hoist, which is more convenient for geological drilling and lifting.
It can do standard drilling hole, earth sampling and cone penetration with the heavy hammer.
The QZ-3 diesel engine sampling drilling rig uses diesel power, and it is more convenient to purchase oil.
2. Technical parameters
Borehole diameter (mm) | 46-110 |
Drilling depth（m） | soil Layerφ110：15-20m lithosphereφ91：20-25m lithosphereφ75：25-30m lithosphereφ60：30-40m lithosphereφ46：40-50m |
Drilling pipe diameter (mm) | 30 |
Torque（n.m） | 180 |
Dimension（l*w*h） | 680*1200*3800(highly customizable) |
Weight（kg） | |
3.Configuration List
Item | Specifications | Unit | Quantity | Remarks |
Base |
| pc | 1 |
|
Winding engine | pc | 1 | ||
Drilling tower | pc | 2 | ||
Manual windlass | pc | 1 | ||
Diesel engine | pc | 1 | ||
Gear box | pc | 1 | ||
Drilling pipe including joint | 30*1000 | pc | 15 | Drill pipe |
Drilling pipe including joint | 30*2000 | pc | 5 | |
Reducing nipple | 58/38 | pc | 1 | 60mm core drill tool |
Core barrel | 58*800 | pc | 1 | |
Core barrel | 58*1500 | pc | 1 | |
60 | pc | 1 | ||
Reducing nipple | 73/38 | pc | 1 | 75mm core drill tool |
Core barrel | 73*800 | pc | 1 | |
Diamond bit | 75 | pc | 1 | |
Safety clamp |
Tool | |||
Pipe wrench | ||||
Drill rod tong | ||||
Oil seal | pc | 2 | Vulnerable parts | |
Safety plate | pc | 1 |
If need high pressure pump and high pressure water pipes, please specify.
