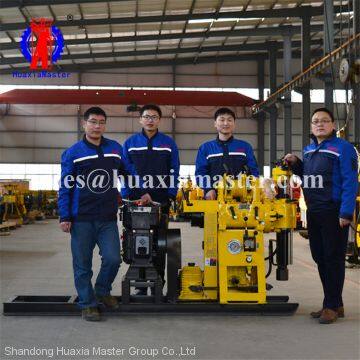

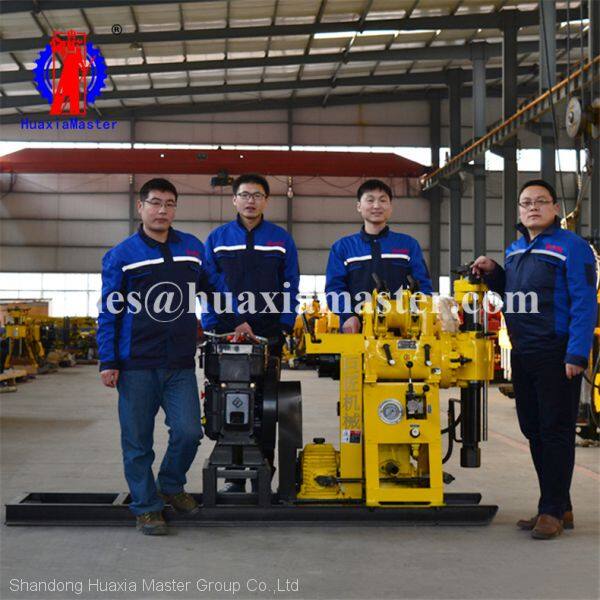

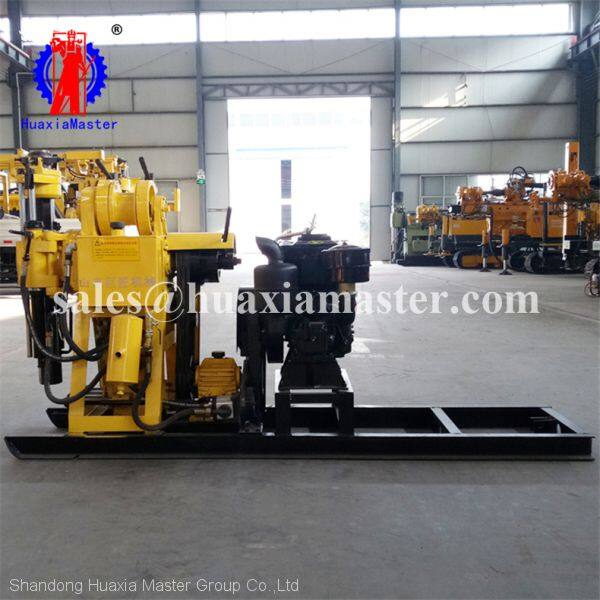

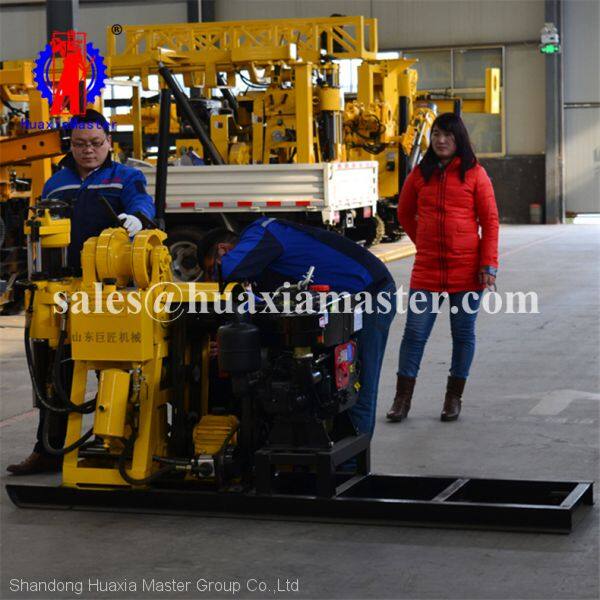

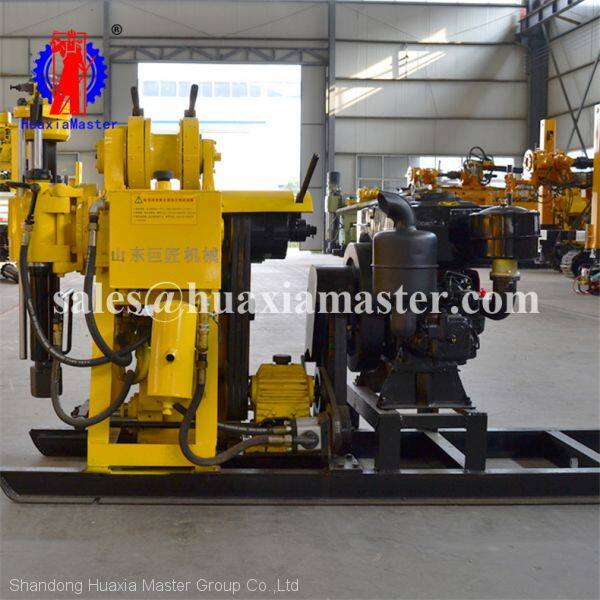

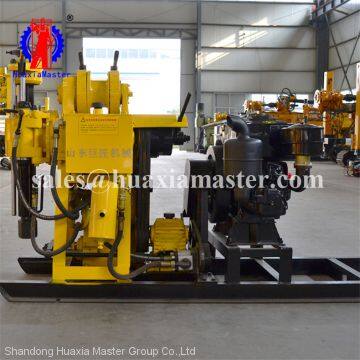

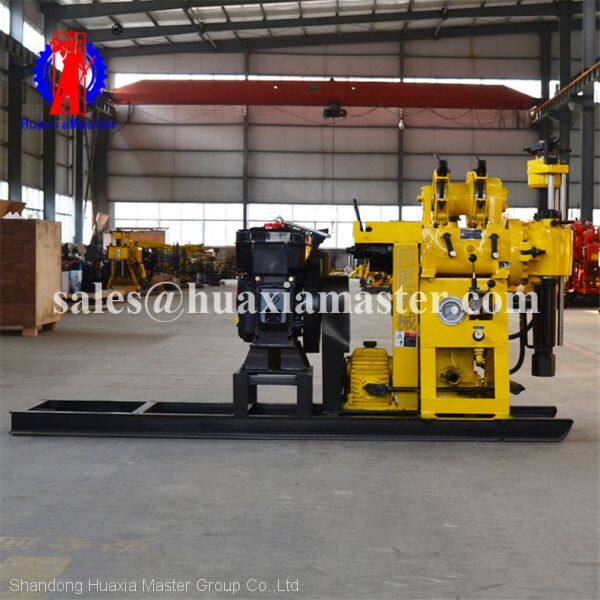

HZ-130Y hydraulic core drilling rig
1. Applications of HZ-130Y hydraulic core drilling rig
· geological survey and exploration
· basic exploration for roads
· high-rise buildings
· inspection holes for various concrete structures
· river embankments
· grouting holes
· direct grouting,
· civil water well
· ground temperature central air conditioners.
2. Features of HZ-130Y hydraulic core drilling rig
· Hoist installation holder, forming structure of double support wheel, can withstand strong impact.
· Four groups of bearings are positioned in the vertical shaft box to ensure that the gyration is rigid enough to cope with the complex geological conditions such as the gravel layer and the pebble layer.
· Using 53*59 hexagon active drill rod, which has strong rigidity and large torque transmission
3. Technical parameters of HZ-130Y hydraulic core drilling rig
Drilling depth |
130m |
Maximum open hole caliber |
220mm |
75mm |
|
Drill rod caliber |
50mm |
Drilling angle |
90-75° |
Drill weight (Not include power) |
750kg |
Spindle | |
142 285 570r/min |
|
Spindle stroke |
450mm |
Hoist | |
Max.single line hoisting capacity |
1600kg |
0.41/0.82/1.64m/s |
|
Drum diameter |
140mm |
Wire rope diameter |
13mm |
Tightrope caliber |
27m |
Mud pump | |
Type |
Horizontal single urn twin-action |
Electric motor |
95/77 l/min |
Maximum pressure |
1.2mpa |
0.7mpa |
|
Water inlet caliber |
30mm |
Water to exit caliber |
20mm |
Triangle conveyer belt |
B1575mm |
