Stacker-reclaimers Cable Reel Drum for TBM Tunnel Boring Machines Motorised Reels With Collector

Feature

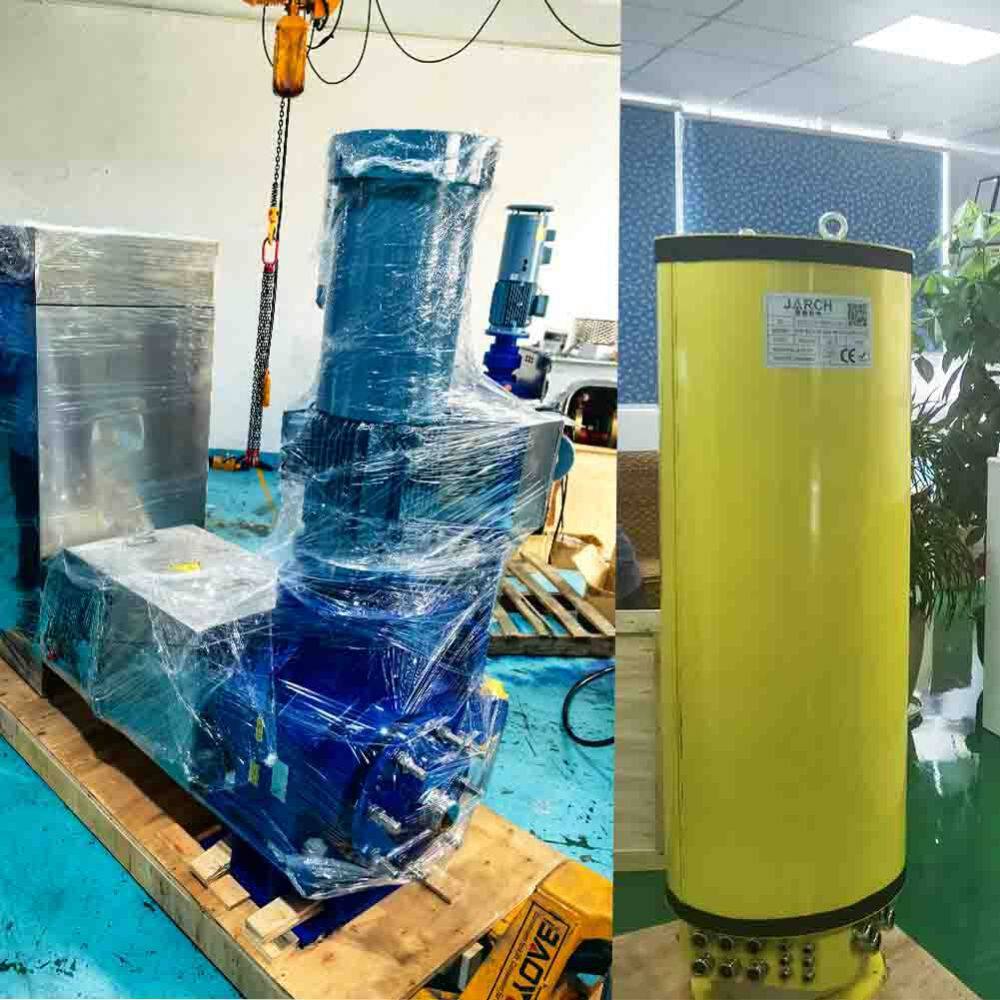

1. Motor (with drive) Standard squirrel cage or torque motors, according to IEC Norms. Hydrodynamic cable reels can be supplied with a pneumatic or hydraulic motor.

2. Gearbox or Torque Unit Sever gearboxes and eight torque unites are available with variable output torque from 10-1200daNm.

3. Collector Standard sizes of collectors are available for power and signals. Current ratings vary from 10 to 2400Amp, voltages up to 30kV. We also manufacture customised collectors exceeding the above parameters.

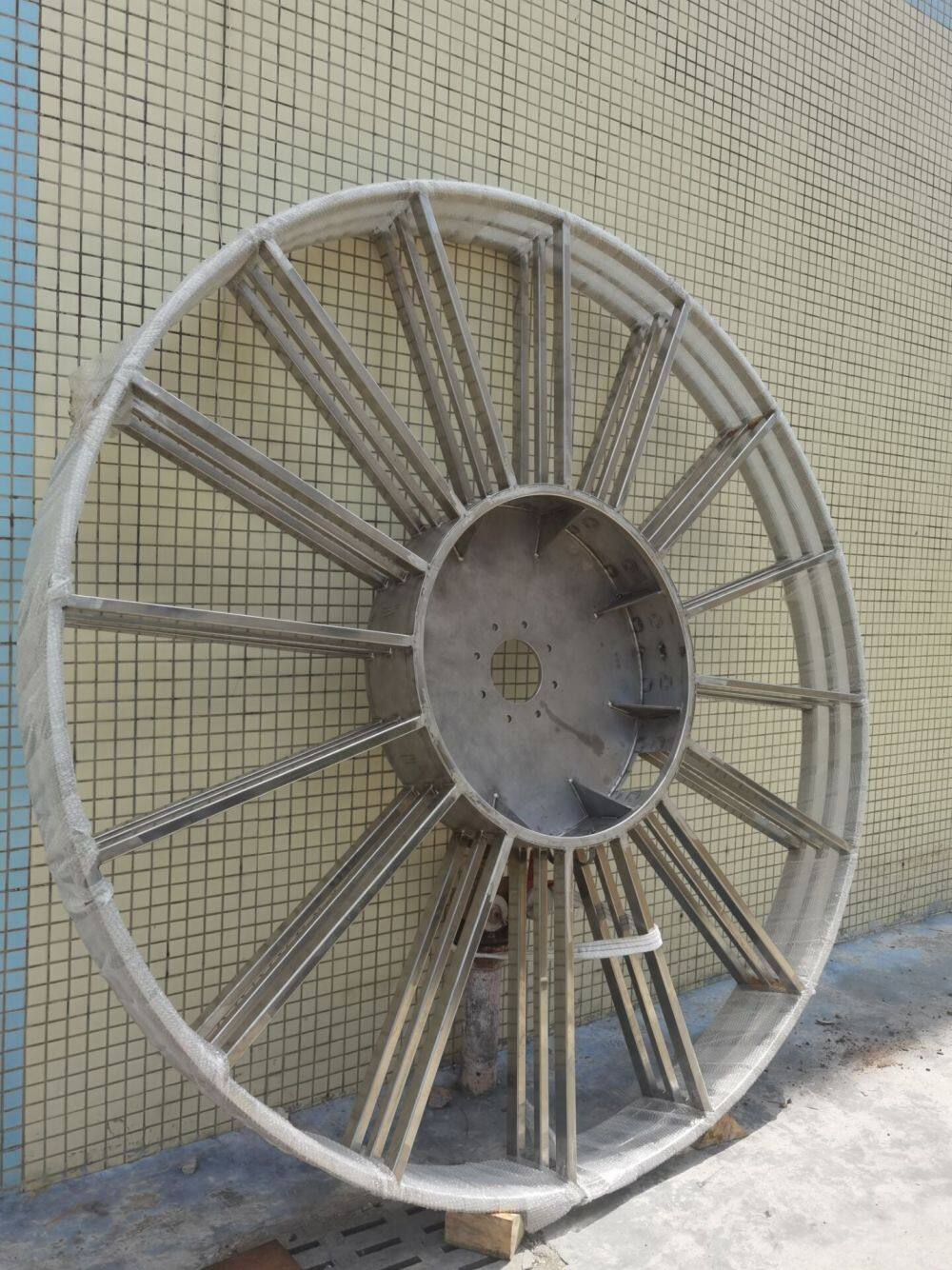

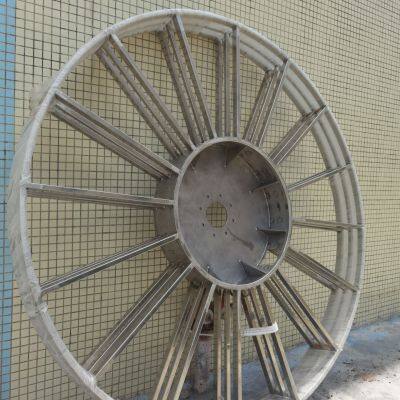

4. The drums are composed of standard elements and can easily be adjusted to required widths. Standard drum diameters range from 300mm to 8700mm.

Applications

The JARCH product range includes cost-efficient motorised reels systems produced in high volume series and relatively small volume projects. We support customers from design to commissioning of products and systems ready for use in the harshest operating and ambient conditions.

JARCH manufactures motorised reels for horizontal, vertical, continuous and intermittent use. We provide tailored solutions for LV or MV applications, with or without fibre optics, for various applications.

Ports & Maritime

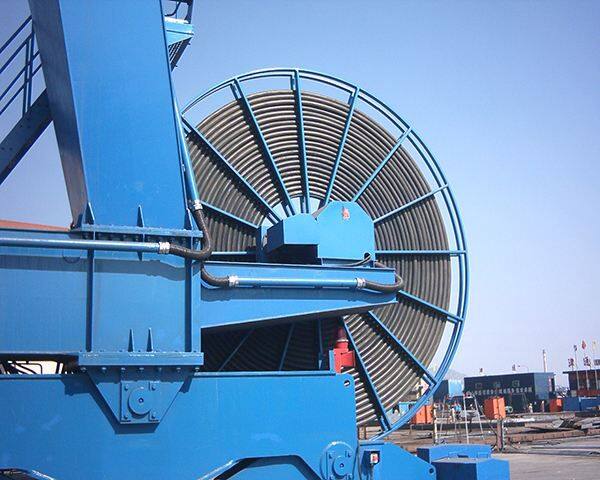

JARCH motorised cable reels are integrated in all potential ports crane applications, at the quay, at the yard or at the intermodal terminal.

Typical applications:

• Ship-to-shore (STS) cranes.

• Automatic stacking cranes (ASC).

• Rail mounted gantry (RMG) cranes.

• Electric rubber-tyred gantry (E-RTG).

• Ship loaders.

• ShorePower systems.

Mining & Tunnelling

JARCH powers a broad range of mobile equipment operating in underground and open pit mining, and tunnelling applications, including:

• Tunnel boring machines (TBM).

• Face drilling machines.

• Stacker-reclaimers.

• Electric rope shovels.

Industry

JARCH engineers indoor and outdoor mobile construction machines, travelling platforms and overhead cranes operating in a variety of sectors such as:

• Construction.

• Steel manufacturing.

• Waste water.

• Chemical plant.

• Nuclear power plant.

• Theatres.
