Motorized empty cable reel small retractable automatic cable reel mechanism winder vacuum hose reels
- 500000 Piece / Pieces per Month
- Shenzhen
- T/T D/P D/A Credit Card PayPal Other Cash
- 7 days
- large frame hose reel Motorized empty cable reel mechanism winder vacuum hose reels
- Premium Duty Enclosed Air Hose Reel Works Air Cable Cord Reel safety water-proof aluminium wire cable reel
- Hose Reel Irrigation System Cable Drum Trailer Self loading Cable Reel Trailer for Underground Cable Laying Construction
- Hot sale Expandable Retractable garden hose reel Watering Hose Anti-Rust garden hose reels
- Watering Hose Reel Stainless steel Heavy Duty Wall-Mounted / Hand-Held Garden Hose Reels for Ground
- A1230 High Precious Signal 60RPM Contact Mercury Slip Ring Rotary joint For Robot Arms
Product Details
Brand Name: | JARCH | Place of Origin: | China | Model Number: | JSR-YL-S33FS |
Type: | Extension Cord | Application: | Home Appliance | Female End Type: | Other, As per customers requirement |
Male End Type: | Other, As per customers requirement |
Product Description

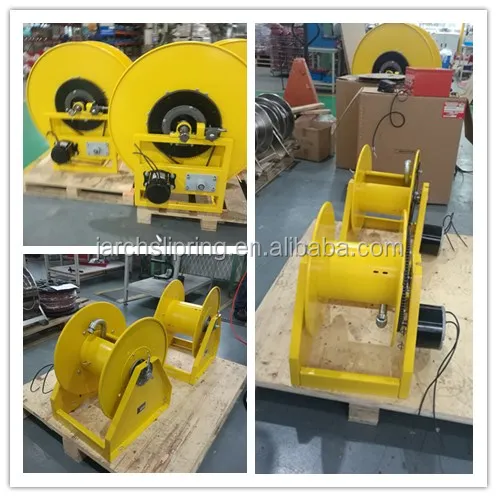

JARCH Motorized empty cable reel small retractable automatic cable reel mechanism winder vacuum hose reels
motorized empty cable reel small retractable automatic cable reel mechanism winder vacuum hose reels
Packaging & Delivery:
Packaging Details: | Standard Export carton Package |
Delivery Details: | Delivery time:15 days after got the payment |
motorized empty cable reel small retractable automatic cable reel mechanism winder vacuum hose reels
Production:
Benefits
***High pressure water swivel - Designed to handle a broad range of pressures, temperatures, and chemicals; perfect for agriculture / marine, equipment cleaning and pressure washing applications.
***Full flow, stress-free swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life.
***Quality finish and corrosion resistant - Individually powder coated components offer the maximum protection from premature corrosion.
***Easy to add tension - The T-handle tensioning device allows proper tension to be applied to the spool to eliminate the free spooling of the reel.
Technicals Bulletins
Hand crank to 24V electric motor conversion requirements
Kit #S600771 CA33112 L to EA33112 L24D
Qty. | Part # | Description |
1 | 260450 | Drive Motor |
1 | 260405 | Motor Bracket |
1 | 260406 | Drive Chain |
1 | 260407 | Spool Gear |
1 | 260408 | Motor Gear |
8 | 300039 | Washer |
8 | S2-52 | Hex Cap Screw |
4 | 300107 | Lock Nut |
6 | S27-112 | Flat Cap Socket Screw |
6 | S79-3 | Flange Nut |
6 | 260410 | Gear Spacer |
Structure

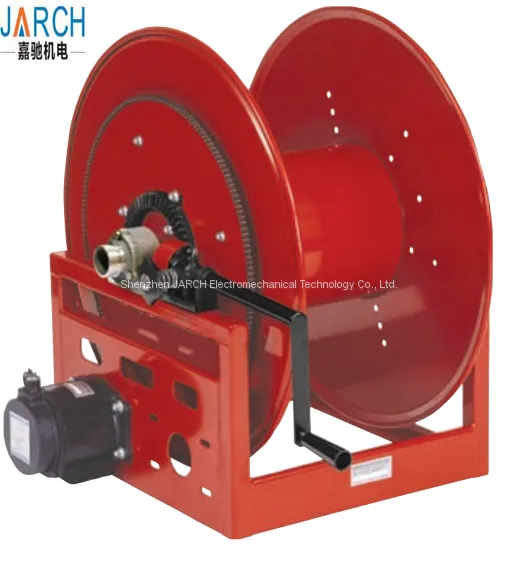

Series 30000 Electric Motor Driven Reels
Application
Heavy Duty 115 V AC Motor Driven 100 ft. Hose Reel,Steel / Customized Stainless Steel Water Cable Reels
Jarch main products:
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
4. Hybrid slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
7. Capsule slip ring series
8. Pancake slip ring series
9. High current slip ring seriels
10.High speed slip ring series
11.Thermocouple slip ring series
12.Miniature slip ring series
13.Wind turbine slip ring series
14.Ethernet slip ring series
15.Explosion proof slip ring series
16.Mercury slip ring series
17.Waterproof slip ring series
Packaging Details: | Standard Export carton Package |
Delivery Details: | Delivery time for Sample: 3 days / Delivery time for Order depends on quantity Shipping:BY DHL, FedEx, UPS or TNT...... |
Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.
To reduce spring tension:
This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.
*For Series D9000 reels, you will have to remove the bumper and control handle then feed end of hose through roller bracket assembly to add or remove wraps of hose from the reel drum.
2.How do I install a new drive spring and set pre-turns?
We have several different types of spring driven reels. Each require a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.
For how many wraps of "pre-tension" to put on the reel, please reference the chart below.
Spring Number | Wraps Required |
S400030 | 18 |
S404230 | 13 |
S504240 | 19 |
S505740 | 13 |
S503755 | 21 |
S600050 | 21 |
S600625 | 13 |
S600620 | 19 |
S504230 | 17 |
602718-80 | 33 |
602720-100 | 27 |
602720-70 | 25 |
602721-80 | 21 |
602733 | 33 |
3.Can my spring driven reel be made "constant tension"?
While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.
Please contact Reelcraft Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.
4.Reel will not latch
This could mean it has a broken latch spring, bent latch pawl or latch plate. The broken part(s) will need to be replace.
If you have any questions, please contact us without any hesitation.
