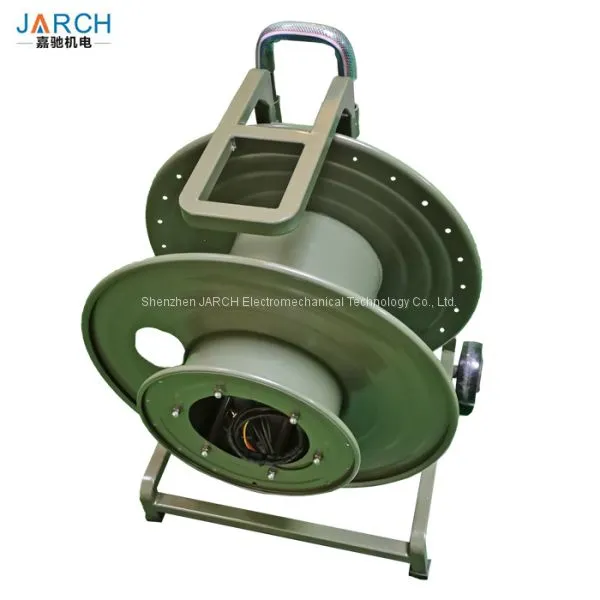

JARCH 500m Fiber optic cable reel for Field operation
500m Fiber optic cable reel for Field operation
Technical features of Power Electric explosion proof cable reel Drum:
1. The shell of rotary plate and explosion-proof bolt is cast aluminum alloy with plastic sprayed surface;
2. Small circuit breaker with leakage protection can be installed inside;
3. There are separate and matching instructions on the plug, and the earthing contact of the plug is longer than the main contact;
4. Connect the earthing plug first when it is inserted, and disconnect the earthing plug after it is removed;
5. Plug and socket have interlocking device, which can be plugged and unplugged after power failure;
6. The cable reel is flexible in rotation, with bracket and walking wheel for easy movement
7. Standard cable length is 30m,can be extended to 100m as required
8. Reducing cabling requirements and installation costs
Military Grade Spring Retractable Power Electric explosion proof cable reel Drum for electric wire rope hoist crane
500m Fiber optic cable reel for Field operation
If you have any questions, please contact us without any hesitation.
|
Shenzhen JARCH Electronics Technology Co.,Ltd.
Main Item list: Spring Driven Reels,Motor Driven Reels,Hand Crank Reels,SS304 /316 Reels,Custom Reels,Slip Rings,Rotary Joints
Customer Service:
ATTN: Ms.Kris Yao E-mail: sales1 jarch_cablereel Phone&WhatsApp: 008613631620907 Skype: JARCH_Sales Wechat: jarchcompany
|
Scan the Wechat in here |
Founded in 2006, Shenzhen JARCH Electromechanical Technology Co., Ltd. is located in Shenzhen,China. We are a professional enterprise engaged in the manufacture and sale of Cable Reels & Hose Reels. We can supply a wide range of products to meet ever-changing market demands. Customized orders are welcomed,we can offer the best solution for your equipments.Outputting 1,000,000 sets every year, our main markets include North America,Eastern Europe,South Asia,Northern Europe,Western Europe,Oceania. Our company insists on the principle of Providing the High quanlity Product to customer in the Best Price.We are increasingly expanding our international market share based on quality products, excellent service, reasonable price and timely delivery. Please contact us at any time for more information.
500m Fiber optic cable reel for Field operation
Adding wraps of hose will increase spring tension. This can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.
To reduce spring tension:
This can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.
*For Series D9000 reels, you will have to remove the bumper and control handle then feed end of hose through roller bracket assembly to add or remove wraps of hose from the reel drum.
2.How do I install a new drive spring and set pre-turns?
We have several different types of spring driven reels. Each require a slightly different set of instructions. For "How-To" instructions on replacing a drive spring please have your reel model or drive spring number available and consult customer service for instructions.
3.Can my spring driven reel be made "constant tension"?
While most JARCH spring retractable reels can be made "constant tension" at the factory or by simply removing the latching system there are some models that may not have this capability.
Please contact Reelcraft Customer Service to assure that the specific reel you have or require is capable of or available as a "constant tension" model.
This could mean it has a broken latch spring, bent latch pawl or latch plate. The broken part(s) will need to be replace.
500m Fiber optic cable reel for Field operation
