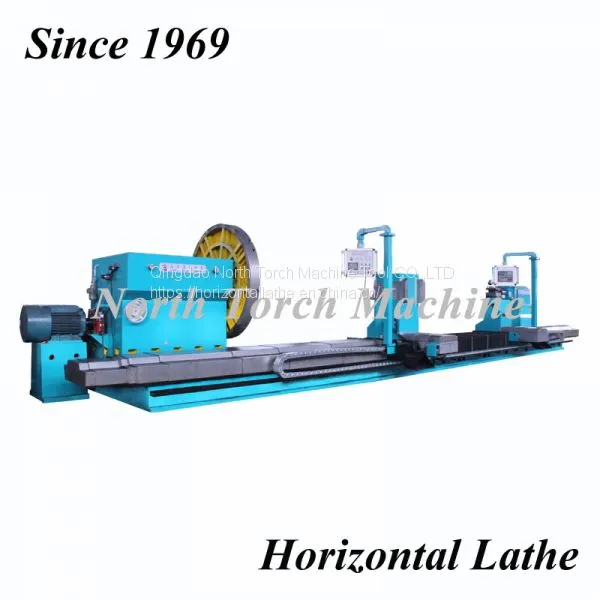

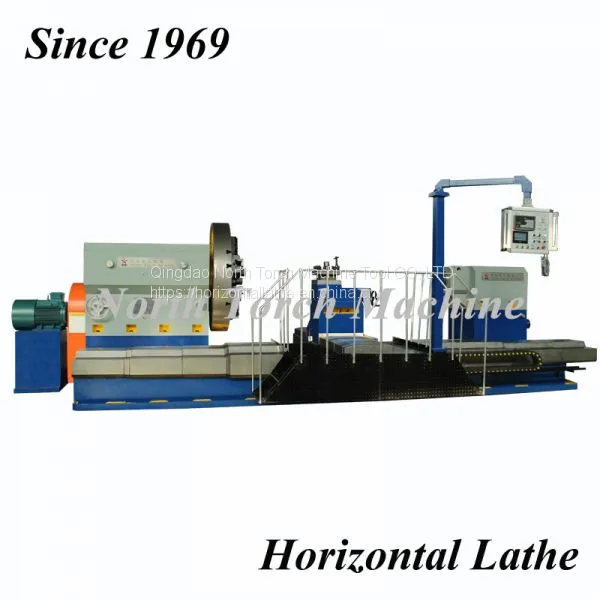

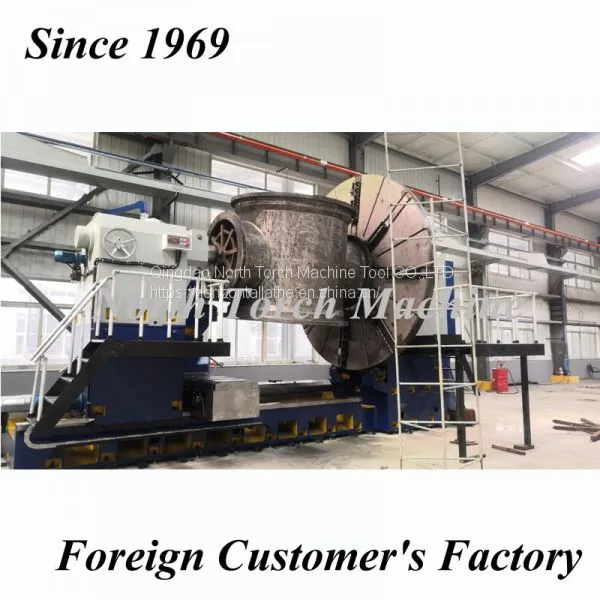

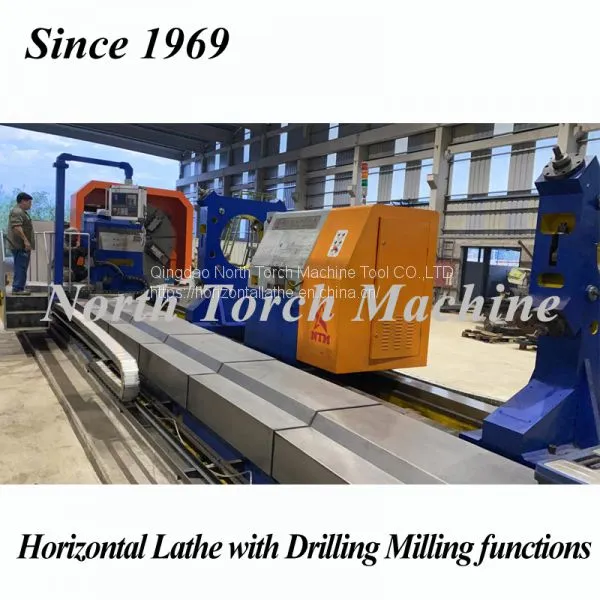

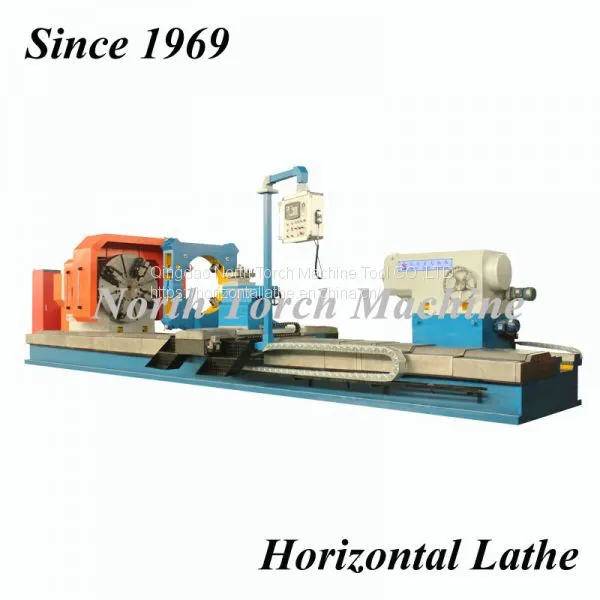

Professional Horizontal Lathe Machine for Turning 14 Meters Welding Pipe
US$ 1 - 10000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
NTM or customized lathe brand is also available
Place of Origin:
China
Model Number:
CK64125 CK61160 CK64200 CK64250 CK64300 CK64500
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao,China
Delivery Detail:
2 days
Related Products
-
High Quality Heavy Duty Horizontal Lathe Machine for Turning Shaft, Cylinder,Roll,PipeUS$ 1 - 999MOQ: 1 Unit -
Made in China Horizontal Lathe Machine for Turning Shaft, Cylinder,Roll,PipeUS$ 1 - 999MOQ: 1 Unit
-
Heavy Duty Horizontal Lathe With 2 Cutting Tool CarriagesUS$ 1 - 999MOQ: 1 Unit
-
Special Designed Heavy Duty Horizontal Lathe With 2 Cutting Tool CarriagesUS$ 1 - 999MOQ: 1 Unit
-
Customized Heavy Duty Horizontal Lathe Machine for Turning 40T CylinderUS$ 1 - 999MOQ: 1 Unit
Brand Name
NTM or customized lathe brand is also available
Place of Origin
China
Model Number
CK64125 CK61160 CK64200 CK64250 CK64300 CK64500
Type
Horizontal
Certification
ISO9001, CE, EAC, BV
After-sales Service Provided
Engineers available to service machinery overseas
Weight
15T
Dimension(L*W*H)
5600*2400*2300
Voltage
380V, 415V, 220V according to customer local request
Condition
New
Power(W)
37KW
Automatic Grade
Automatic
CNC or Not
CNC
Max. Swing Diameter
1250 mm

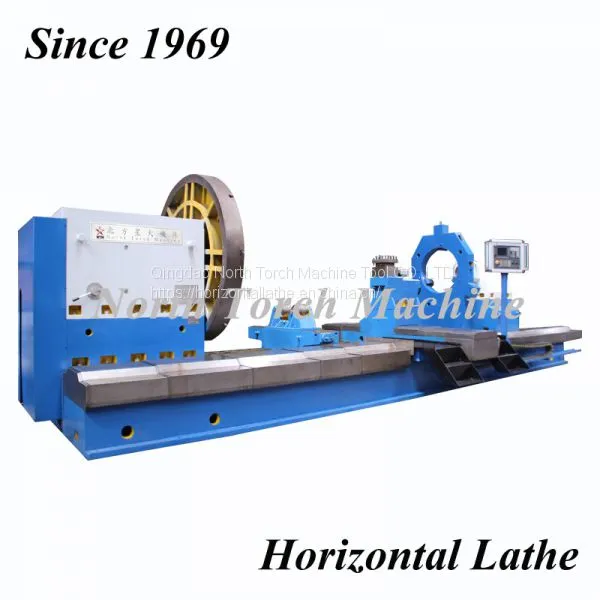

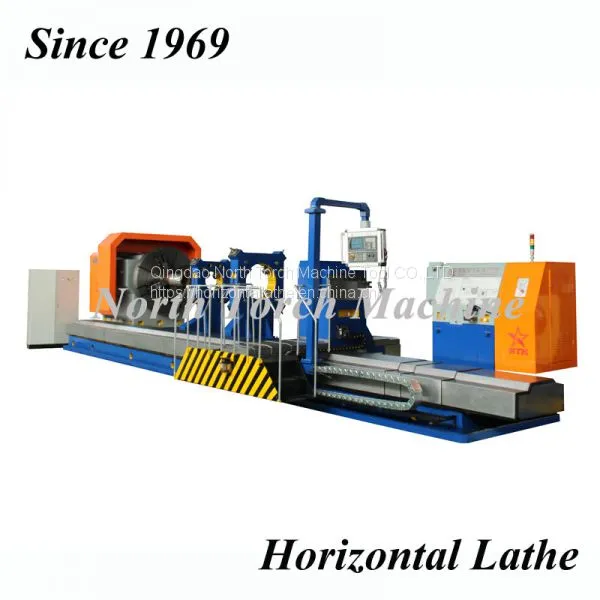

Heavy Duty Horizontal Lathe Machine
For Turning Auto Spare Parts, Alloy wheel,Tube Plate,Tire Mold,Wheel Hub Turbine,Diameter 2000 mm Flange,Oil Pan,etc
Exported to Norway, Chile, Pakistan, Thailand, Georgia, Iran,Mexico.
For Turning Auto Spare Parts, Alloy wheel,Tube Plate,Tire Mold,Wheel Hub Turbine,Diameter 2000 mm Flange,Oil Pan,etc
Exported to Norway, Chile, Pakistan, Thailand, Georgia, Iran,Mexico.
More than 50 years' experience in machinery industry since 1960s.
Manual Control,FANUC ,SIMENS or Chinese Brand system (Optional)
Base adopts triangular guide design
Reasonable structure
High performance with low cost
Maximize Customer's Profitability under the minimum invest cost compared with other competitors.
We are specialized in designing and manufacturing customized lathes for over 50 years , if you have special request and demands, please feel free to contact us.
Application: The base guide of floor-type lathe adopts rectangular structure, which ensures a large span and high rigidity. It is very suitable for low speed and high load cuttings. This machine has a high carrying capacity, high rigidity, optimal appearance design and easy operation. It is widely used for machining neutral parts with large diameter, such as tire mold, large flange tube plate, turbine parts, end enclosure, etc. It is also extensively applicable for manufacturing the parts of chemical industry, heavy machinery, mining and railways equipments and aviation industry.
2. Standard Technical Parametes
| CG61 series Heavy Duty horizontal Lathe | |||||||
| Name | Unit | CG61160 | CG61200 | CG61250 | CG61315 | CG61400 | CG61500 |
| Guide rail Type | Rectangle 4 Guide Rails | Rectangle 4 Guide Rails | Rectangle 4 Guide Rails | Rectangle 4 Guide Rails | Rectangle 4 Guide Rails | Rectangle 4 Guide Rails | |
| Swing diameter over machine bed | mm | φ1600mm | φ2000mm | φ2500mm | φ3150mm | φ4000 | φ5000 |
| Swing diameter over cutting tool carriage | mm | φ1250mm | φ1600mm | φ2000mm | φ2500mm | φ3500mm | φ4000 |
| Guide rail width of machine bed | mm | 1600mm | 1800mm | 2000mm | 2000mm | 2200mm | 2500mm |
| 4 jaws single action Chuck diameter | mm | φ1250mm | φ1600mm | φ2000mm | φ2700mm | φ3000mm | φ4000mm |
| Chuck jaw seat length | mm | 250mm Heavy chuck jaw seat | 320m Heavy chuck jaw seat | ||||
| Max.Length of work-piece | mm | 8000mm | 10000mm | 10000mm | 10000mm | 15000mm | q20000mm |
| Work-piece Weight | T | 20T | 25T | 32T | 40T | 50T | 63T |
| Spindle Diameter | mm | φ260mm | φ300mm | φ300mm | φ320mm | φ360mm | φ400mm |
| Spindle Speed | r/min | 5-165r/min | 2-165r/min | 1-92r/min | 1-92r/min | 1-60r/min | 0.5-80r/min |
| Spindle tips | Metric 120 1:7 | Metric 160 1:7 | |||||
| X Axis Stroke | mm | 50-800mm | 100-1000mm` | 100-1250mm | 150-1580mm | 200-2000mm | 200-2500mm |
| Z Axis Stroke | mm | 2000-8000mm | 2000-10000mm | 2500-10000mm | 2500-10000mm | 3000-15000mm | 3000-20000mm |
| X axis rapid speed | mm/min | 2500mm/min | 2500mm/min | 2500mm/min | 2000mm/min | 2000mm/min | 2000mm/min |
| Z axis rapid speed | mm/min | 3000mm/min | 3000mm/min | 3000mm/min | 2500mm/min | 2500mm/min | 2500mm/min |
| Cutting tool carriage type | 300mm Electrical type | ||||||
| F Cutting tool blade size | mm | 60*60mm | 70*70mm | 70*70mm | 80*80mm | 80*80mm | 80*80mm |
| Tailstock spinlde diameter | mm | φ290mm | φ290mm | φ320mm | φ320mm | φ360mm | φ410mm |
| Tailstock sleeve stroke | mm | 300mm | 300mm | 300mm | 300mm | 300mm | 300mm |
| Tailstock moving method | Electrical | Electrical | Electrical | Electrical | Electrical | Electrical | |
| Tailstock Tip | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 120 1:7 | Metric 160 1:7 | |
| Max.Torque of cutting tool carriage | KN | 60KN | 80KN | 80KN | 80KN | 100KN | 150KN |
| Max.Torque of Chuck | KN·m | 25KN·m | 35KN·m | 43KN·m | 55KN·m | 90KN·m | 233KN·m |
| Total Cutting Force | KN | 65KN | 90KN | 110KN | 120KN | 160KN | 210KN |
| Motor Parameters | |||||||
| Total Power | KW | 45KW | 55KW | 75KW | 75KW | 90KW | 128KW |
| Lubrication Motor Power | KW | 0.37KW | 0.55KW | 0.56KW | 0.57KW | 0.58KW | 0.59KW |
| Machine Accuracy | |||||||
| Cylindricity | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Platness | mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm | 0.03/300mm |
| Roughtness | Ra | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 | Ra3.2 |
| Machine Dimensions | mm | 9200*2650*2300mm | 9600*3200*3600mm | 10000*3600*2500mm | 11000*4000*3700mm | 11200*5000*4700mm | 11500*5500*5150mm |
| Machine Weight | T | 30T | 35T | 45T | 50T | 55T | 65T |
3. After -salse Service and Maintenance
1. We provide professional technical training for users' operators and maintenance staff to enable them to properly use and operate the lathe and carry out normal maintenance.
2. Warranty period: One year after acceptance of the lathe.
3. In case of any quality problem found during operation, the factory will dispatch personnel to the user's location within 48 hours (domestic users) & within 3 days (Foreign Customer) and the technical staff won't leave before resolving the malfuntion.
4. The company will freely provide different electrical and mechanical parts for the purchased lathe timely within warranty period.
5. The company will provide lifetime guarantee for the consulting services in terms of application, maintenance, repair, renovation, etc of equipments.
For more details, please feel free to contact us. Thanks!
Tag: Heavy Duty Horizontal Lathe, threading flange lathe, facing lathe, horizontal flange threading lathe
