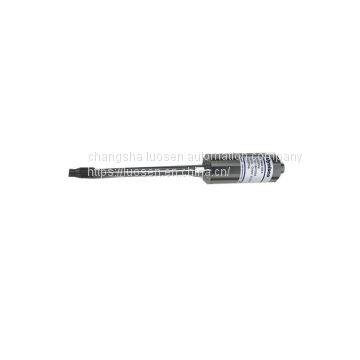

Help CenterMelt Pressure Sensor Melt Pressure Transmitter With High Quality
Related Products
-
Replace Dynisco Melt Pressure Sensor for Measuring the Melt 35mpa Melt Pressure TransmitterUS$ 150 - 500MOQ: 1 Piece -
Low Cost Melt Pressure Sensor Used in Extruder Injection Molding MachineUS$ 100 - 250MOQ: 1 Piece
-
High Temperature Melt Pressure Sensor Melt Pressure TransmitterUS$ 200 - 270MOQ: 1 Piece
-
Melt Pressure Transmitter for ExtruderUS$ 100 - 250MOQ: 1 Piece
-
High Temperature Melt Pressure Sensor for Rubber EquipmentUS$ 100 - 250MOQ: 1 Piece
Promesstec high temperature melt 4-20 MA ,0-10 V pressure sensor transmitter

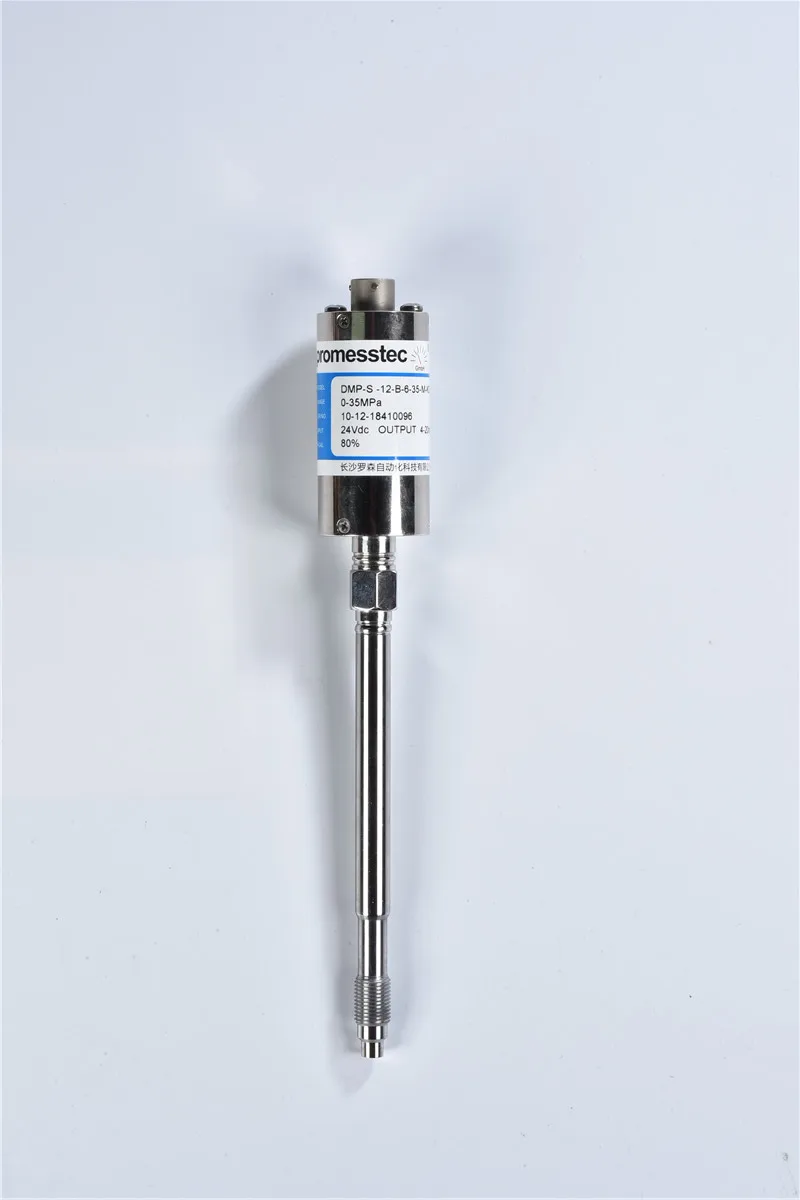

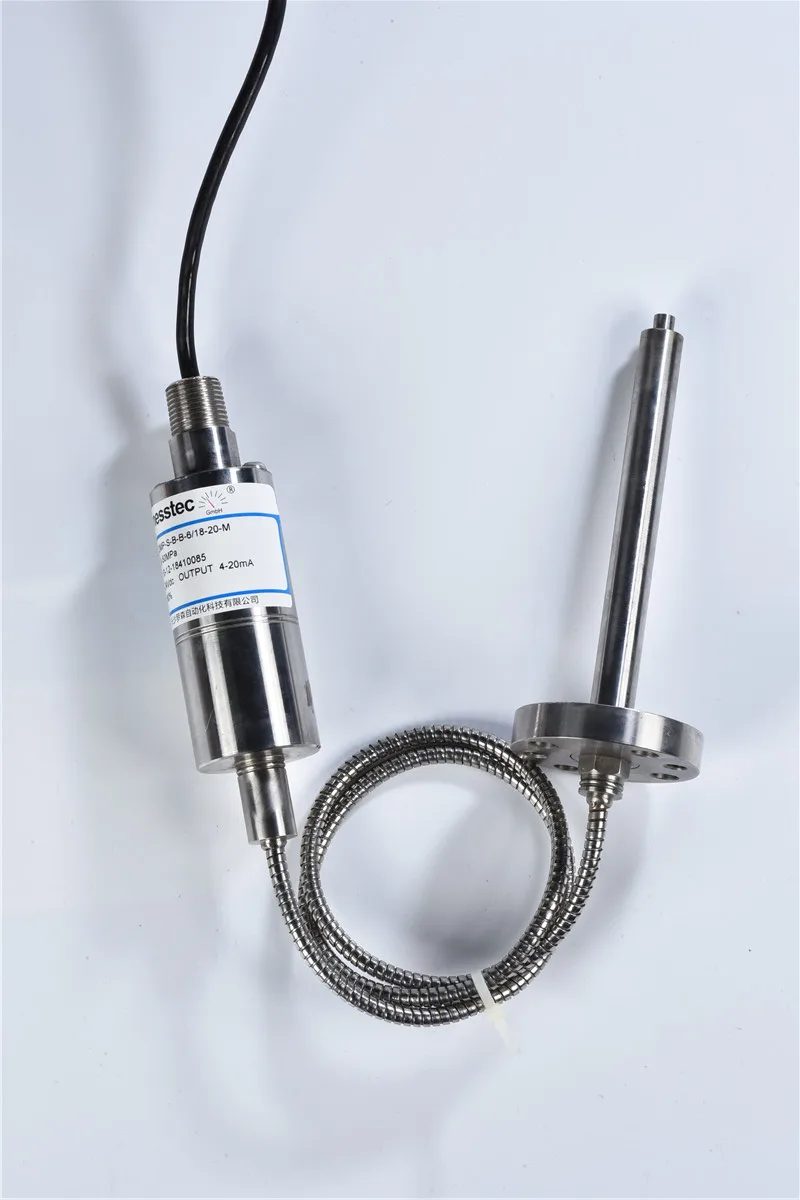

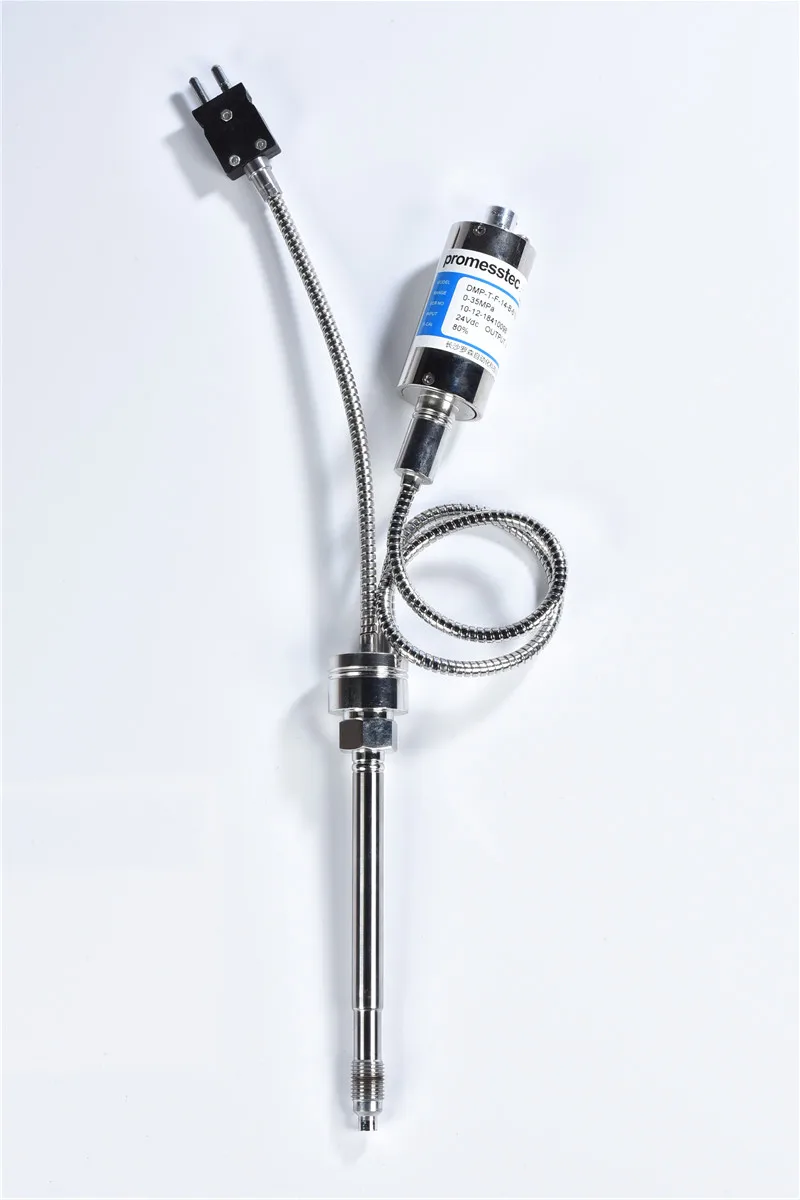

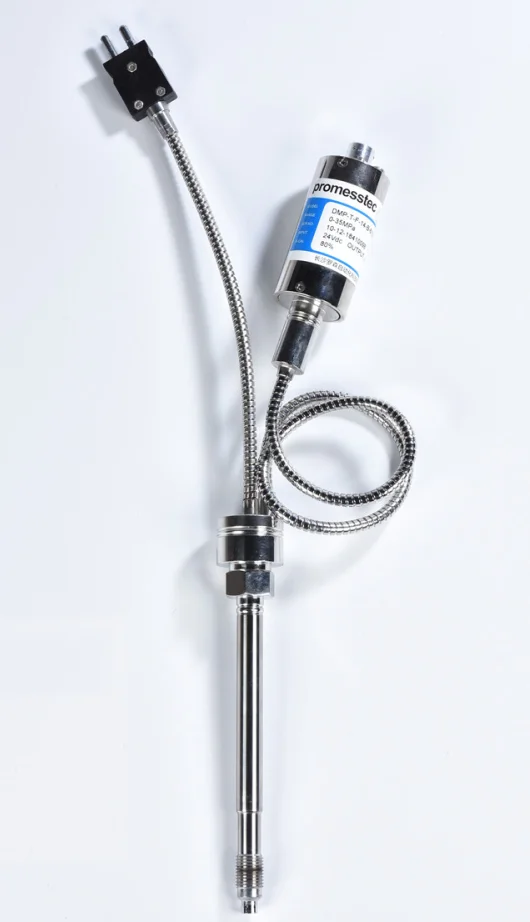

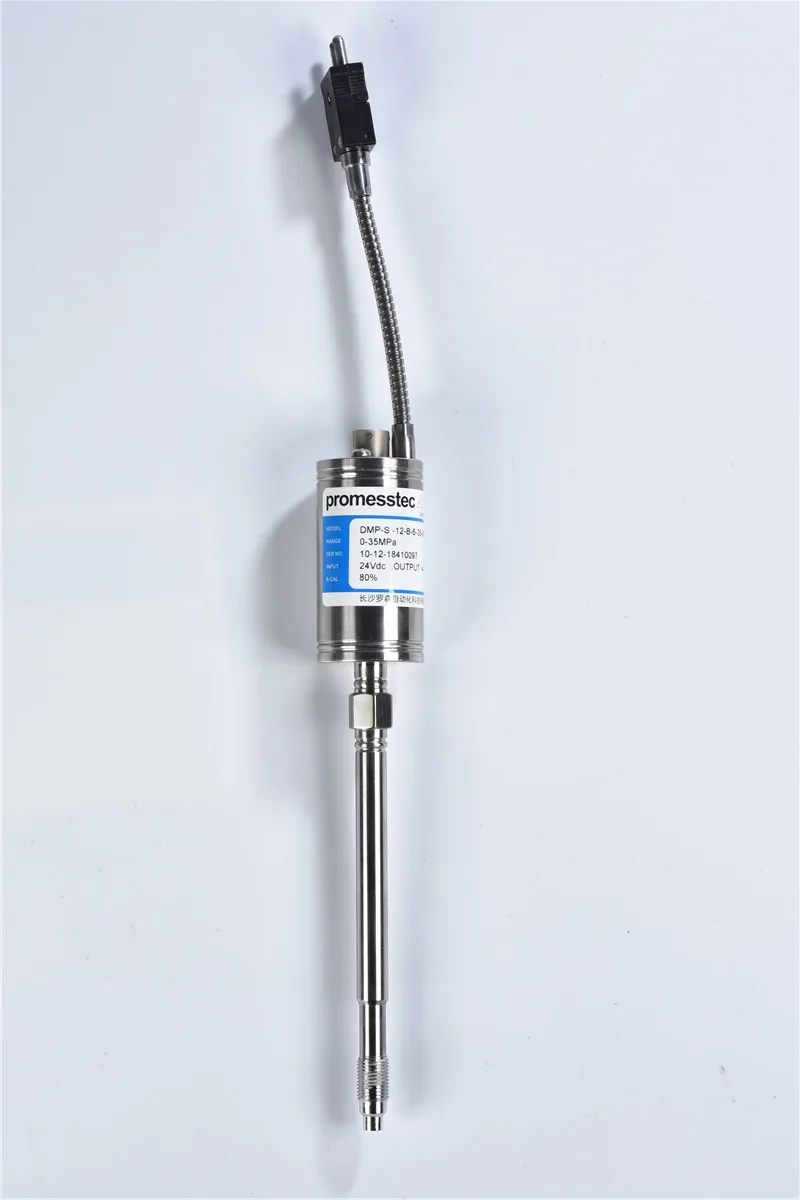

Product DescriptionDMP standard pressure transducer/transmitter, is a straight rod melt pressure transducer/transmitter introduced by our company for the domestic market, in which DMP-T is equipped with thermocouple to measure pressure and temperature at the same point. This series of products can be matched with PY500 series intelligent digital pressure instruments of our company and the same type of domestic and foreign press instruments. Its advantage is that the pressure measurement is accurate and reliable, and the amplified signal is directly entered into the PLC control system, 80% inner calibration, simple installation and high cost ratio. It is widely used in high temperature pressure monitoring of chemical fiber and plastic extrusion industry.
|
Application Chemical fiber Equipment Plastic and Rubber manufacturing Equipment Pharmaceutical, food processing, packaging equipment |
Feature 80% inner calibration Accuracy is better than that of 1%FS Excellent stability and repeatability Zero & full span can be adjustable Standard diaphragm is 15-15PH SS Other diaphragms are available upon request |
Technical specifications
Ordinary |
Data |
Remarks |
|
Pressure range |
0-3.5MPa...0-300MPa |
0-500psi...0-43511 psi |
|
Combined Accuracy |
±0.5%FS±1.0%FS (including linear; repeatability & hysteretic nature) |
including linear; repeatability & hysteretic nature |
|
Output |
Transducer |
Transmitter |
|
3.33 mV/V. 2mV/V |
4-20mA, 0-10V. 0-5V |
||
Input Voltage |
10VDC (9-12V) |
24VDC (12-36V) |
|
Repeatability |
± 0.2%FS |
||
OutputImpedance |
350 Ohms ±10% |
||
Internal Shunt Calibration |
80% FS ± 1 % |
||
Max Diaphragm Temperature |
400℃ |
||
Diaphragm Material |
15-5PHwith Coated Stainless Steel Shell |
||
Electrical connector |
5 PIN,6 PIN connector |
||
Process connector |
1/2 -20UNF, M14 x 1.5, M18 x 1.5.M22 x 1.5,customer design |
||
Example of ordering
DMP |
Electrical connector |
Mounting screw thread |
Transducer/ Transmitter |
Packaging & Shipping
Our Services
If you need to know more about the pressure measuring instrument /pressure senor/pressure transmitter/pressure gauge .We also do other three major brands. Please feel free to contact me with your requirement , I will give you the most accurate quotation, including alternative models! |
