elt pressure sensor pressure sensor Transducert Description of product melt pressure sensor

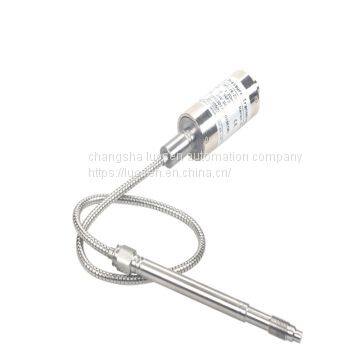

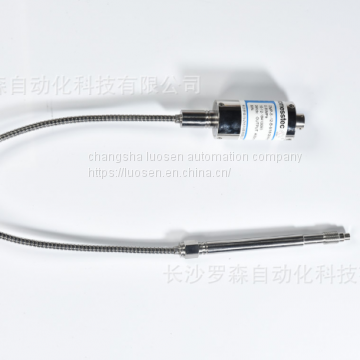

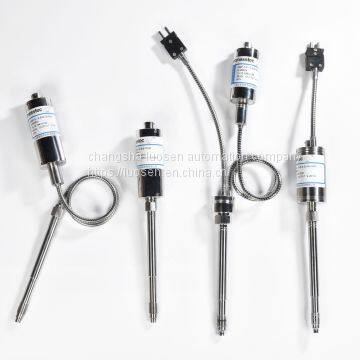

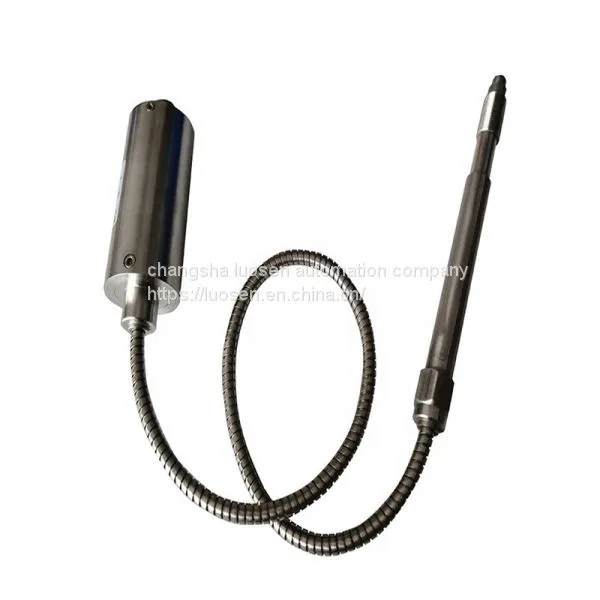

DMP standard pressure transducer/transmitter, is a straight rod melt pressure transducer/transmitter introduced by our company for the domestic market, in which DMP-T is equipped with thermocouple to measure pressure and temperature at the same point. This series of products can be matched with PY500 series intelligent digital pressure instruments of our company and the same type of domestic and foreign press instruments. Its advantage is that the pressure measurement is accurate and reliable, and the amplified signal is directly entered into the PLC control system, 80% inner calibration, simple installation and high cost ratio. It is widely used in high temperature pressure monitoring of chemical fiber and plastic extrusion industry.
Ordinary |
Data |
Remarks |
|
Pressure range |
0-3.5MPa...0-300MPa |
0-500psi...0-43511 psi |
|
Combined Accuracy |
±0.5%FS±1.0%FS (including linear; repeatability & hysteretic nature) |
including linear; repeatability & hysteretic nature |
|
Output |
Transducer |
Transmitter |
|
3.33 mV/V. 2mV/V |
4-20mA, 0-10V. 0-5V |
||
Input Voltage |
10VDC (9-12V) |
24VDC (12-36V) |
|
Repeatability |
± 0.2%FS |
||
OutputImpedance |
350 Ohms ±10% |
||
Internal Shunt Calibration |
80% FS ± 1 % |
||
Max Diaphragm Temperature |
400℃ |
||
Diaphragm Material |
15-5PHwith Coated Stainless Steel Shell |
||
Electrical connector |
5 PIN,6 PIN |
||
