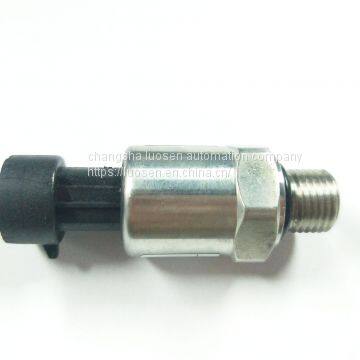

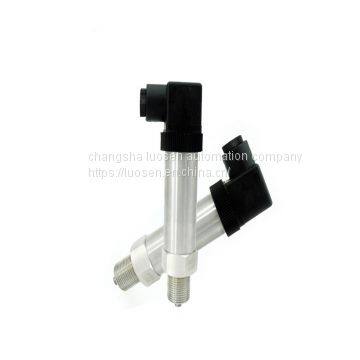

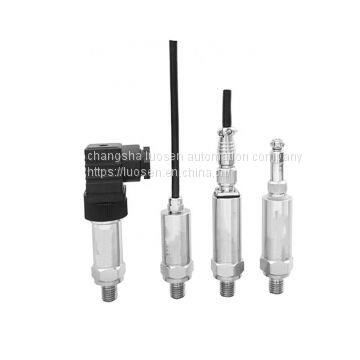

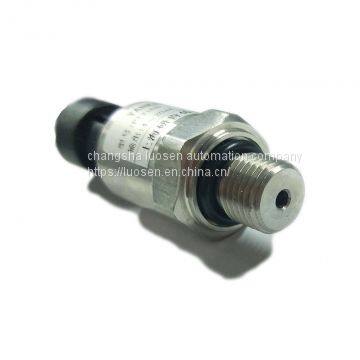

Help Center4-20ma Pressure Snesor
Related Products
-
4-20ma Output Pressure TransmitterUS$ 35 - 45MOQ: 1 Piece -
Absolute Pressure TransmitterUS$ 38 - 45MOQ: 1 Piece
-
Pressure Sensor 4-20ma With 24vdcUS$ 28.5 - 35MOQ: 1 Piece
-
Pressure Transmitter 0-10bar Air/water/gas Pressure SensorUS$ 28.5 - 35MOQ: 1 Piece
-
Promesstec Brand Small Pressure SensorUS$ 28.5 - 35MOQ: 1 Piece
Technical specifications
Ordinary |
0- 1Mpa~200Mpa |
Combined Accuracy |
0.25%FS;0.5%FS; 1%FS |
Nolinear |
Full range of0.2%FS |
Repeatability |
Full range of0.05% |
Output signal |
4-20mA (two-wire system) , 2MV/V, 0-5V; 0—10V (three-wire system); |
Supply voltage |
24(12- 36)VDC(amplifying signal) |
Operating temperature range |
-40-120℃ |
Compensation temperature range temperature range |
-20~80℃ |
Load pressure |
150%FS |
Dielectric material |
Pressure joint material is SS, shell material is SS or hard aluminium optional |
IP grade Electrical connector |
Hirschmann(DIN43650), Enclosure protectionIP65;Waterproof Gland, Enclosure protectionIP68;Aviation plug-in, Enclosure protectionIP45; |
Pressure connector |
G1/4, G1/2, 1/2NPT, 1/4NPT, M12*1.5 etc.(customer design) |
Zero & full span adjustment |
This function can be added as required, with external (side and top) and internal adjustments, but the shape and size will be changed. |
Example of ordering
|
DMP 331 332 333 |
Transducer/Transmitter |
mounting screw thread |
Electrical connector |
Lead length |
Range |
Output signal |
Accuracy |
|
Dimension
Our Services
This model is on sale, if you have any purchase order plan, please don't hesitate to contact Nancy to get the lowest quote now!
FAQ
Q: When will you give us a response A: We will contact with you within 1 hour Q:How to order A:please answer below questions: 2.Working Temperature? 3.Pressure range 4.Output signal 5.Electronic connection Q: Can we visit your factory? A: You will be warmed welcomed to visit our factory Q: How about the management quality? A: We have complete quality control system, and all the products will be inspected by QC department before delivery. Q: How about the payment? A: T / T,Paypal,WU,Credit Assurance,etc are accepted. You will receive full protection of your order, please click on trade guarantee for more details. A: As soon as we receive the payment, we will arrange the production.
Certificate
|
