DBG pneumatic caliper disc brake for textile machine
DBG pneumatic caliper disc brake is a vertical installation brake. It is friction type air applied brake. After supplying air pressure, two friction pads clamped braking disc plate, making it stopped. After exhausting air pressure, springs make two friction pads back, brake released, then braking disc plate rotating continous.

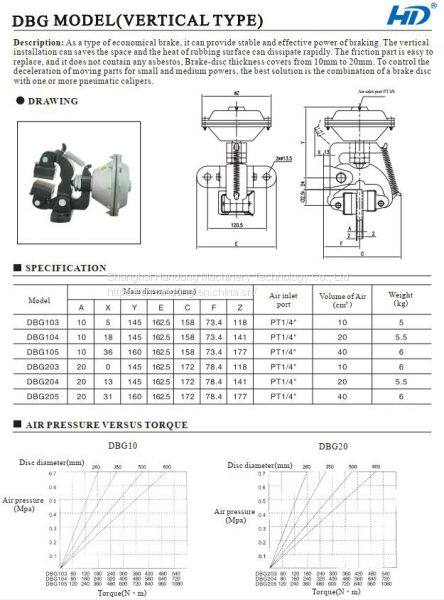

Following is the structure and technical data of DBG pneumatic caliper disc brake:
There are six models of this air applied disc brake, including DBG103, DBG104, DBG105, DBG203, DBG204, DBG205. Different models brake, transmitting torque is different.
Following are the detail technical data of it:
Name: vertical installation caliper disc brake
Model: DBG103, DBG104, DBG105, DBG203, DBG204, DBG205
Brand: HD
Braking disc thickness: 10mm and 20mm
Braking disc diameter: 260N.m or larger
Cylinder head size: 3", 4", 5"
Braking torque: 180N.m - 1080N.m
New friction pad thickness: 14mm
Max one friction pad abrasion: 7mm
Weight: 6-7kgs
HS code: 8483600001
