HDB air driven brake for textile machine
NAB model pneumatic industrial brake is normal releasing brake, which is driven by air pressure. It can be connected with shaft and shaft, shaft and pulley or chain.When there is no air pressure, this brake is in releasing, driving part shaft is working; after inputting air pressure, brake braked, driving part and driven part stopped together.

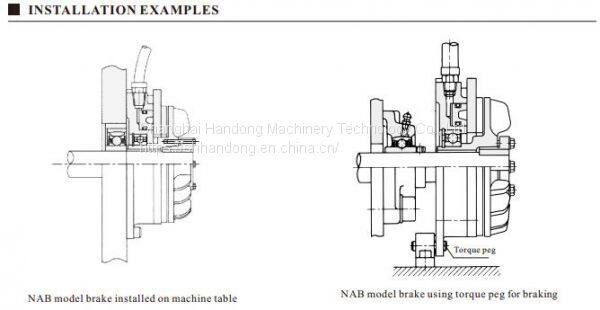

There are two kinds of installation models like this:
In this installation example, on the left, it is shaft--shaft installation, on the right, this brake is fixed via torque peg. In usage, shaft--pulley, V-belt, chain installation is very popular.

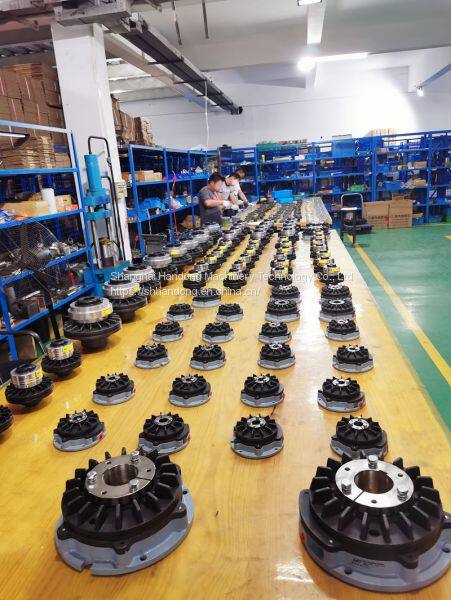

For this kind of air shaft brake, it is very regular and widely used in the industrial. Our brake made by ourselves, so it is with superior quality and economic price. Following is the assemble process of it for your reference:
