Zero buoyancy underwater rov cable

FOB Price

USD $0.3 - $3.5 / Meter

1000 Meters(Min.Order)

Supply Ability 500000 Meter / Meters per Month
Port Shanghai
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	KKC	Place of Origin:	Shanghai, China	Model Number:	ROV Cable
Application:	Industry	Conductor Material:	Copper
Number of Conductors:	Multi-core	Insulation Material:	PE

Product Description

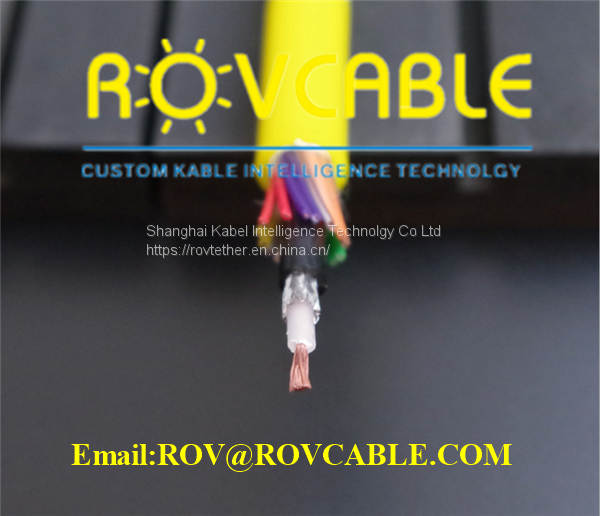

Zero buoyancy underwater rov cable

Floating Cable relies on foam core extrusion capabilities to achieve precise cable buoyancy requirements. It is flexible, movable,UV-stable, good bendability, and abrasion-resistant and may be fitted with choice of jackets to achieve resistance to various chemicals including acids, salt water, oil, and gasoline. Cable is suited for powering and controlling robotic cleaning systems in swimming pools and aquarium facilities as well as marine applications and submersible environmental pumping systems

_Conductors:	_{Bare copper or Tinned copoer stranded}
_Insulation:	_{HT 105℃ PVC insulation}
_{Inner Jacket:}	_{Press extruded TPE}
_Filler:	_{Two filler inside}
_Jackets:	_{Foam PVC/TPE}
_{Working life:}	_{Working life <25years}
_Depth:	_{300/500 VOLTS}
_Feature:	_{Property Water-proof/Oil-resistant/Cold-resistant}

Specification

Specification	Insulation Diameter(mm)	Sheath Diameter(mm)
2 x 12 AWG	4.0	18.0
2 x 16 AWG	2.9	12.4
2 x 18 AWG	2.4	10.2
2x16AWG + 1x18AWG	2.9/2.4	13.5
2x16AWG + 2x22AWG	2.9/2.0	13.2
4x16AWG + 2x20AWG	2.9/2.0	17.8
Coxial + 3x2x16AWG	/	/

Products Show

The deep sea cable is filled with a special gel. This ensures a form stable behavior at up to 500 bars lateral pressure.

3.5 mill. bending cycles longitudinall and transversally watertight

Sea water resistant

Pressure resistant up to 500 bars

Applications

ROV Tether/ROV Umbilical/Underwater Floating Cable

Cable is suited for powering and controlling robotic cleaning systems in swimming pools and aquarium facilities as well as marine applications and submersible environmental pumping systems

Certifications

Product Process

Packing & Delivery

FAQ

Contact Us

Shanghai Kabel Intelligence Technolgy Co Ltd: Contact nameAllen
