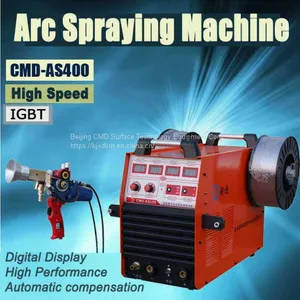

CMD-AS400 Intelligent Digital Inverter Arc Spray Machine
The principle of arc spray is using arc as hot source to atomize the melted metal wire, spray it to the surface of the work piece in high speed and then form a spray coating.
CMD-AS Intelligent Digital Inverter arc spray machine can spray Φ1.0-3.0mm wire of zinc, aluminum, stainless steel, hard chrome spraying, molybdenum, copper, nickel, nickel chromium alloy. It is suit for large area of anticorrosive engineering, mechanical parts repair and rapid recovery size, all kinds of mould, wear-resistant coating, and production of decorative coating parts repair.
Technical characteristics | ||||
Type |
AS300 |
AS400 |
AS500 |
AS600 |
Power |
17 KVA |
24 KVA |
30 KVA |
35 KVA |
Input Voltage |
AC380 V Three-phase |
|||
Output Voltage |
10-45Vstepless adjustable |
|||
Output Current |
20-300 A |
50-400 A |
50-500A |
50-600A |
Duty Cycle |
100% |
|||
Wire Diameter |
Φ1.0, Φ1.2, Φ1.5, Φ1.6, Φ2.0, Φ3.0 |
|||
Deposition rate |
30Kg/h (Zinc) |
40Kg/h (Zinc) |
53Kg/h (Zinc) |
65 Kg/h (Zinc) |
Weight |
28Kg |
30Kg |
35Kg |
45Kg |
Dimensions |
600×262×445(mm) |
|||
Features |
|
1、Small size and light weight，easy to move on. Import IGBT tubes (fourth generation), high quality assurance. 2、Output voltage and current stable and smooth, strong anti-jamming capability. 3、Stable performance, reliable ignition, prevent to break arc, wire feeding smooth, reliable and can be 24 hours of continuous operation 4、The coating mass density is high, quality is good, porosity is less than 1%. 5、The coating combined with high strength: 30 Mpa - 50 Mpa 6、Arc spraying efficiency is high, stable arc, less spatter , coating deposition rate is 75% 95%。 7、flexible operation, arc spraying width can be fine-tuning. 8、High efficiency and energy saving, low consumption, power saving is 55% than ordinary arc machine . High power factor：up to 0.9. 9、A variety of options: wire drawing, wire pushing, wire drawing and pushing type, Spray inner wall of pipes φ>50. 10、 The whole machine modular, intelligent, digital display, high precision |
Drawing type arc spray gun
Inner Spray Gun | |
CMD-EG20 |
|
Diameter |
Φ50mm |
Length |
600mm |
Standard Wire Tube Length |
2m（can spray pipe of 4m length） |
Optional Wire Tube Length |
3m、5m、10m、12m、15m |
Wire Diameter |
Φ1.6mm、Φ2.0mm |
Spraying productivity |
30Kg （Zinc） |
