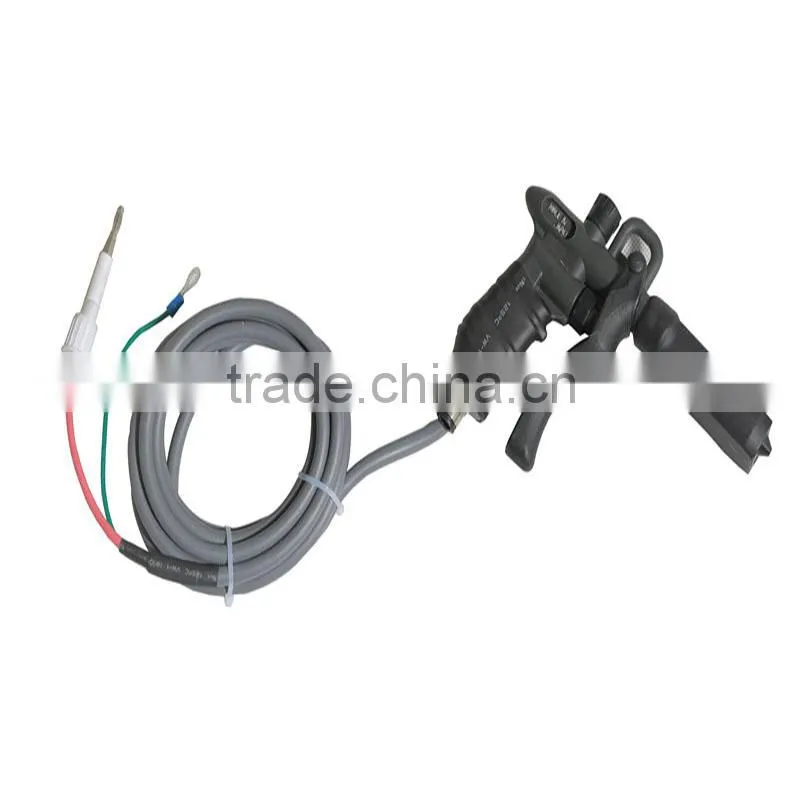

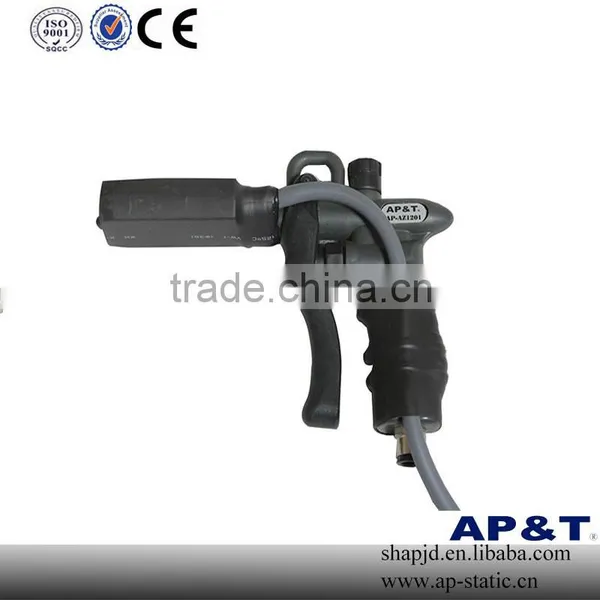

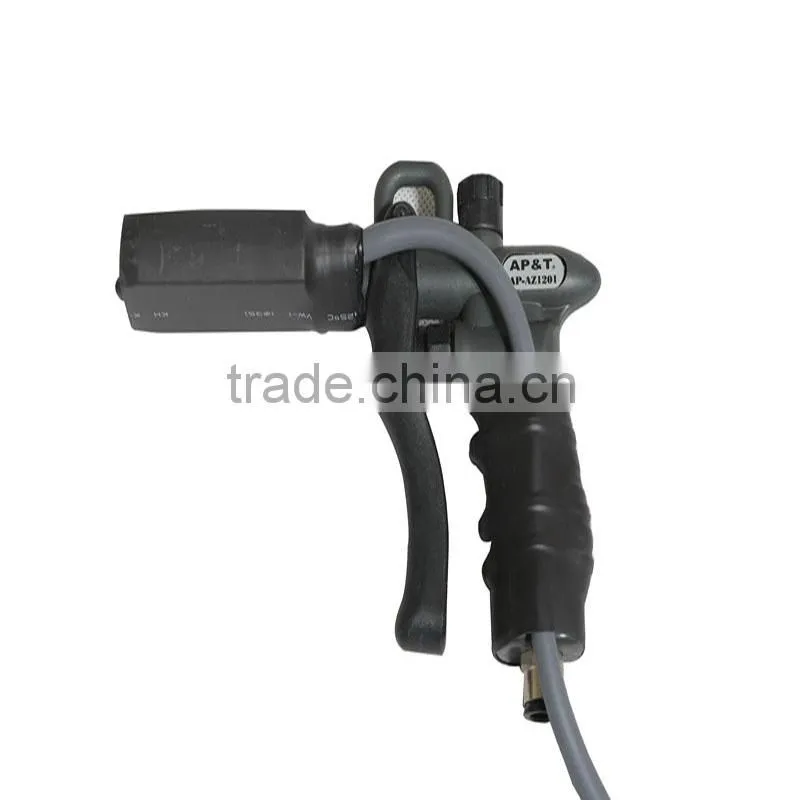

Manufacturers china AP-AZ1201 arc spray gun
Features
1, Gun shape static eliminator
2, Small size and easy installation
3, Safe and reliable working under high voltage and micro current
4, With compressed air source and longer working distance
5, Static eliminating while cleaning the surface dust

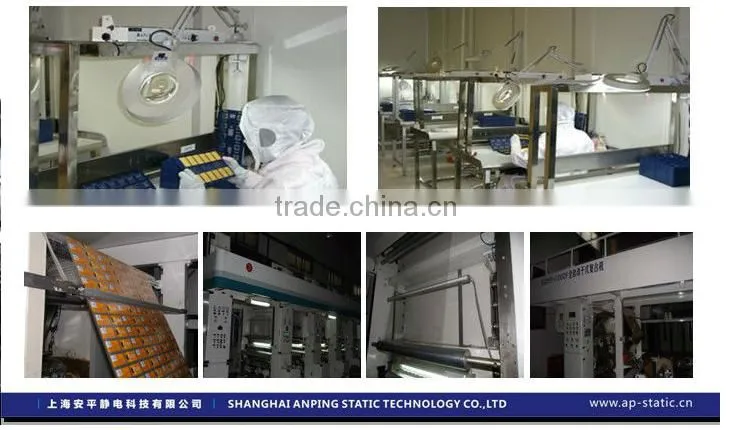

Industry Applications
Used in electronics, injection molding, printing, film and pharmaceutical machinery industries
Working ways (AC)
Specification
Model AP-AZ1201
Input voltage AC 220V/50Hz or 110V/60 Hz
Power 25W
Ion balance ≤|±50V(150mm testing center from the air gun)
Discharge speed ≤1.5s(150mm testing center from the air gun)
Noise ≤65db(150mm from air outlet)
Air pressure range 0.05~0.6MPa
Working temperature 0- 50°C
Air connector 8mm(customize available)
HV cord length 3M
Dimension 193*37*147(L*W*H)
Net weight 450g(include HV cord 3 meters)
Gross weight 510g
Power supply AC-2455-56(A)
Elimination Effect
Testing instrument:3M-711 Static tester
Testing standard:ESD.STM3.1-2000,SJ/T 11446—2013
Testing voltage:±1000V-±100V Attenuation
Testing environment:Humidity:50±5%;Temperature:23±3℃;
Testing Air pressure:0.5MPa
About Anping:
Shanghai Anping Static Technology Co.,Ltd was established in 1999 which is the first Hi-Tech enterprise researching and manufacturing DC ionizer in China.
Our AP&T brand series products include ionizing air blower, ionizing air gun, ion bar, ion nozzle with various specifications are wildly used in semi conduct, encapsulation, opto-electrical, electronics, communication, spray finishing, printing, textile, pharmaceutical equipments, construction material, injection molding industries. Our products have won good reputation of our users and have been exported to Japan, Korean, South East Asia, Europe , North and South America.
As councilman of China Electronics lndustry Association Anti-static Equipment Branch, we devote our efforts in providing comprehensive perfect solution of static control and eliminating and serve our customers with our strong technical strength and rich industry experience. We are ready to supply you over valued products and technology. We’ll be your reliable partner in ESD field.
Why choose us:
Anping’s Qualification:
A. 15-year’s experience in static industry.
B. Customers from more than 120 countries.
C. Successful cases from dozens of countries.
D. Professional team offers technical support to customers.
E. 24hours online serivces from our professional foreign trade department.
F. All our machines passed the CE certificate.
G. Our technicians go to different countries to help customers solve problems.
Choosing Anping, you will get not only the products, but also the better service, and better operating mode.
