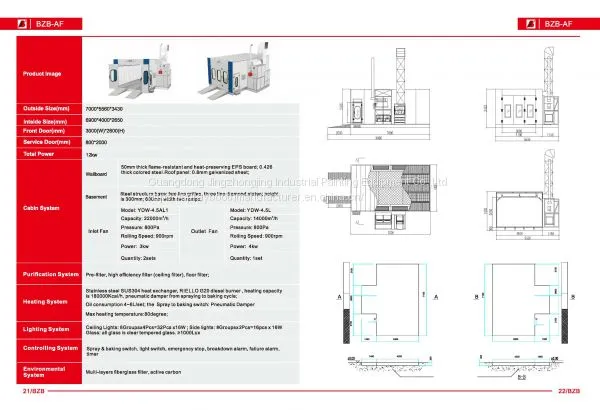

Help CenterAuto Spray Booth Standard Car Paint Booth BZB-AF With High Quality
Related Products
-
Integrated Disinfection Cabinet Ultrasonic Atomization Sterilizer for OfficeUS$ 3450 - 4000MOQ: 1 Set -
Whole Sale Disposable Protective Mask KN95 Virus Protection Mask Dust and FogUS$ 1.39 - 1.99MOQ: 100 Pieces
-
Automatic Large Workpiece Powder Spray Booth for Metal FabricationNegotiableMOQ: 1 Set
-
Mild Steel Galvanized Grating for Spray Booths and Car Wash Drainage SystemsNegotiableMOQ: 500 Square Meters
-
Water Curtain Spray Booth, Spray Booths, Painting RoomNegotiableMOQ: 1 Unit
Outside Dimension(mm) |
7040*5600*3400(L*W*H) |
Inside Dimension(mm) |
6900*4000*2650(L*W*H) |
Front Door(mm) |
3000*2600(W*H) |
Service door(mm) |
2000*800(W*H) |
Total Power |
11KW |
||
Cabin system |
Wall panel |
50mm EPS sandwich panel, steel sheet thickness: 0.426mm |
|
Ceiling panel |
Galvanized steel plates. |
||
Basement |
300mm depth, Two rows of grids and three rows of diamond steel plates basement |
||
Ramps |
Two pieces 2000*600mm ramps |
||
Glass |
5mm safety tempered glass |
||
Windows |
Square glass windows |
||
Air Make-up System |
Air Inlet fan system |
YDW-4.5AL centrifuge fan, air supply capacity is 22000m3/h, power: 3Kw. Quantities: 2sets. |
|
Exhausted fan system |
YDW-4.5L centrifuge fan, air supply capacity is 14000m3/h, power: 4Kw. Quantities: 1 set. |
||
Ai capacity for fresh air |
22000m3/h |
||
Air Flowing speed |
0.22m/s in empty booth |
||
Air ducting |
4meters straight ducting, one elbow. |
||
Purification System |
Pre-filter |
G3 grade. |
|
Ceiling filter |
EU5 / F5 |
||
Floor filter |
green fiber glass filter / G3 grade |
||
Exhausted fan Filters |
green fiber glass filter and active carbon |
||
Heating System |
Heat Exchanger |
SUS304 material, argon arc welding. |
|
Heating burner: |
Riello G20 diesel oil burner(gas burner for option) |
||
Heating productivity |
180000Kcal/h |
||
Spray to baking switch |
10N BELIMO brand electrical damper |
||
Chimney ducting |
4 meters ducting and one chimney elbow. |
||
Max heating temperature |
80degrees |
||
fuel consumption |
6-8L /vehicle |
||
Lighting System |
Ceiling lights |
8 Units, each 4pcs x 18W LED lamps |
|
Side lights |
8 Units, each2pcs x 18W LED lamps |
||
Illumination |
800LUX |
||
Controlling system |
Switched control panel |
spraying & baking switch, lighting switch, emergency stop, |
|
