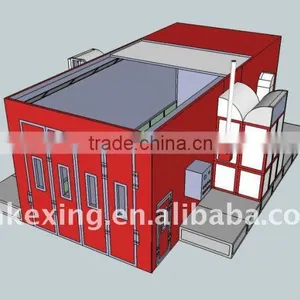

Help CenterSpray Booth Manufacture Spray Booth
Related Products
Specifications
Booth size:15000(L)*4000(W)*4000(H)
Working doors:4 sets Personnel doors:3 sets
Fans:4 sets Heater:1 set
Color:blue,whit
|
Booth overall size (mm) |
Working doors |
Personnel Doors |
Fans |
Heater |
Color optional |
|
15000(L)*4000(W)*4000(H) |
4 sets |
3 sets |
4 |
1 set |
Blue,white,red |
|
Controlling box |
1 |
Spray/baking switch,light switch,breakdown alarm,emergency stop etc. |
||||
Painting room
Outside(mm) L*W*H |
Booth inside (mm) |
Working door (mm) |
Personnel Door(mm) |
5000*4000*4000(H) |
4850(L)*3850(W)*3925(H) |
3500(H)*3500(W) |
2000(H)*800(W) |
Cabin system |
Rock wool steel skin panel,75mm thick,steel 0.4mm thick,tongue groove style,compound construction,anti-flame and heat-insulation.There is one lifter on each side. |
|
Circulation system |
intake fan |
1 sets of centrifugal fans,explosion-proof,7.5kw,air capacity is 20000m3/h |
exhaust fan |
1 sets of centrifugal fans, explosion-proof ,7.5kw,air capacity is 20000m3/h |
|
Purification system |
600G high efficiency filter on the celling, activated charcoal filter. |
|
Lighting system |
4x4 tubes (36w lamps) on the celling, 4x4 tubes (36w lamps) on the wall, explosion-proof. |
|
Flowing room
Outside(mm)L*W*H |
inside(mm)L*W*H |
Working door (mm) |
Personnel Door(mm) |
4000*4000*4000 |
3850(L)*3850(W)*3925(H) |
3500(H)*3500(W) |
2000(H)*800(W) |
Cabin system |
Rock wool steel skin panel,75mm thick,steel 0.4mm thick,tongue groove style,compound construction,anti-flame and heat-insulation. |
Circulation system |
1 set of intake fan, explosion-proof,1.5kw. |
Purification system |
600G high efficiency filter on the celling. |
Lighting system |
2x4 tubes (36w lamps) on the ceiling, explosion-proof.
|
Drying room
|
Booth outside (mm) |
Booth inside (mm) |
Working door (mm) |
Personnel Door(mm) |
4000(L)*4000(W)*4000(H) |
3850(L)*3850(W)*3925(H) |
3500(H)*3500(W) |
2000(H)*800(W) |
Cabin system |
Wallboard |
Rock wool steel skin panel,75mm thick,steel 0.4mm thick,tongue groove style,compound construction,anti-flame and heat-insulation. |
|
Circulation system |
intake fan |
1 sets of intake fans, explosion-proof,1.5kw each. |
|
Purification system |
600G high efficiency filter on the celling. |
||
Heating system |
optional |
Oil heater:Italy Riello G20 Diesel Burner, 200000Kcal/h.Stainless steel heat exchanger ,argon arc welding. |
|
Carbon tube heater:30 pcs carbon tubes on the wall,1kw each pic,explosion-proof,service time≥6000hours.Stainless reflector. | |||
Lighting system |
2x4 tubes (36w lamps) on the ceiling, explosion-proof.
|
||
