Help CenterHigh Frequency Automatic XRF Fusion Machine 4 Position
Related Products
-
Electric XRF Fusion Furnace 6 PositionUS$ 20000 - 30000MOQ: 1 Set -
Tap Density Tester Powder Density MeterUS$ 1500 - 3000MOQ: 1 Set
-
Pellet Durability Index (PDI) Tester ISO 17831-1US$ 1500 - 2000MOQ: 1 Set
-
Optical Table Air Cushion TypeUS$ 1000 - 2000MOQ: 1 Piece
-
Light Precision Optical TableUS$ 1000 - 2000MOQ: 1 Piece

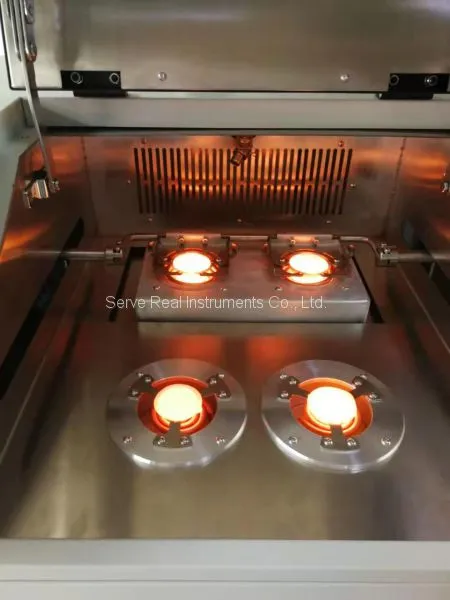

The high frequency XRF fusion machine is used together with X-ray fluorescence spectrum analyzer. It’s a specialized sample
preparation equipment for XRF analysis, it also can be used for
sample preparation for Atomic Absorption Spectroscopy(AAS)
and Inductively coupled plasma (ICP) analysis.
Technical specifications
Power supply |
AC220V/50Hz |
Max output power |
2×4KW |
Oscillation frequency range |
50KHz-80KHz |
Current regulation range |
35A-130A |
Timing range |
0s-999s |
Cooling water pressure |
0.1-0.3MPa |
Program number |
10 |
Forming mode |
Automatic casting |
Maximum temperature |
1500℃ |
Infrared temperature measure range |
400℃-1200℃ |
Temperature accuracy |
≤±1℃ |
Machine size |
1160×620×680mm |
Machine net weight |
192KG |
Water tank size |
L800×W540×H960mm |
Features
Fast temperature rise: only 30s after start can rise to 1000 ℃,
10 min can make 1 batch sample
Equipped with fan to exhaust gas, no large area high
temperature thermal radiation, less effect to operation
environment, little magnetic radiation due to small working power,
max work efficiency 80khz.
Less crucible breakage rate, good consistency of sample
Protection: water lack, over-current, over voltage, over temperature
Easy observation of fusion process through glass window
No preheat and thermal reservation, much more power saving
Less crucible in need with higher working efficiency
Infrared temperature measurement
No temperature drift, no wearable parts, modular design for easier maintenance
