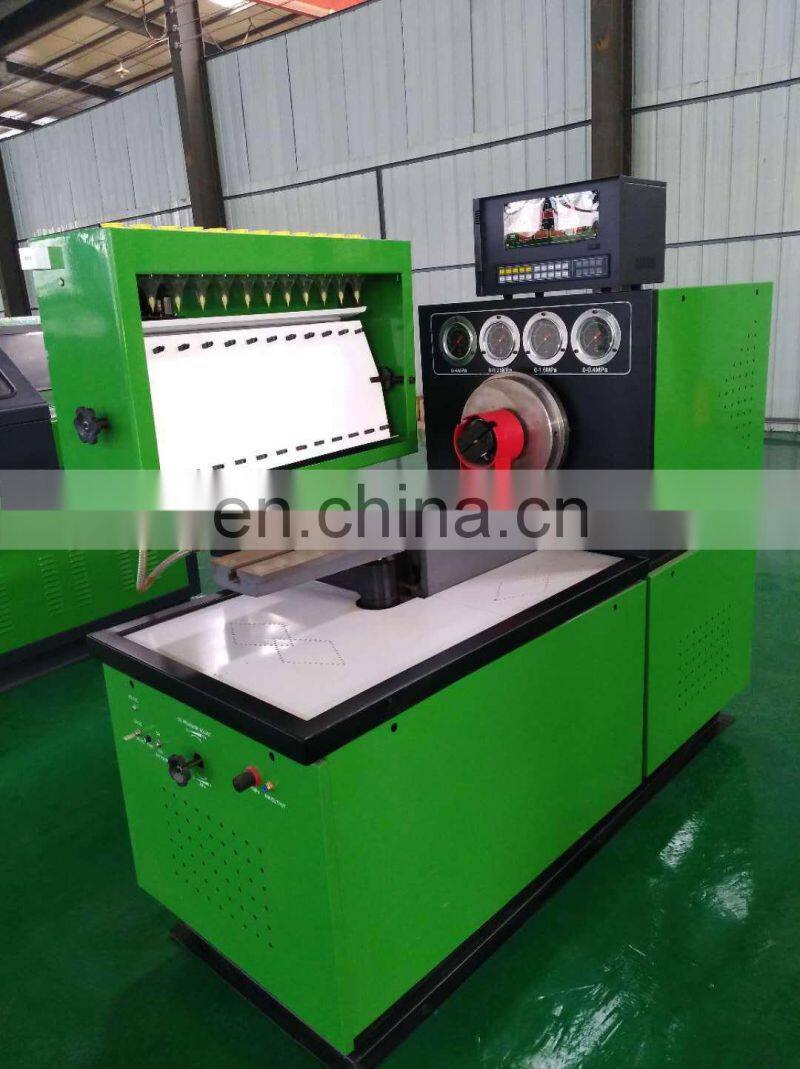

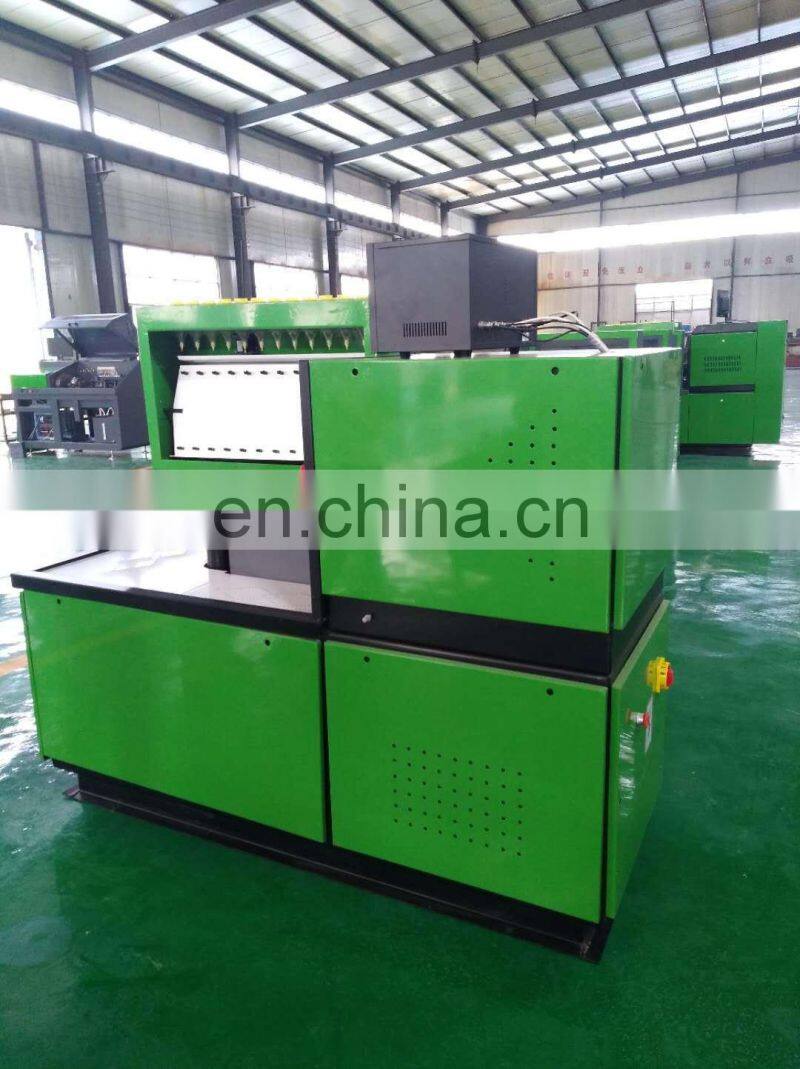

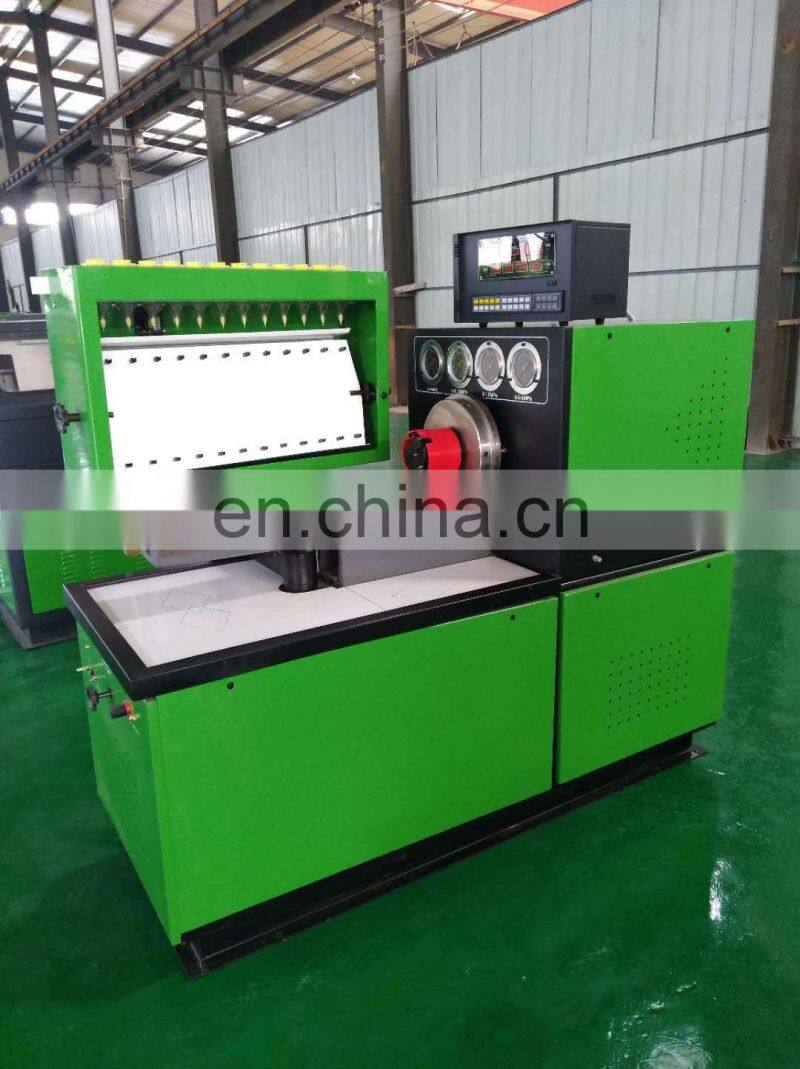

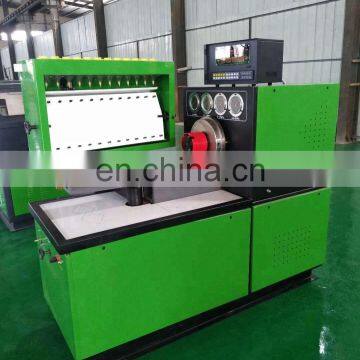

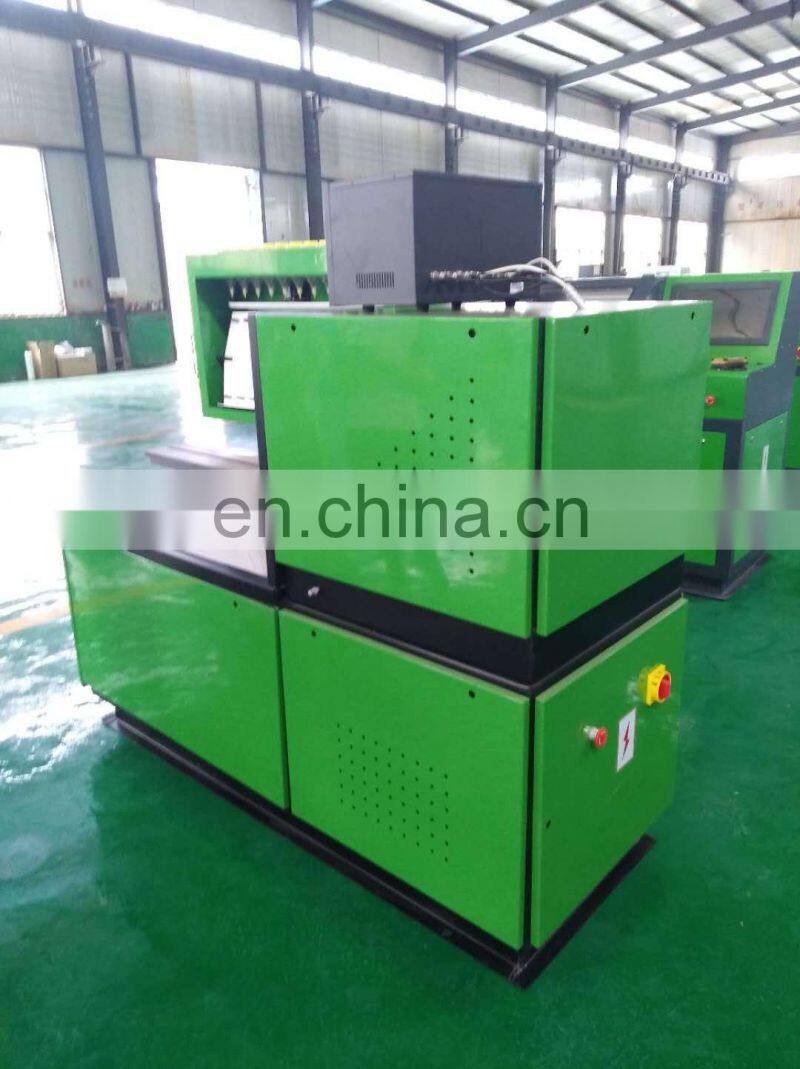

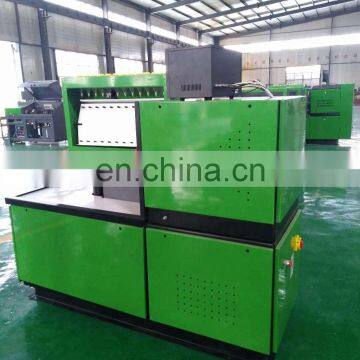

12PSB high pressure hydraulic pump test bench with high quality
Characteristics

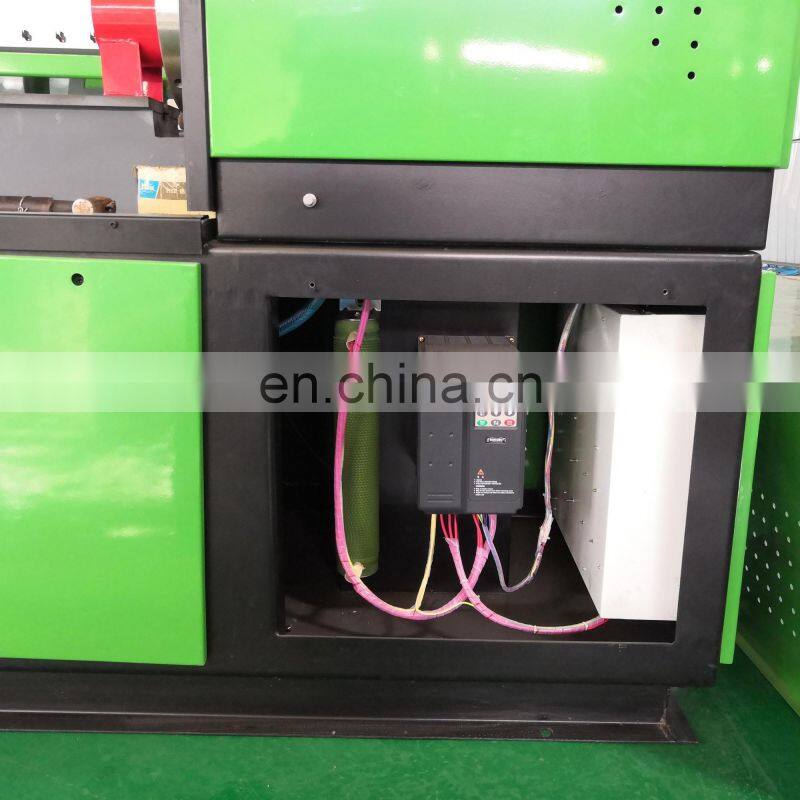

1.Variable frequency speed regulation;
2.Small deceleration and large output torque;
3.High measurement precision;
4.Overvoltage protection, overload protection and short-circuit protection;
5.Ten kinds of rotation speeds presetting;
6.Constant temperature control;
7.Ultra-low noise;
8.Two potentiometers respectively located at two sides of the bench, which is used for controlling speed without interfering;
9.Rotation speed, count and temperature are displayed in digit mode, and air pressure is displayed on the mechanical gauge;
10.Built-in air resource.
Function
1.Measuring each cylinder’s injected oil quantity at various rotation speeds;
2.Checking each cylinder’s injection time statically;
3.Checking the mechanical speed governor;
4.Checking the electromagnetic valve of distribution pumps;
5.Checking the pneumatic speed governor’s performance;
6.Checking the pressure compensator’s performance;
7.Measuring the returned oil quantity of distribution pumps;
8.Measuring the internal pressure of the distribution pump body;
9.Checking the pneumatic speed governor’ s vacuum performance;
10.Checking the sealing of fuel injection pump body.
Technical Parameters
1.Adjustable rotation speed range: |
0~4000RPM |
2.Double series of graduates: |
45cc and 1500cc (optional) |
3.Volume of oil tank: |
60L |
4.Temperature stabilization: |
40±2℃ |
5.Test oil filtering unit: |
5μ |
6.DC supply: |
12V/24V |
7.Fuel feed pressure: |
low: 0~0.4MPa, high: 0~4Mpa |
8.Air pressure: |
0~0.3MPa, -0.03~0Mpa |
9.3-phase power supply: |
380V/50Hz or according to requirements |
10.Flywheel inertia’s moment: |
0.8KG·M2 |
11.Center height: |
125MM |
12.Output power: |
7.5KW, 11KW, 15KW or according to requirements |
13.Overall dimensions(MM): |
2100*960*1840 or according to requirements |
14.Net weight(KG): |
950kg |
Taian Junhui is specializing in high pressure common rail test bench,fuel injection pump test bench, automobile engine cleaning machine & balancing machine. Our company is a modern technological company combing research,production, sale and service.Various"JunHui"brand products we produced have been widely used in auto servicing station, colleges and universities,war industry,oil field,railway industries,ect.,and have been exported to more than 10 countries and regions. Any question pls contact me.
