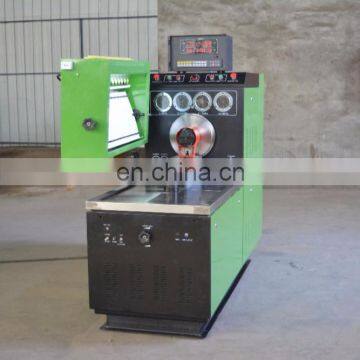

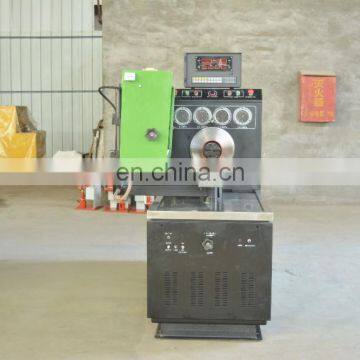

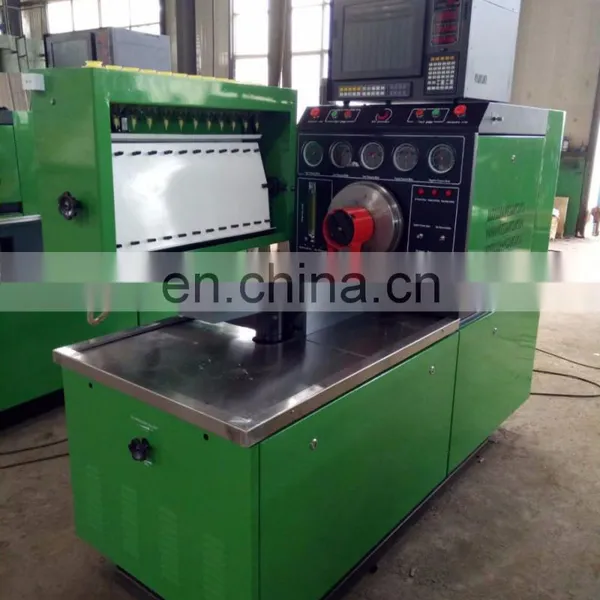

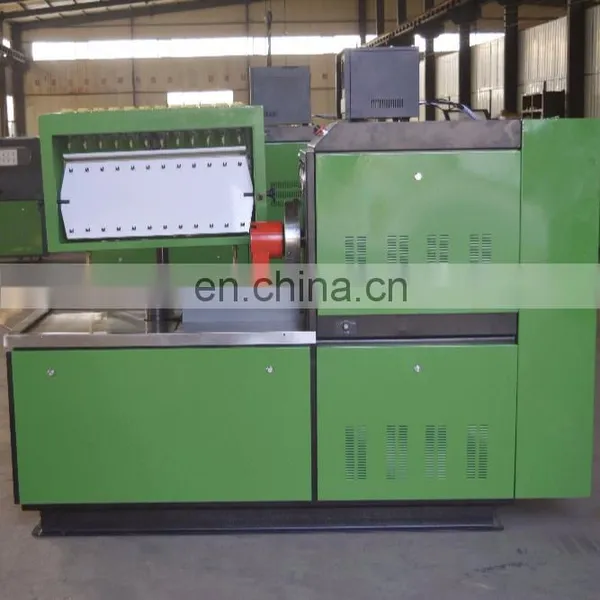

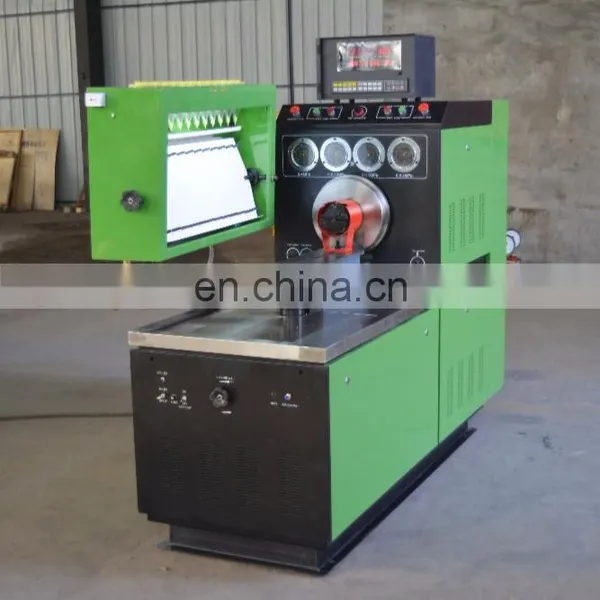

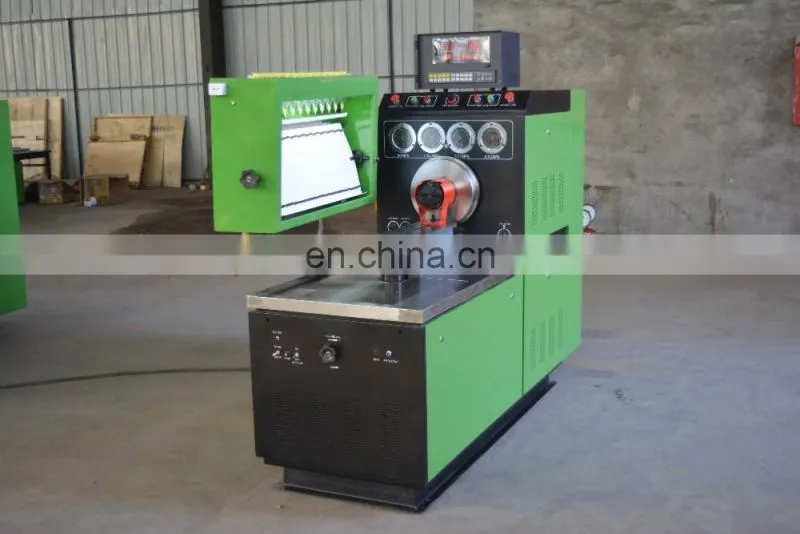

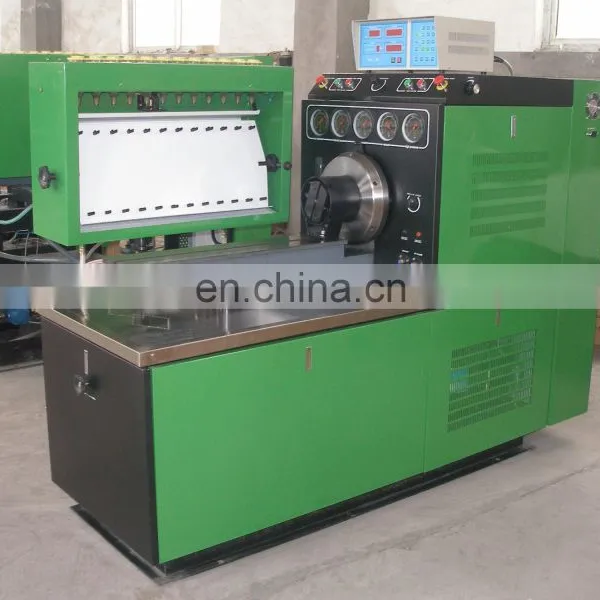

CE certificate Diesel Engine Injection Pump Performance Test Bed
Characteristics

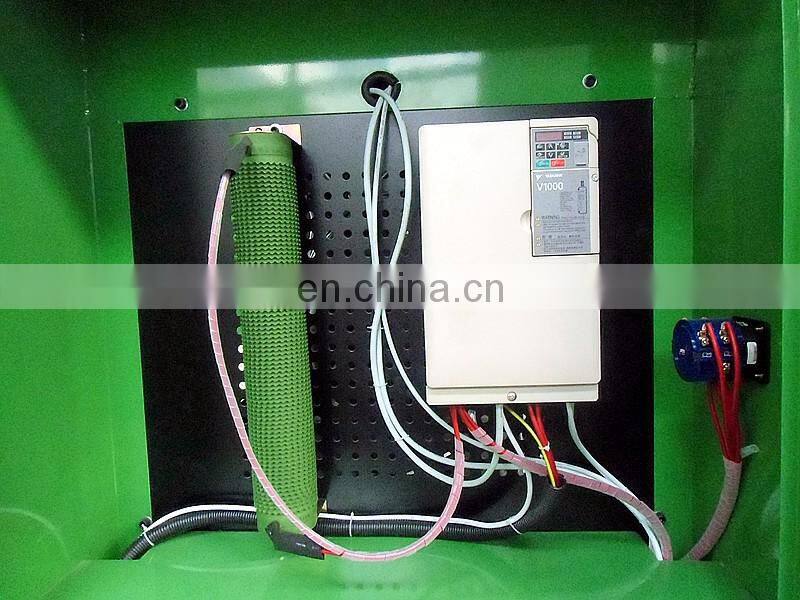

1. Variable frequency speed regulation;
2. Small deceleration and large output torque;
3. High measurement precision;
4. Overvoltage protection, overload protection and short-circuit protection;
5. Ten kinds of rotation speeds presetting;
6. Constant temperature control;
7. Ultra-low noise;
8. Two potentiometers respectively located at two sides of the bench, which is used for controlling speed without interfering;

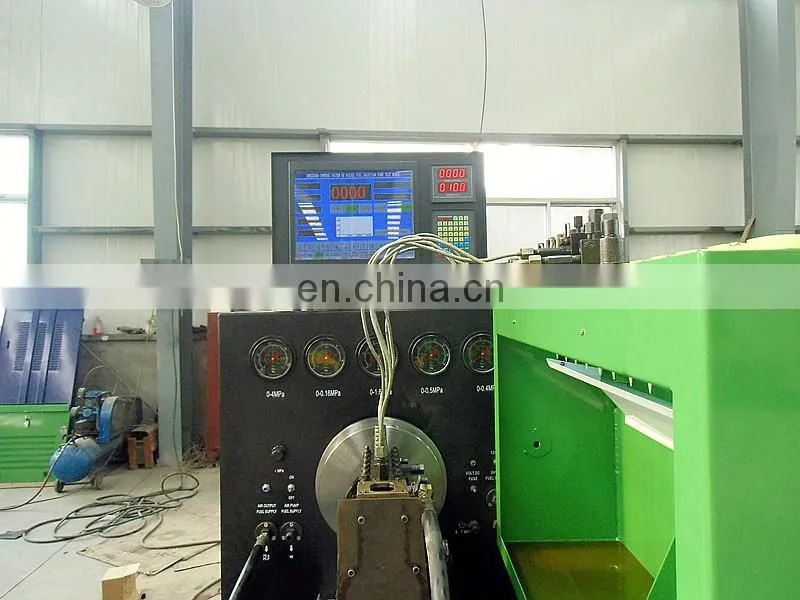

9. Rotation speed, count, temperature, air pressure, advance angle and rack travel are displayed on 15-inch LCD;
10. Built-in air resource.
Function
1. Measuring each cylinder’s injected oil quantity at various rotation speeds;
2. Checking each cylinder’s injection time statically;
3. Checking the mechanical speed governor;
4. Checking the electromagnetic valve of distribution pumps;
5. Checking the pneumatic speed governor’s performance;
6. Checking the pressure compensator’s performance;
7. Measuring the returned oil quantity of distribution pumps;
8. Measuring the internal pressure of the distribution pump body;
9. Checking the pneumatic speed governor’ s vacuum performance;
10. Measuring rack travel;
11. Measuring advance angle;
12. Checking the sealing of fuel injection pump body.
Technical Parameters
1. Adjustable rotation speed range |
0~4000RPM |
2. Double series of graduates |
45ml and 150ml (optional) |
3. Volume of oil tank |
60L |
4. Temperature stabilization |
40±2℃ |
5. Test oil filtering unit |
5μ |
6. DC supply |
12V/24V |
7. Fuel feed pressure |
low: 0~0.4MPa; high: 0~4Mpa |
8. Air pressure |
0~0.3MPa, -0.03~0Mpa |
9. 3-phase power supply |
380V/50Hz or according to requirements |
10. Flywheel inertia’s moment |
0.8KG·M2 |
11. Center height |
125mm |
12. Output power |
7.5KW, 11KW, 15KW or according to requirements |
13.Overall dimensions(mm) |
2360×960×1870 or according to requirements |
14. Net weight(Kg) |
1300kg |
